Material Options
Glass-fibre reinforced PA66 p6g for coil former elements, frames and housings; special materials available on request
Metal Core Transformer Geometry
M-EI-UI
Laminated Core Transformer Systems
Modular coil former elements, frames and housings for M, EI and UI laminated core transformer applications with separated primary and secondary winding concepts.
Product Family
Family Overview.
M-EI-UI is part of NORWE's product system for demanding electrical and electronic applications. The family combines proven core geometry compatibility with reliable manufacturing, material expertise and application-specific configuration options.
Laminated Core TransformersProtection Class TransformersIndustrial TransformersPower Transformers50/60 Hz Transformer Applications
Family Technical Data
Technical Foundation.
The product family is defined by material options, thermal behavior, insulation requirements and manufacturing features that support reliable long-term performance.
RTI Performance
PA66 p6g with RTI +125°C
Soldering Resistance
Maximum soldering temperature up to +350°C for short-term exposure up to 2 seconds for versions with solder pins or solder blades
Pin & Blade Materials
Tin bronze, tin-plated solder pins or brass, tin-plated solder blades depending on configuration
Design System
M, EJ and UJ coil former elements with frames and housing systems for protection class designs A, B and C
Special Materials
Radiation cross-linked materials and special executions are available on request
Product Groups
Select A Product Group.
Choose a product group to access verified NORWE types, order codes, technical product visuals and article-specific request actions.
01

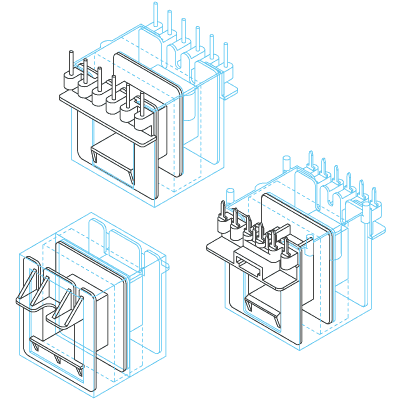

M 42 - M 102b Coil Former Elements
M Coil Former Elements
Modular M coil former elements for laminated core transformer applications with separated winding areas and flexible connection concepts.
Core Range: M 42 - M 102bDesign: Modular coil former elementsMaterials: PA66 p6g
02

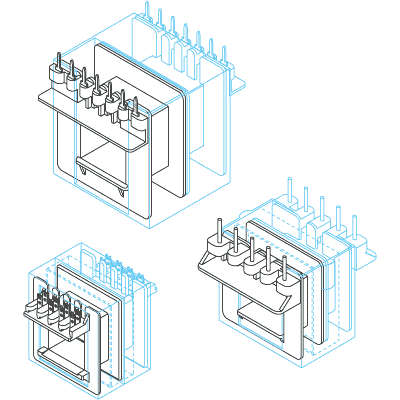

EJ 38 - EJ 96b Coil Former Elements
EJ Coil Former Elements
EJ coil former elements for protection class transformer applications with separated primary and secondary winding sections.
Core Range: EJ 38 - EJ 96bDesign: Protection class coil former elementsMaterials: PA66 p6g
03

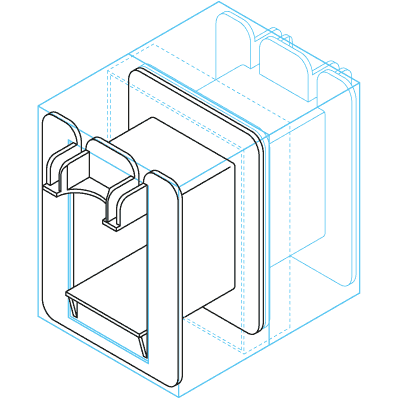

UJ 48 Coil Former Elements
UJ Coil Former Elements
UJ coil former elements for laminated core transformer systems with separated winding areas and modular assembly concepts.
Core Range: UJ 48Design: UJ coil former elementsMaterials: PA66 p6g
04

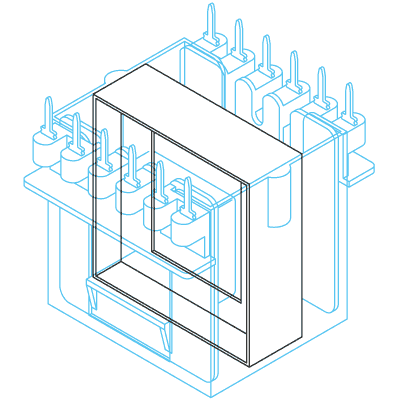

Frames r For M, EJ And UJ Elements
Frame / Protection Class Component
Frames r for M, EJ and UJ coil former elements supporting creepage and clearance distance requirements between primary and secondary windings.
Function: Frame for insulation and system assemblyApplication: Protection class designs A and CMaterials: PA66 p6g
05

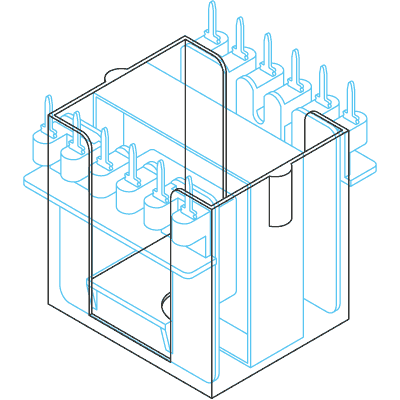

Housing i For M, EJ And UJ Elements
Housing / Protection Class Component
Housing i for M, EJ and UJ coil former systems supporting creepage and clearance distances and fixation of coil former elements and frames.
Function: Housing for insulation and fixationApplication: Protection class design AMaterials: PA66 p6g
06

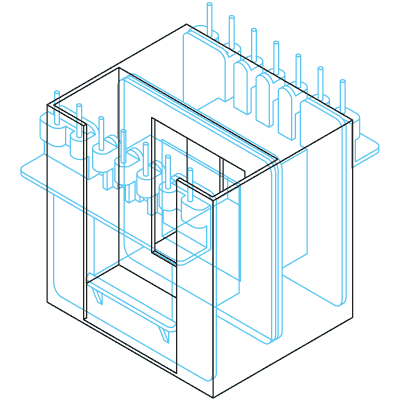

Housing d For M And EJ Elements
Housing / Protection Class Component
Housing d for M and EJ coil former elements where coil former elements are inserted from two sides.
Function: Two-sided housing systemApplication: Protection class design BMaterials: PA66 p6g
07

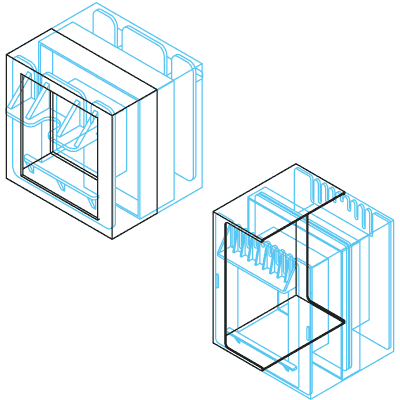

Housing g / Housing c For M, EJ And UJ Elements
Housing Elements / Protection Class Component
Housing elements g for M, EJ and UJ systems and housing elements c for M systems in protection class design C.
Function: Housing elements for design CApplication: Protection class design CMaterials: PA66 p6g
Advantages
Product Advantages.
Modular system for M, EJ and UJ laminated core transformer designs
Separate primary and secondary winding areas possible
Different housing concepts for protection class designs
Supports alternative connection technologies
Frames and housings support creepage and clearance distance requirements
Requirements
Technical Requirements.
Separated Windings
Creepage And Clearance Distance
Reliable Insulation
Mechanical Fixation
Transformer Safety Concepts
Engineering Features
Designed For Reliable Manufacturing.
Every product detail supports reliable winding, assembly, insulation and long-term production stability.
01
M, EJ and UJ coil former elements are organized by construction size and system design
02
Primary and secondary winding areas can be wound in separate process steps
03
Different connection technologies can be realized depending on component shape
04
Protection class designs A, B and C use specific combinations of coil former elements, frames and housings
05
Frames r support creepage and clearance distance requirements between primary and secondary windings
06
Housing systems support fixation and insulation between windings and laminated core
07
Special materials and customer-specific executions are available on request
Materials
Engineered Materials.
Material selection supports electrical insulation, thermal stability and long-term reliability in demanding industrial applications.
PA66 p6g / RTI +125°CRadiation cross-linked materials on request
Material access
Standard materials, UL data and application-specific support.
Review NORWE standard plastic materials and UL-related data, or discuss alternative materials for specific thermal, electrical, processing or compliance requirements.
Technical Capabilities
Verified Technical Performance.
The product family is engineered around material performance, soldering resistance, connection technology and reliable processing.
01
Glass-fibre reinforced PA66 p6g with RTI +125°C for coil former elements, frames and housings
02
Tin bronze, tin-plated solder pins depending on configuration
03
Brass, tin-plated solder blades depending on configuration
04
Maximum soldering temperature up to +350°C for up to 2 seconds for solderable variants
05
Dimensions available in millimetres and inches depending on variant
06
Radiation cross-linked materials and special executions available on request
07
System components support protection class designs A, B and C
Downloads & Drawings
Technical Documents Without Friction.
Technical documentation is connected to the product structure at article level. Current released drawings are supplied through NORWE with the exact product context preserved for engineering and procurement workflows.
Technical Resource
Technical Data
Open the central document center for released technical and compliance documentation.
Open document center→
Technical Resource
Drawing Information
Select a product group and article to access released article-specific technical drawings directly.
Open product groups→
Technical Resource
Application Support
Clarify product suitability, material questions and production-related requirements with NORWE.
Request application support→
Technical Resource
Quote Preparation
Move from technical interest to quotation preparation with product and project context already included.
Request Quote→
Product documentation
Ordering Information
Family-specific ordering guidance for complex configurations, assembly options and order-code interpretation.
Open article ordering data →Product documentation
Supplementary Product Information
Additional technical information for this product family and its article variants.
Request current Supplementary Product Information →Downloads & Drawings
80 released drawings available directly through the articles.
Select the matching product group and article. Released drawings can then be opened directly without submitting a request.
Existing Resource Categories
M-EI-UI Ordering ExampleM-EI-UI Product InformationProtection Class Design A ExplanationProtection Class Design B ExplanationProtection Class Design C ExplanationSolder Pin And Solder Blade OverviewNORWE Thermoclip InformationLaminated CoresPlastic Material ListRadiation Cross-Linking
Technical FAQ
Frequently Asked Questions.
M-EI-UI is a modular system of coil former elements, frames and housings for laminated core transformer applications. It supports M, EJ and UJ geometries and protection class transformer designs.
Frames and housings support creepage and clearance distance requirements, mechanical fixation and insulation between primary and secondary windings and between windings and laminated cores.
Protection class designs A, B and C describe different system configurations using coil former elements, frames and housings to meet insulation, creepage and clearance requirements.
The components are typically made from glass-fibre reinforced PA66 p6g with RTI +125°C. Special materials such as radiation cross-linked versions are available on request.
Depending on configuration, solderable M-EI-UI components can support short-term soldering temperatures up to +350°C for up to 2 seconds.
Yes. The modular construction allows primary and secondary areas to be wound in separate process steps depending on the selected component system.
