Series
EQ 13 to EQ 30
EQ 13 to EQ 30
EQ

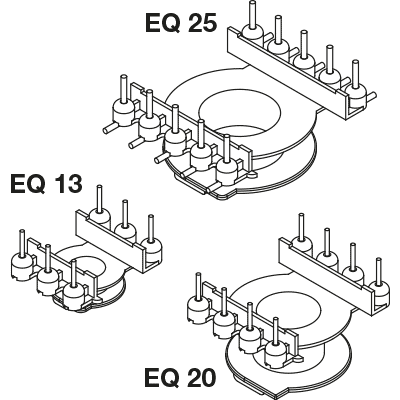

Vertical-Axis Coil Formers with Solder Pins
EQ 13 to EQ 30 coil formers with solder pins for compact PCB assemblies. The series is designed around a vertical magnetic axis, dual-in-line solder pins and suitability for numerically controlled winding machines.
Product Family
Family Overview.
EQ is part of NORWE's product system for demanding electrical and electronic applications. The family combines proven core geometry compatibility with reliable manufacturing, material expertise and application-specific configuration options.
PCB AssembliesNumerically Controlled Winding Machines
Family Technical Data
Technical Foundation.
The product family is defined by material options, thermal behavior, insulation requirements and manufacturing features that support reliable long-term performance.
Magnetic Axis
Vertical
Winding
Suitable for numerically controlled winding machines; axial wire binding
Pin Arrangement
Dual-in-line
Material
Glass-fibre reinforced PET rtg natural
RTI
+155°C
Solder Pin Material
Tin bronze, tinned
Maximum Solder Temperature
350°C for up to 2 seconds
Product Groups
Select A Product Group.
Choose a product group to access verified NORWE types, order codes, technical product visuals and article-specific request actions.
Advantages
Product Advantages.
High power output with low weight and volume requirements
Small PCB footprint through vertical magnetic axis
Axial wire binding
Plastic stand-offs help avoid cold-solder joints at covered PCB holes
Two solder-pin fitting variants available
Requirements
Technical Requirements.
Vertical Magnetic Axis
Dual-In-Line Solder Pins
Axial Wire Binding
PCB Mounting
Engineering Features
Designed For Reliable Manufacturing.
Every product detail supports reliable winding, assembly, insulation and long-term production stability.
01
Vertical magnetic axis reduces PCB area requirement
02
Suitable for numerically controlled winding machines
03
Dual-in-line solder-pin rows
04
Axial wire binding
05
Plastic stand-offs support reliable soldering at PCB mounting points
06
Two solder-pin fitting variants are documented
Materials
Engineered Materials.
Material selection supports electrical insulation, thermal stability and long-term reliability in demanding industrial applications.
Glass-fibre reinforced PET rtg natural / RTI +155°CTin bronze solder pins, tinnedSpecial materials such as radiation cross-linked variants on request
Material access
Standard materials, UL data and application-specific support.
Review NORWE standard plastic materials and UL-related data, or discuss alternative materials for specific thermal, electrical, processing or compliance requirements.
Technical Capabilities
Verified Technical Performance.
The product family is engineered around material performance, soldering resistance, connection technology and reliable processing.
01
Glass-fibre reinforced PET rtg natural with RTI +155°C
02
Tinned tin-bronze solder pins
03
Maximum solder temperature 350°C for up to 2 seconds
04
Special materials and special designs available on request
Downloads & Drawings
Technical Documents Without Friction.
Technical documentation is connected to the product structure at article level. Current released drawings are supplied through NORWE with the exact product context preserved for engineering and procurement workflows.
Technical Resource
Technical Data
Open the central document center for released technical and compliance documentation.
Open document center→
Technical Resource
Drawing Information
Select a product group and article to access released article-specific technical drawings directly.
Open product groups→
Technical Resource
Application Support
Clarify product suitability, material questions and production-related requirements with NORWE.
Request application support→
Technical Resource
Quote Preparation
Move from technical interest to quotation preparation with product and project context already included.
Request Quote→
Product documentation
Ordering Information
Family-specific ordering guidance for complex configurations, assembly options and order-code interpretation.
Open article ordering data →Product documentation
Supplementary Product Information
Additional technical information for this product family and its article variants.
Request current Supplementary Product Information →Downloads & Drawings
1 released drawings available directly through the articles.
Select the matching product group and article. Released drawings can then be opened directly without submitting a request.
Inquiry Engine
Move From Product Interest To Engineering Clarity.
Start with EQ. NORWE can support your team with technical documents, sample requirements, quotation preparation and application-specific engineering questions.
Discuss Your Application.
Talk to NORWE about EQ components, technical requirements and application-specific solutions.
