Material Options
PA66 p6g for standard U coil formers and PA66 A RV250 natural for U 25 universal coil formers; special materials available on request
U-Core Geometry
U
Power & Pulse Transformer Applications
Coil formers and clamping brackets for U ferrite core transformers, power transformers, pulse transformers and high-voltage applications.
Product Family
Family Overview.
U is part of NORWE's product system for demanding electrical and electronic applications. The family combines proven core geometry compatibility with reliable manufacturing, material expertise and application-specific configuration options.
Power TransformersPulse TransformersHigh-Voltage ApplicationsLine TransformersIndustrial Power Electronics
Family Technical Data
Technical Foundation.
The product family is defined by material options, thermal behavior, insulation requirements and manufacturing features that support reliable long-term performance.
RTI Performance
PA66 p6g with RTI +125°C and PA66 A RV250 natural with RTI +100°C depending on variant
Soldering Resistance
Maximum soldering temperature up to +350°C for short-term exposure up to 2 seconds
Pin Materials
Tin bronze, tin-plated solder pins
Design System
U standard coil formers, U 25 universal coil formers with m-, h- or z-solder pins and SB-U steel clamping brackets
Special Materials
Radiation cross-linked thermoplastic materials are recommended for high-temperature soldering processes and available on request
Product Groups
Select A Product Group.
Choose a product group to access verified NORWE types, order codes, technical product visuals and article-specific request actions.
01

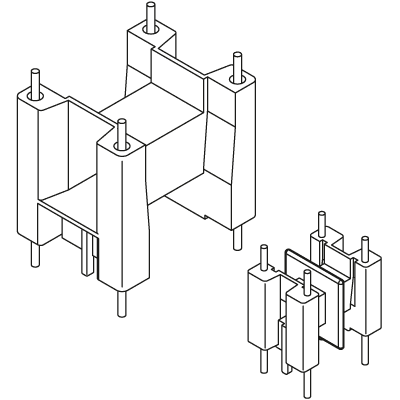

U 10 - U 20 Standard Coil Formers
U Standard Coil Formers
Standard U coil formers for U ferrite core transformers, power transformers and pulse transformer applications.
Core Range: U 10 - U 20Design: Standard U coil formerMaterials: PA66 p6g
02

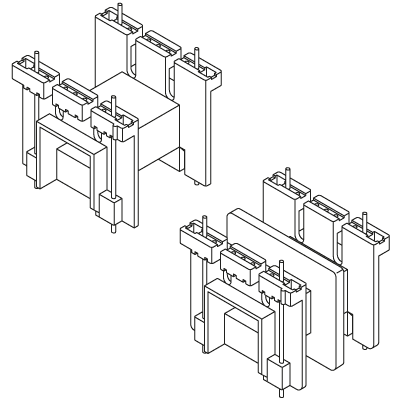

U 25 Universal Coil Formers With m-Solder Pins
U 25 Universal Coil Formers
U 25 universal coil formers with m-solder pins for two-sided contacting and mechanically stable PCB assembly.
Core Range: U 25Pin Type: m-solder pinsMaterials: PA66 A RV250 natural
03

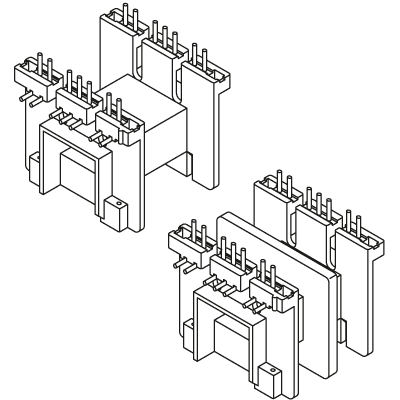

U 25 Universal Coil Formers With h- or z-Solder Pins
U 25 Universal Coil Formers
U 25 universal coil formers with h- or z-solder pins for radial winding or space-saving PCB installation.
Core Range: U 25Pin Type: h-solder pins or z-solder pinsMaterials: PA66 A RV250 natural
04

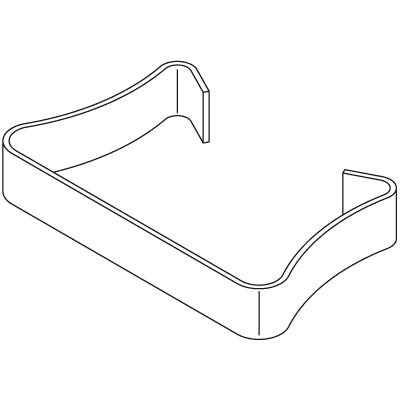

SB-U Clamping Brackets
Assembly Component
Steel SB-U clamping brackets for connecting U ferrite core halves with stable pressure over operating temperature changes.
Function: Mechanical clamping of U ferrite core halvesApplication: U core transformer assembliesMaterial: Steel
Advantages
Product Advantages.
Standard U coil formers for U 10 to U 20
Universal U 25 versions with different solder pin concepts
Two-sided contacting through continuous round pins
Spacer ribs help prevent blind soldering on the PCB
Steel clamping brackets for secure ferrite core fixation
Requirements
Technical Requirements.
High Power
Pulse Transformer Design
Reliable PCB Contacting
Mechanical Fixation
Thermal Processing Stability
Engineering Features
Designed For Reliable Manufacturing.
Every product detail supports reliable winding, assembly, insulation and long-term production stability.
01
U ferrite core transformers are suitable for power transformers, pulse transformers and high-voltage devices
02
Standard U coil formers use hidden continuous round pins for two-sided contacting
03
U 25 universal versions use open continuous round pins for two-sided contacting
04
h-pin versions support radial winding of thin wires and strands
05
z-pin versions support space-saving PCB installation
06
Spacer ribs provide stable PCB support and help prevent blind soldering caused by covered PCB holes
07
Mounting holes support additional fixation with self-tapping sheet metal screws
08
Modular tooling concepts support fast customer-specific adaptations
Materials
Engineered Materials.
Material selection supports electrical insulation, thermal stability and long-term reliability in demanding industrial applications.
PA66 p6g / RTI +125°CPA66 A RV250 natural / RTI +100°CRadiation cross-linked materials on request
Material access
Standard materials, UL data and application-specific support.
Review NORWE standard plastic materials and UL-related data, or discuss alternative materials for specific thermal, electrical, processing or compliance requirements.
Technical Capabilities
Verified Technical Performance.
The product family is engineered around material performance, soldering resistance, connection technology and reliable processing.
01
PA66 p6g with RTI +125°C for U standard coil formers
02
PA66 A RV250 natural with RTI +100°C for U 25 universal coil formers
03
Maximum soldering temperature up to +350°C for up to 2 seconds
04
Tin bronze, tin-plated solder pins
05
Steel SB-U clamping brackets for U ferrite core fixation
06
Dimensions available in millimetres and inches depending on variant
07
Radiation cross-linked materials and special executions available on request
Downloads & Drawings
Technical Documents Without Friction.
Technical documentation is connected to the product structure at article level. Current released drawings are supplied through NORWE with the exact product context preserved for engineering and procurement workflows.
Technical Resource
Technical Data
Open the central document center for released technical and compliance documentation.
Open document center→
Technical Resource
Drawing Information
Select a product group and article to access released article-specific technical drawings directly.
Open product groups→
Technical Resource
Application Support
Clarify product suitability, material questions and production-related requirements with NORWE.
Request application support→
Technical Resource
Quote Preparation
Move from technical interest to quotation preparation with product and project context already included.
Request Quote→
Product documentation
Ordering Information
Family-specific ordering guidance for complex configurations, assembly options and order-code interpretation.
Open article ordering data →Product documentation
Supplementary Product Information
Additional technical information for this product family and its article variants.
Request current Supplementary Product Information →Downloads & Drawings
6 released drawings available directly through the articles.
Select the matching product group and article. Released drawings can then be opened directly without submitting a request.
Existing Resource Categories
U Ordering ExampleU Product InformationSolder Pin Overview For U Coil FormersU Ferrite CoresPlastic Material ListRadiation Cross-Linking
Technical FAQ
Frequently Asked Questions.
U coil formers are winding bodies for U ferrite core transformer applications. They are especially suitable for power transformers, pulse transformers and high-voltage applications.
U standard coil formers cover U 10 to U 20 and use hidden continuous round pins. U 25 universal coil formers use open continuous round pins and are available with m-, h- or z-solder pin concepts.
h-solder pins are used for radial winding of thin wires and strands. z-solder pins support space-saving installation on the printed circuit board.
Standard U coil formers use glass-fibre reinforced PA66 p6g with RTI +125°C. U 25 universal coil formers use PA66 A RV250 natural with RTI +100°C.
SB-U clamping brackets are steel components used to connect U ferrite core halves. One clamping bracket is required per core set and coil former.
Depending on configuration, U coil formers support short-term soldering temperatures up to +350°C for up to 2 seconds.
