Core Range
U 10 - U 20
U Product Group
U 10 - U 20 Standard Coil Formers
U Standard Coil Formers
Standard U coil formers for U ferrite core transformers, power transformers and pulse transformer applications.
Technical Group Data
Group Characteristics.
Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.
Design
Standard U coil former
Materials
PA66 p6g
RTI
+125°C
Pin System
Continuous round tin bronze, tin-plated solder pins
Soldering Resistance
+350°C up to 2 seconds
Application
Power transformers, pulse transformers and high-voltage applications
Benefit
Hidden continuous round pins allow two-sided contacting, while wire guides, anti-mismatch pins and spacer ribs support reliable PCB assembly
Article Level
Available NORWE Types.
Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.
PreviewNORWE TypeOrder CodeStatusResources
NORWE Type

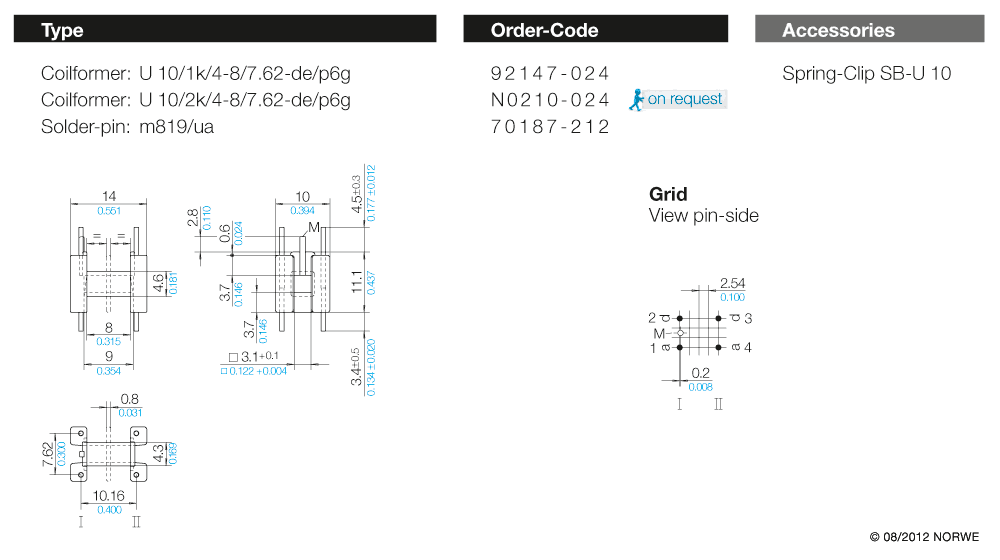

U 10/1k/4-8/7,62-de/p6gOrder Code
92147-024Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type
U 10/2k/4-8/7,62-de/p6gOrder Code
N0210-024Status
on requestResources
2 downloads available
Article-level resource view
NORWE Type

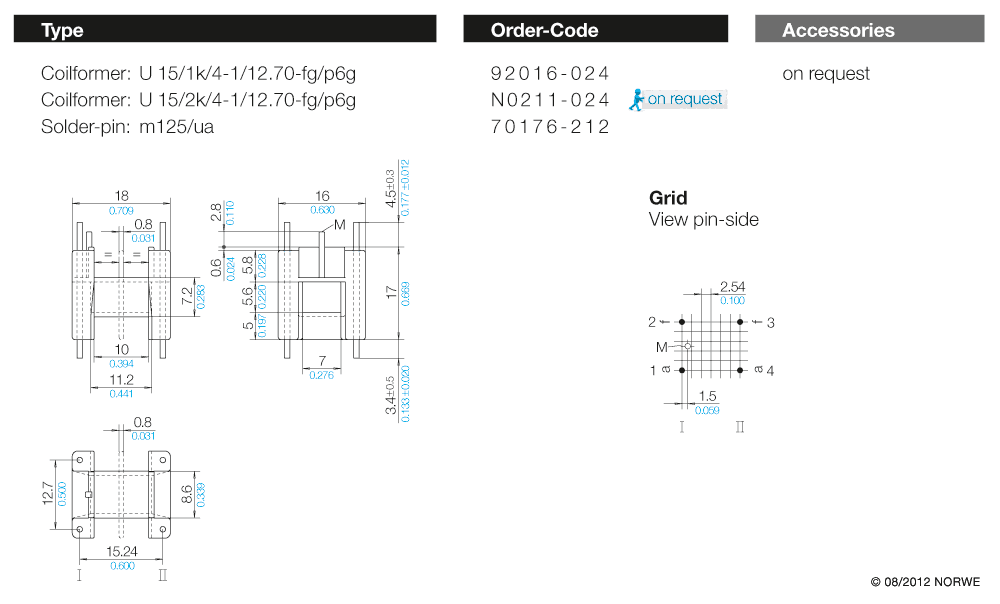

U 15/1k/4-1/12,70-fg/p6gOrder Code
92016-024Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type
U 15/2k/4-1/12,70-fg/p6gOrder Code
N0211-024Status
on requestResources
2 downloads available
Article-level resource view
NORWE Type

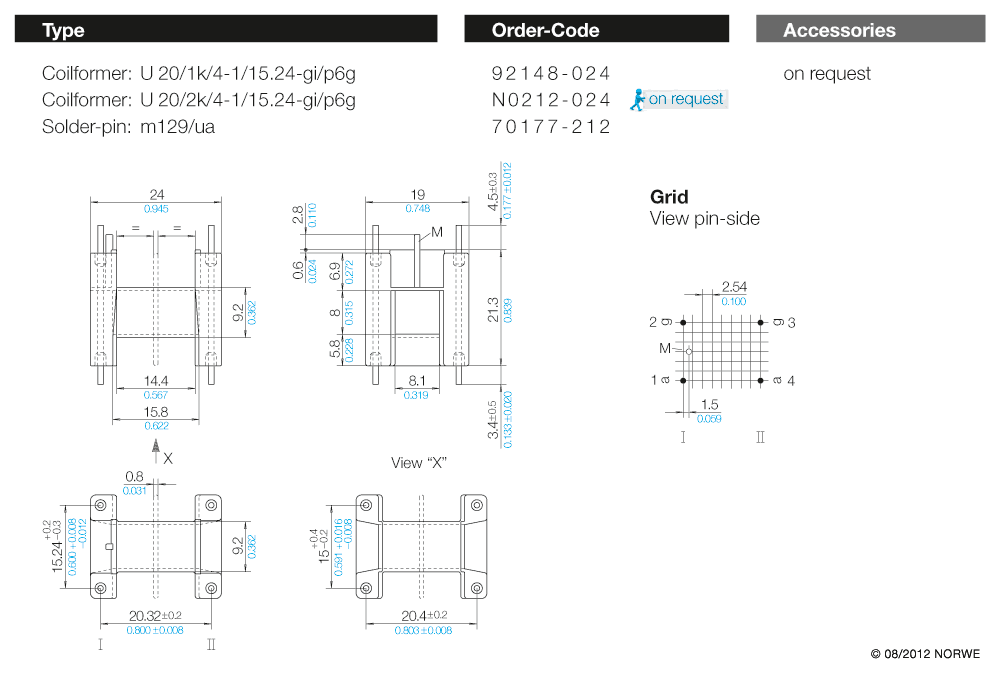

U 20/1k/4-1/15,24-gi/p6gOrder Code
92148-024Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type
U 20/2k/4-1/15,24-gi/p6gOrder Code
N0212-024Status
on requestResources
2 downloads available
Article-level resource view
