Material Options
PA66 p6g, PA66 A RV250 natural, PET SKYT.5220FR and special materials on request depending on variant
Efficient Core Geometry
EC
High Power Density
Coil formers and system components for DC/DC converters, switch-mode power supplies, pulse transformers and transductor applications.
Product Family
Family Overview.
EC is part of NORWE's product system for demanding electrical and electronic applications. The family combines proven core geometry compatibility with reliable manufacturing, material expertise and application-specific configuration options.
DC/DC ConvertersSwitch-Mode Power SuppliesPulse TransformersTransductorsPower Electronics
Family Technical Data
Technical Foundation.
The product family is defined by material options, thermal behavior, insulation requirements and manufacturing features that support reliable long-term performance.
RTI Performance
PA66 p6g with RTI +125°C, PA66 A RV250 natural with RTI +100°C and PET SKYT.5220FR with RTI +155°C depending on variant
Soldering Resistance
Maximum soldering temperature up to +350°C for short-term exposure up to 2 seconds
Pin & Blade Materials
Tin bronze, tin-plated solder pins and brass, tin-plated solder blades depending on configuration
Design System
EC horizontal, EC vertical, EC/CO coil formers, distance rings DR and FK-EC spring clips
Special Materials
Radiation cross-linked thermoplastic materials are recommended for high-temperature soldering processes and available on request
Product Groups
Select A Product Group.
Choose a product group to access verified NORWE types, order codes, technical product visuals and article-specific request actions.
01

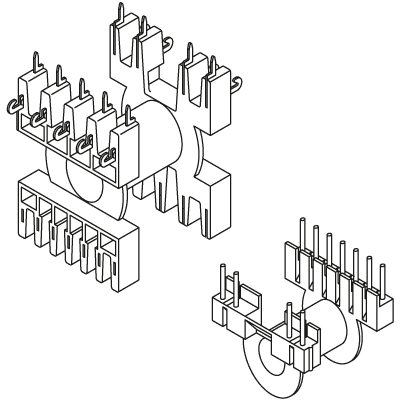

EC 35 - EC 70 Horizontal
EC Coil Formers
Horizontal EC coil formers.
Legacy Group: 005/A01Legacy Source: https://www.norwe.eu/products/de/005/A01
02

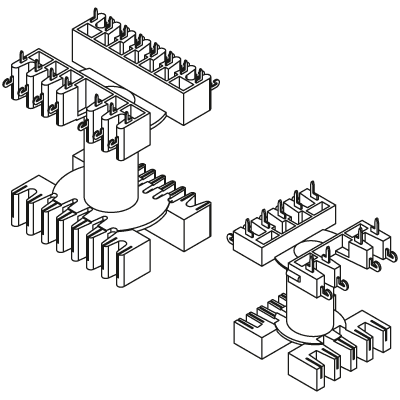

EC 41 - EC 70 Vertical
EC Coil Formers
Vertical EC coil formers.
Legacy Group: 005/B01Legacy Source: https://www.norwe.eu/products/de/005/B01
03

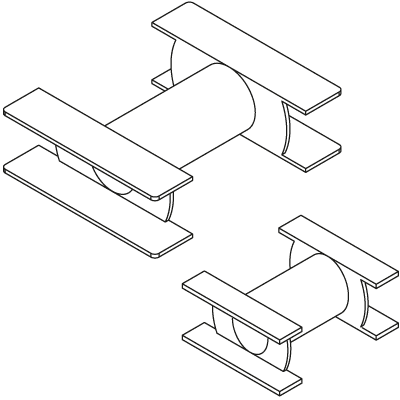

EC 35/CO - EC 120/CO
EC/CO Coil Formers
EC/CO coil formers.
Legacy Group: 005/C01Legacy Source: https://www.norwe.eu/products/de/005/C01
04

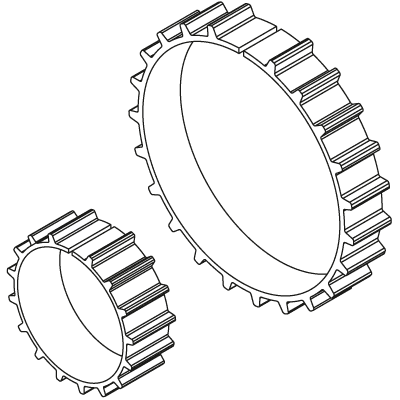

DR 12 - DR 27 Distance Rings
Distance Rings
Distance rings for creepage and clearance distances.
Legacy Group: 005/D01Legacy Source: https://www.norwe.eu/products/de/005/D01
05

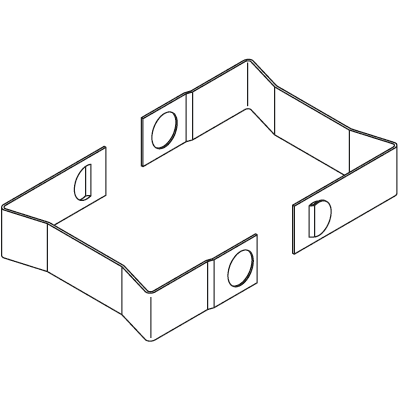

Spring Clips FK-EC
Spring Clips
Spring clips for EC core sets.
Legacy Group: 005/E01Legacy Source: https://www.norwe.eu/products/de/005/E01
Advantages
Product Advantages.
Horizontal and vertical EC versions available
EC/CO versions for flat wire and tape winding
Distance rings for protection class concepts
Spring clips for efficient EC core fixation
Special materials and executions available on request
Requirements
Technical Requirements.
High Power Density
Reliable Insulation
Automated Winding
Thermal Stability
Lead-Free Solder Compatibility
Engineering Features
Designed For Reliable Manufacturing.
Every product detail supports reliable winding, assembly, insulation and long-term production stability.
01
EC series components are used in DC/DC converters, switch-mode power supplies, pulse transformers and transductors
02
Horizontal EC coil formers are available with different pin diameters
03
EC solder blades are designed to help avoid blind soldering caused by covered PCB holes
04
Vertical EC solder blades enable side winding and soldering
05
EC/CO variants are especially suitable for flat wires, tapes and very low installation heights
06
Modular tooling concepts support fast customer-specific adaptations
Materials
Engineered Materials.
Material selection supports electrical insulation, thermal stability and long-term reliability in demanding industrial applications.
PA66 p6g / RTI +125°CPA66 A RV250 natural / RTI +100°CPET SKYT.5220FR / RTI +155°CRadiation cross-linked materials on request
Material access
Standard materials, UL data and application-specific support.
Review NORWE standard plastic materials and UL-related data, or discuss alternative materials for specific thermal, electrical, processing or compliance requirements.
Technical Capabilities
Verified Technical Performance.
The product family is engineered around material performance, soldering resistance, connection technology and reliable processing.
01
PA66 p6g with RTI +125°C for EC coil former variants
02
PA66 A RV250 natural with RTI +100°C for distance ring variants
03
PET SKYT.5220FR with RTI +155°C for selected distance ring variants
04
Maximum soldering temperature up to +350°C for up to 2 seconds
05
Tin bronze, tin-plated solder pins depending on configuration
06
Brass, tin-plated solder blades depending on configuration
07
Radiation cross-linked materials and special executions available on request
Downloads & Drawings
Technical Documents Without Friction.
Technical documentation is connected to the product structure at article level. Current released drawings are supplied through NORWE with the exact product context preserved for engineering and procurement workflows.
Technical Resource
Technical Data
Open the central document center for released technical and compliance documentation.
Open document center→
Technical Resource
Drawing Information
Select a product group and article to access released article-specific technical drawings directly.
Open product groups→
Technical Resource
Application Support
Clarify product suitability, material questions and production-related requirements with NORWE.
Request application support→
Technical Resource
Quote Preparation
Move from technical interest to quotation preparation with product and project context already included.
Request Quote→
Product documentation
Ordering Information
Family-specific ordering guidance for complex configurations, assembly options and order-code interpretation.
Open article ordering data →Product documentation
Supplementary Product Information
Additional technical information for this product family and its article variants.
Request current Supplementary Product Information →Downloads & Drawings
20 released drawings available directly through the articles.
Select the matching product group and article. Released drawings can then be opened directly without submitting a request.
Existing Resource Categories
EC Ordering ExampleEC Product InformationSolder Pin OverviewSolder Blade OverviewDistance Ring DescriptionEC Ferrite CoresPlastic Material ListRadiation Cross-Linking
Technical FAQ
Frequently Asked Questions.
EC coil formers are winding bodies for EC ferrite core geometries. They are used in DC/DC converters, switch-mode power supplies, pulse transformers and transductor applications.
Horizontal EC versions support horizontal assembly concepts and can be equipped with different pin systems. Vertical EC versions support upright assemblies and use EC solder blades for side winding and soldering.
EC/CO coil formers are especially suitable for winding with flat wires and tapes and for applications requiring very low installation heights.
EC coil formers typically use glass-fibre reinforced PA66 p6g with RTI +125°C. Distance rings may use PA66 A RV250 natural with RTI +100°C or PET SKYT.5220FR with RTI +155°C depending on variant.
Depending on configuration, EC coil formers can support short-term soldering temperatures up to +350°C for up to 2 seconds.
FK-EC spring clips are used to connect EC core halves in horizontal and vertical designs. Two clips are required per core set and coil former.
Industries
Related Industries.
NORWE supports applications across industries where quality, reliability and technical confidence matter.
Industrial ElectronicsEnergy SystemsIndustrial Automation
Inquiry Engine
Move From Product Interest To Engineering Clarity.
Start with EC. NORWE can support your team with technical documents, sample requirements, quotation preparation and application-specific engineering questions.
Discuss Your Application.
Talk to NORWE about EC components, technical requirements and application-specific solutions.
