Material Options
Glass-fibre reinforced PET rtg natural for EP coil formers; special materials and radiation cross-linked versions available on request
Enclosed Pot Core Geometry
EP
Low-Stray-Field Transformer Applications
Coil formers and clamping brackets for compact EP core transformer applications with high inductance, low stray fields and space-saving PCB integration.
Product Family
Family Overview.
EP is part of NORWE's product system for demanding electrical and electronic applications. The family combines proven core geometry compatibility with reliable manufacturing, material expertise and application-specific configuration options.
High-Inductance TransformersSignal TransformersLow-Stray-Field ApplicationsCompact PCB AssembliesTelecommunications
Family Technical Data
Technical Foundation.
The product family is defined by material options, thermal behavior, insulation requirements and manufacturing features that support reliable long-term performance.
RTI Performance
PET rtg natural with RTI +155°C
Soldering Resistance
Maximum soldering temperature up to +350°C for short-term exposure up to 2 seconds
Pin Materials
Tin bronze, tin-plated solder pins
Design System
EP coil formers with straight press-fit solder pins and SB-EP steel clamping brackets
Special Materials
Radiation cross-linked thermoplastic materials are recommended for high-temperature soldering processes and available on request
Product Groups
Select A Product Group.
Choose a product group to access verified NORWE types, order codes, technical product visuals and article-specific request actions.
01

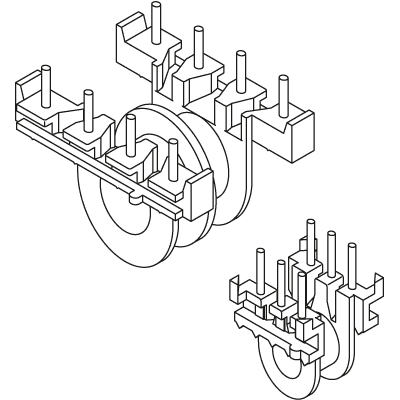

EP 7 - EP 20 Coil Formers With Solder Pins
EP Coil Formers With Solder Pins
EP coil formers with straight press-fit solder pins for compact transformer applications with high inductance and low stray fields.
Core Range: EP 7 - EP 20Connection: Straight press-fit solder pinsMaterials: PET rtg natural
02

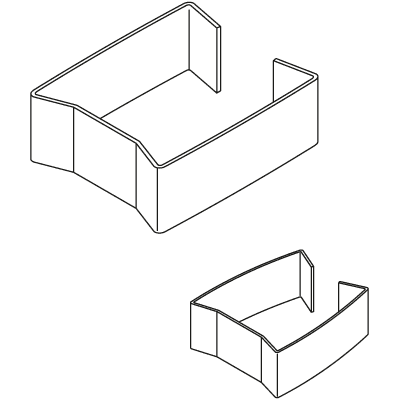

SB-EP 7 - SB-EP 20 Clamping Brackets
Assembly Component
Steel clamping brackets for secure mechanical connection of EP ferrite core halves.
Core Range: SB-EP 7 - SB-EP 20Function: Mechanical clamping of ferrite core halvesMaterial: Steel
Advantages
Product Advantages.
Closed EP core geometry supports low stray fields
Compact cubic design enables space-saving PCB assembly
Straight press-fit solder pins for radial wire termination
Wire guidance and strain relief pins support reliable winding
Spacer elements help prevent blind soldering on the PCB
Requirements
Technical Requirements.
Low Stray Field
High Inductance
Compact PCB Design
Reliable Wire Termination
Thermal Processing Stability
Engineering Features
Designed For Reliable Manufacturing.
Every product detail supports reliable winding, assembly, insulation and long-term production stability.
01
EP cores enable transformers with high inductance in small dimensions
02
Closed EP core geometry supports low stray fields
03
Cubic EP design enables space-saving assembly on printed circuit boards
04
Straight press-fit solder pins support radial wire termination
05
Wire guidance and strain relief pins support reliable winding and connection handling
06
Spacer elements to the printed circuit board help prevent blind soldering caused by covered PCB holes
07
Radiation cross-linking can preserve mechanical properties under short high thermal peak loads
08
Modular tooling concepts support fast customer-specific adaptations
Materials
Engineered Materials.
Material selection supports electrical insulation, thermal stability and long-term reliability in demanding industrial applications.
PET rtg natural / RTI +155°CRadiation cross-linked materials on request
Material access
Standard materials, UL data and application-specific support.
Review NORWE standard plastic materials and UL-related data, or discuss alternative materials for specific thermal, electrical, processing or compliance requirements.
Technical Capabilities
Verified Technical Performance.
The product family is engineered around material performance, soldering resistance, connection technology and reliable processing.
01
Glass-fibre reinforced PET rtg natural with RTI +155°C for EP coil formers
02
Tin bronze, tin-plated solder pins
03
Maximum soldering temperature up to +350°C for up to 2 seconds
04
Special executions and radiation cross-linked thermoplastic materials available on request
05
Dimensions available in millimetres and inches depending on variant
06
Steel SB-EP clamping brackets for core fixation
Downloads & Drawings
Technical Documents Without Friction.
Technical documentation is connected to the product structure at article level. Current released drawings are supplied through NORWE with the exact product context preserved for engineering and procurement workflows.
Technical Resource
Technical Data
Open the central document center for released technical and compliance documentation.
Open document center→
Technical Resource
Drawing Information
Select a product group and article to access released article-specific technical drawings directly.
Open product groups→
Technical Resource
Application Support
Clarify product suitability, material questions and production-related requirements with NORWE.
Request application support→
Technical Resource
Quote Preparation
Move from technical interest to quotation preparation with product and project context already included.
Request Quote→
Product documentation
Ordering Information
Family-specific ordering guidance for complex configurations, assembly options and order-code interpretation.
Open article ordering data →Product documentation
Supplementary Product Information
Additional technical information for this product family and its article variants.
Request current Supplementary Product Information →Downloads & Drawings
7 released drawings available directly through the articles.
Select the matching product group and article. Released drawings can then be opened directly without submitting a request.
Existing Resource Categories
EP Ordering ExampleEP Product InformationEP Ferrite CoresPlastic Material ListRadiation Cross-Linking
Technical FAQ
Frequently Asked Questions.
EP coil formers are winding bodies for enclosed pot core geometries. They are used for compact transformers with high inductance, low stray fields and space-saving PCB integration.
EP cores have a closed magnetic structure. This supports low stray fields and compact transformer designs with favorable electromagnetic behavior.
NORWE EP coil formers use glass-fibre reinforced PET rtg natural with RTI +155°C. Special materials and radiation cross-linked versions are available on request.
Depending on configuration, EP coil formers support short-term soldering temperatures up to +350°C for up to 2 seconds.
SB-EP clamping brackets are steel components used to connect EP ferrite core halves. One clamping bracket is required per core set and coil former.
Radiation cross-linking can help preserve mechanical properties under short, high thermal peak loads during high-temperature soldering processes and may reduce breakage risk.
