Core Range
SB-EP 7 - SB-EP 20
EP Product Group
SB-EP 7 - SB-EP 20 Clamping Brackets
Assembly Component
Steel clamping brackets for secure mechanical connection of EP ferrite core halves.
Technical Group Data
Group Characteristics.
Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.
Function
Mechanical clamping of ferrite core halves
Material
Steel
Configuration
One clamping bracket required per core set and coil former
Processing Note
A drop of adhesive can be used for additional connection with the coil former and to reduce frequency noise
Benefit
Maintains clamping pressure during operating temperature fluctuations because the bracket surrounds the complete ferrite core
Article Level
Available NORWE Types.
Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.

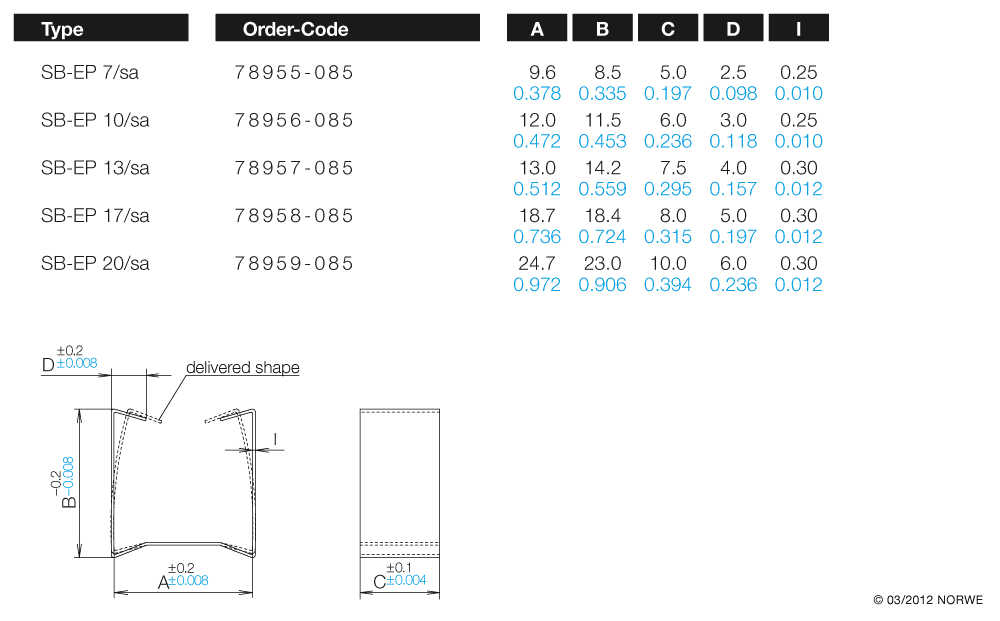

PreviewNORWE TypeOrder CodeStatusResources
NORWE Type
SB-EP 7/saOrder Code
78955-085Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type
SB-EP 10/saOrder Code
78956-085Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type
SB-EP 13/saOrder Code
78957-085Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type
SB-EP 17/saOrder Code
78958-085Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type
SB-EP 20/saOrder Code
78959-085Status
AvailableResources
2 downloads available
Article-level resource view
Need Support With This Product Group?
Talk to NORWE about SB-EP 7 - SB-EP 20 Clamping Brackets, article selection, drawings, samples or quotation preparation.
