Series
EQ 13, EQ 20, EQ 25 and EQ 30
EQ Product Group
EQ 13 to EQ 30 Coil Formers with Solder Pins
EQ Coil Formers with Solder Pins

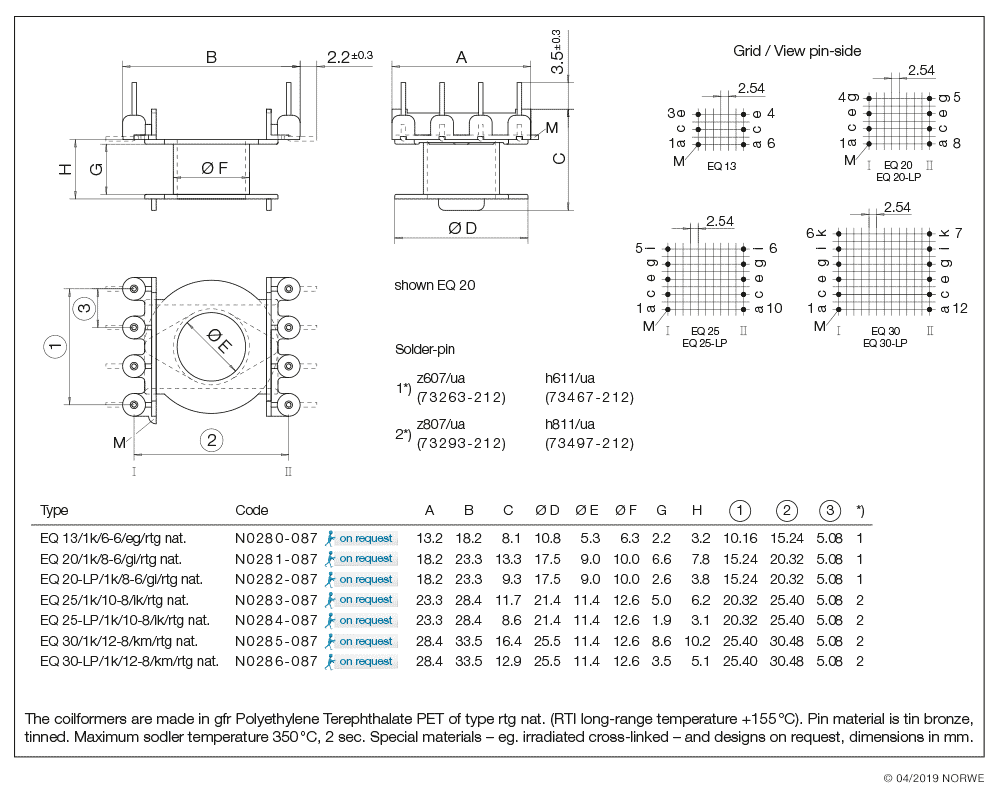

EQ 13 to EQ 30 coil formers with solder pins, vertical magnetic axis, dual-in-line pin arrangement and compact PCB footprint.
Technical Group Data
Group Characteristics.
Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.
Magnetic Axis
Vertical
Pin Arrangement
Dual-in-line
Material
Glass-fibre reinforced PET rtg natural
RTI
+155°C
Solder Pin Material
Tin bronze, tinned
Maximum Solder Temperature
350°C for up to 2 seconds
Article Level
Available NORWE Types.
Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.
PreviewNORWE TypeOrder CodeStatusResources
NORWE Type
EQ 13/1k/6-6/eg/rtg nat.Order Code
N0280-087Status
on requestResources
1 download available
Article-level resource view
NORWE Type
EQ 20/1k/8-6/gi/rtg nat.Order Code
N0281-087Status
on requestResources
1 download available
Article-level resource view
NORWE Type
EQ 20-LP/1k/8-6/gi/rtg nat.Order Code
N0282-087Status
on requestResources
1 download available
Article-level resource view
NORWE Type
EQ 25/1k/10-8/ik/rtg nat.Order Code
N0283-087Status
on requestResources
1 download available
Article-level resource view
NORWE Type
EQ 25-LP/1k/10-8/ik/rtg nat.Order Code
N0284-087Status
on requestResources
1 download available
Article-level resource view
NORWE Type
EQ 30/1k/12-8/km/rtg nat.Order Code
N0285-087Status
on requestResources
1 download available
Article-level resource view
NORWE Type
EQ 30-LP/1k/12-8/km/rtg nat.Order Code
N0286-087Status
on requestResources
1 download available
Article-level resource view
Need Support With This Product Group?
Talk to NORWE about EQ 13 to EQ 30 Coil Formers with Solder Pins, article selection, drawings, samples or quotation preparation.
