M-EI-UI Product Group

Frames r For M, EJ And UJ Elements

Frame / Protection Class Component

Frames r for M, EJ and UJ coil former elements supporting creepage and clearance distance requirements between primary and secondary windings.

Request QuoteRequest Sample

Technical Group Data

Group Characteristics.

Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.

Function

Frame for insulation and system assembly

Application

Protection class designs A and C

Materials

PA66 p6g

RTI

+125°C

Ordering Note

Type designation and order code required for ordering

Benefit

Required for maintaining creepage and clearance distances between primary and secondary windings in selected protection class designs

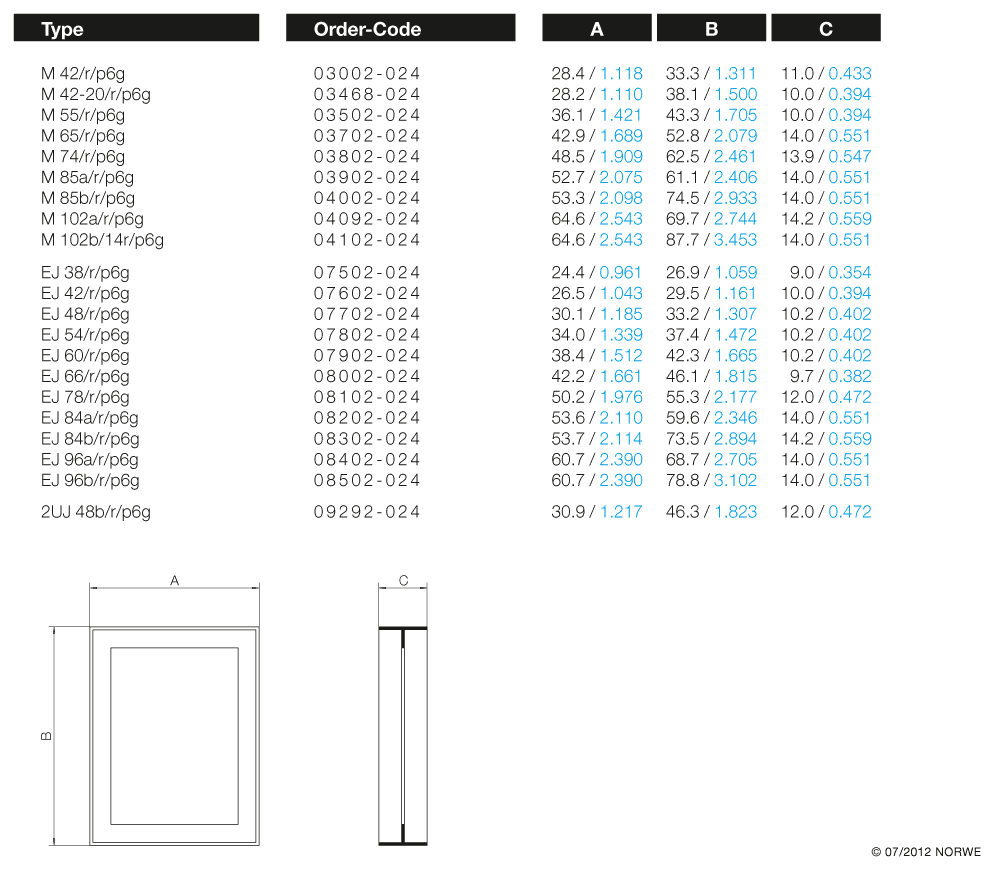

Technical product overview · 21 verified article entries

Article Level

Available NORWE Types.

Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.

Need Support With This Product Group?

Talk to NORWE about Frames r For M, EJ And UJ Elements, article selection, drawings, samples or quotation preparation.

Start Technical Inquiry
