Legacy Source
011/A01
UNI Product Group
UNI EE Coil Formers
Universal EE Coil Formers
Universal UNI EE coil formers for flexible transformer designs with solder pins and adaptable EE core configurations.
Technical Group Data
Group Characteristics.
Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.
Article Count
2
Series
UNI EE
Design
Universal EE coil former
Materials
PA66 p6g
Connection
Solder pins
Article Level
Available NORWE Types.
Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.
PreviewNORWE TypeOrder CodeStatusResources
NORWE Type

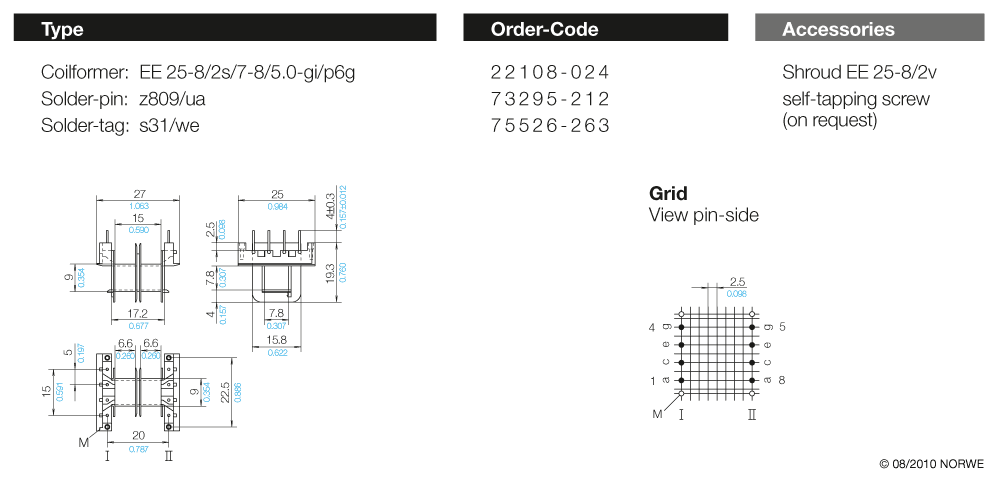

EE 25-8/2s/7-8/5,0-gi/p6gOrder Code
22108-024Status
AvailableResources
3 downloads available
Article-level resource view
NORWE Type

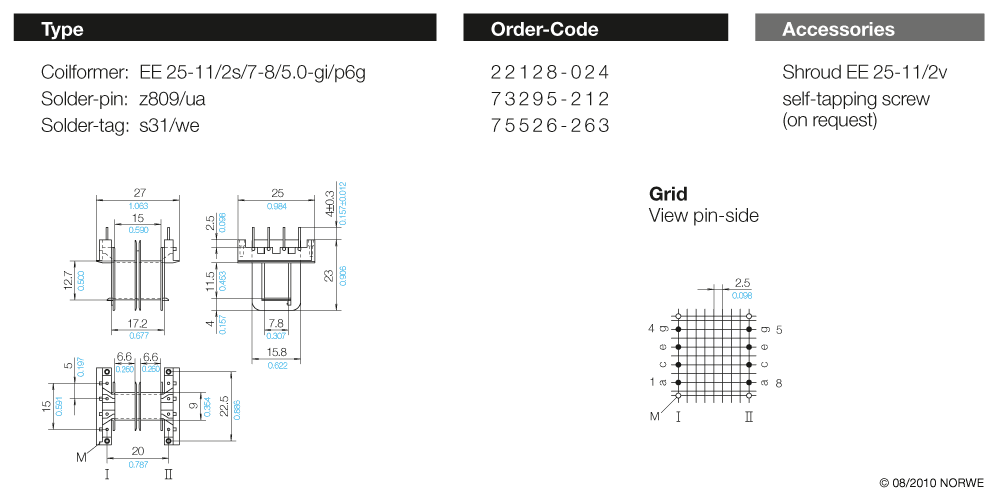

EE 25-11/2s/7-8/5,0-gi/p6gOrder Code
22128-024Status
AvailableResources
3 downloads available
Article-level resource view
Need Support With This Product Group?
Talk to NORWE about UNI EE Coil Formers, article selection, drawings, samples or quotation preparation.
