RM Standard Height / RM-LP Low Profile With Linear Solder Pins

RM Coil Formers With Solder Pins

RM standard-height and RM-LP low-profile coil formers with linearly arranged solder pins for compact transformer, choke and converter applications.

Request QuoteRequest Sample

Technical Group Data

Group Characteristics.

Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.

Series

RM Standard / RM-LP Low Profile

Connection

Linearly arranged solder pins

Materials

PET rtg natural, PA66 p6g

RTI

PET +155°C / PA66 +125°C

Pin System

Tin bronze, tin-plated solder pins

Soldering Resistance

+350°C up to 2 seconds

Winding Options

h-pins for radial winding and strain-relieved winding of thin wires and strands; z-pins for conventional winding and space-saving PCB assembly

Benefit

Provides two assembly alternatives for radial strain-relieved winding or compact conventional PCB installation

Technical product overview · 13 verified article entries

Article Level

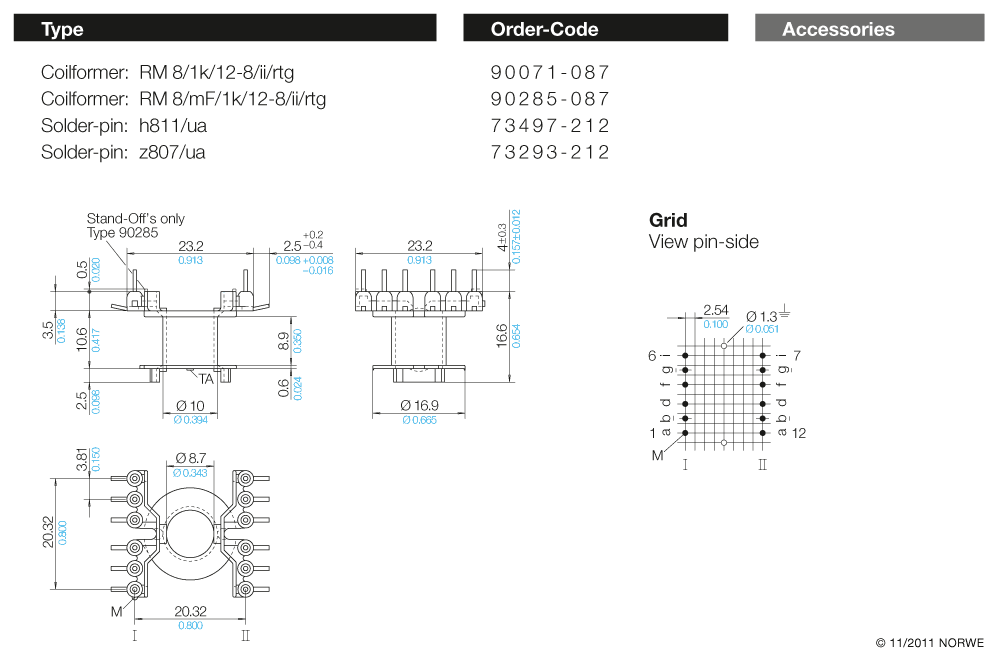

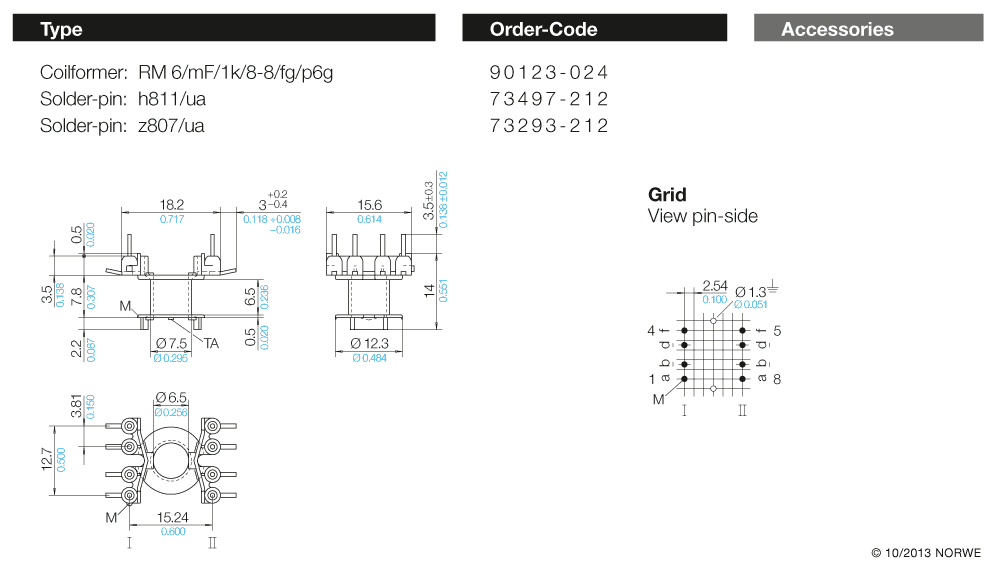

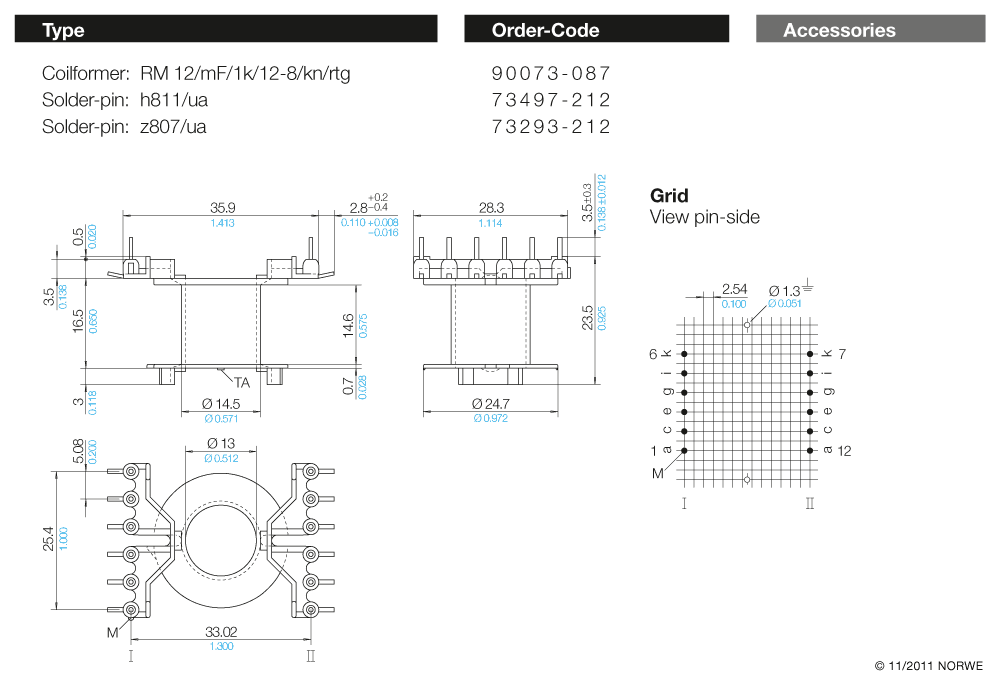

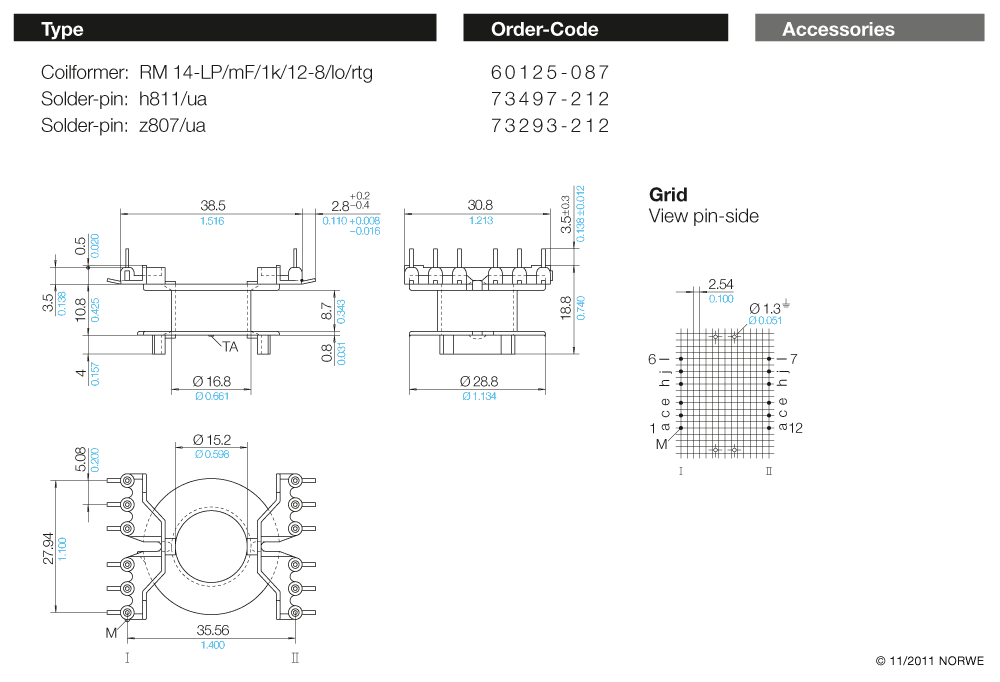

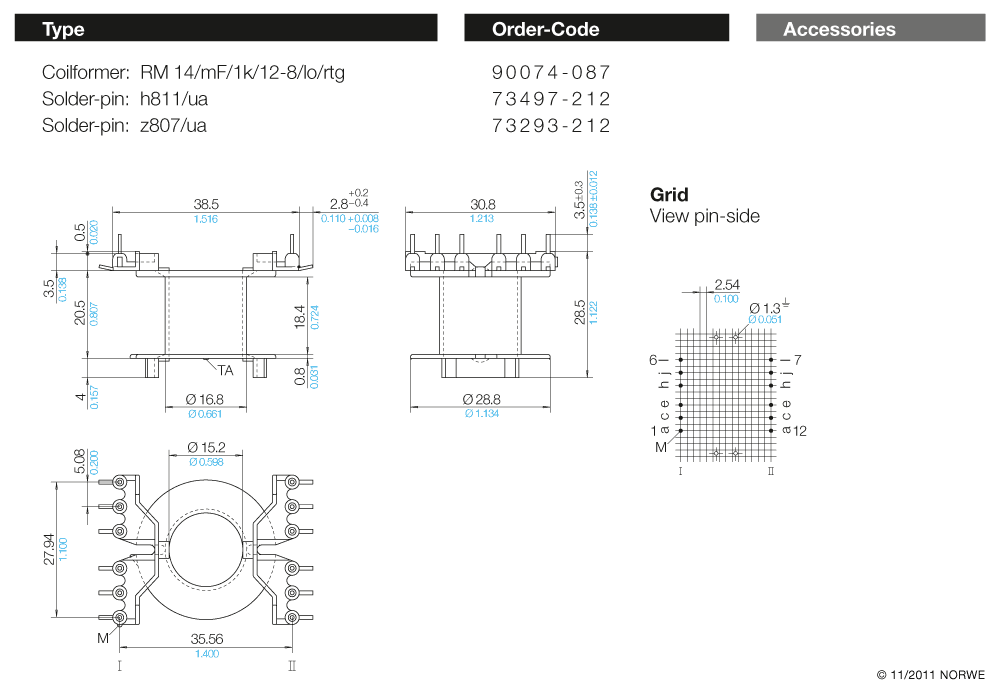

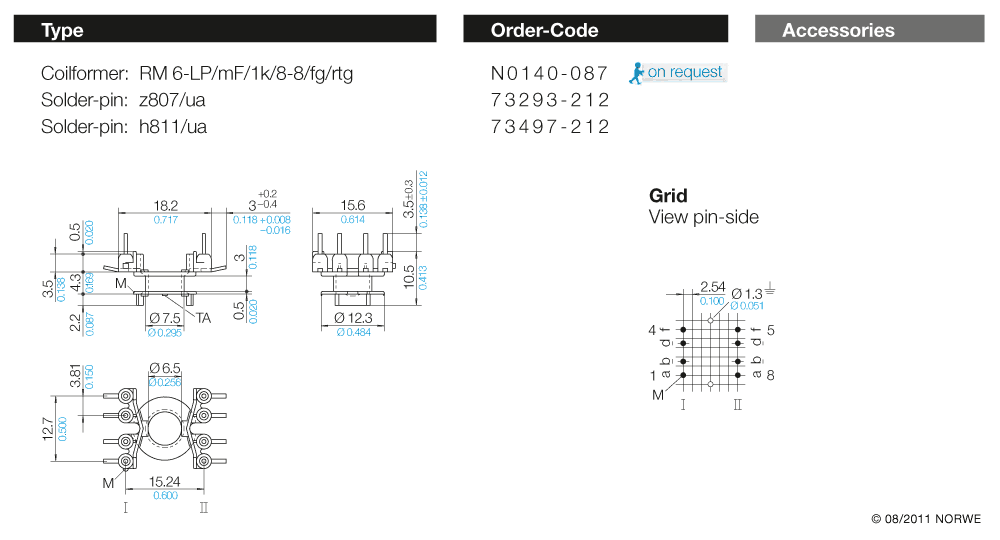

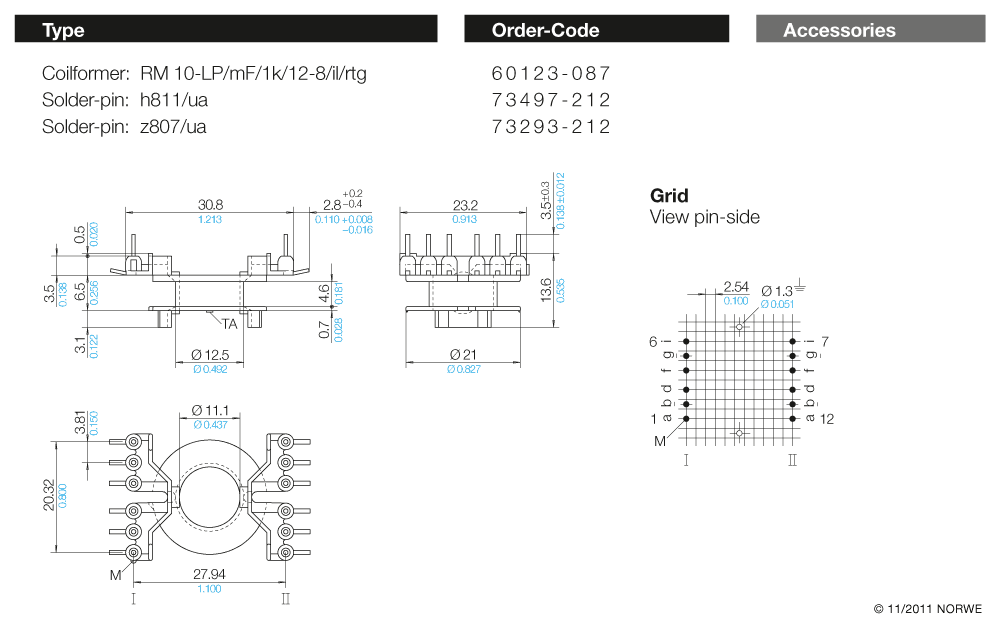

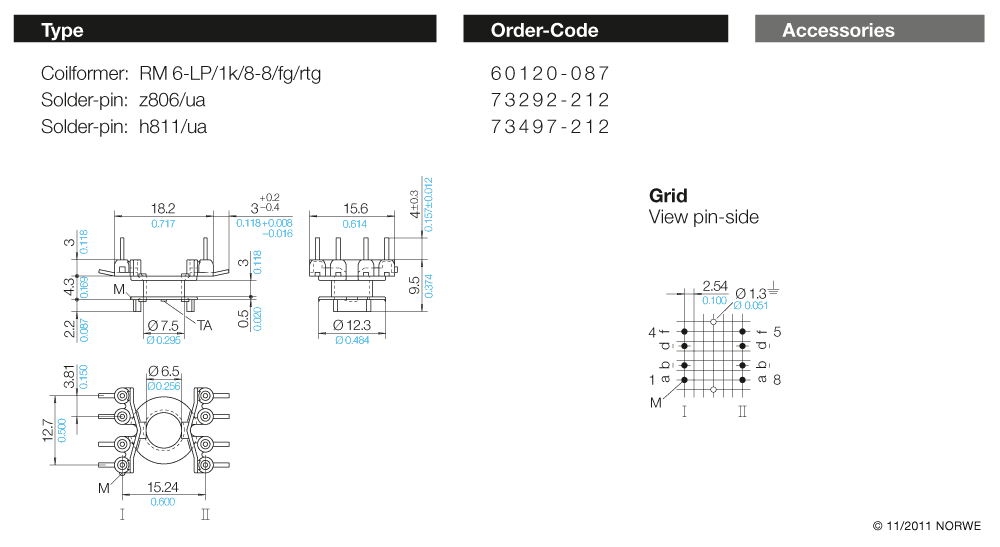

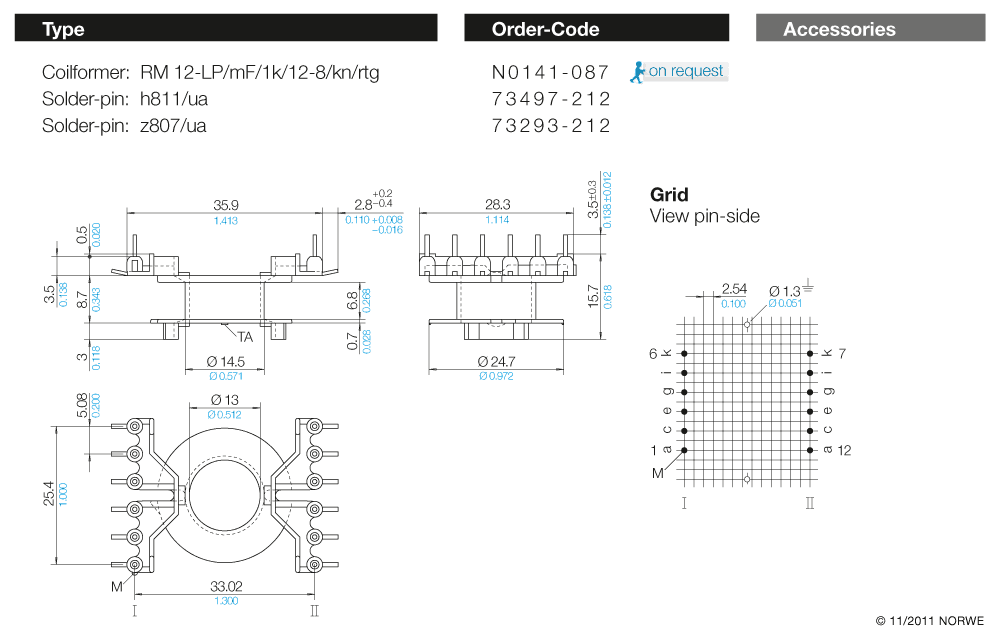

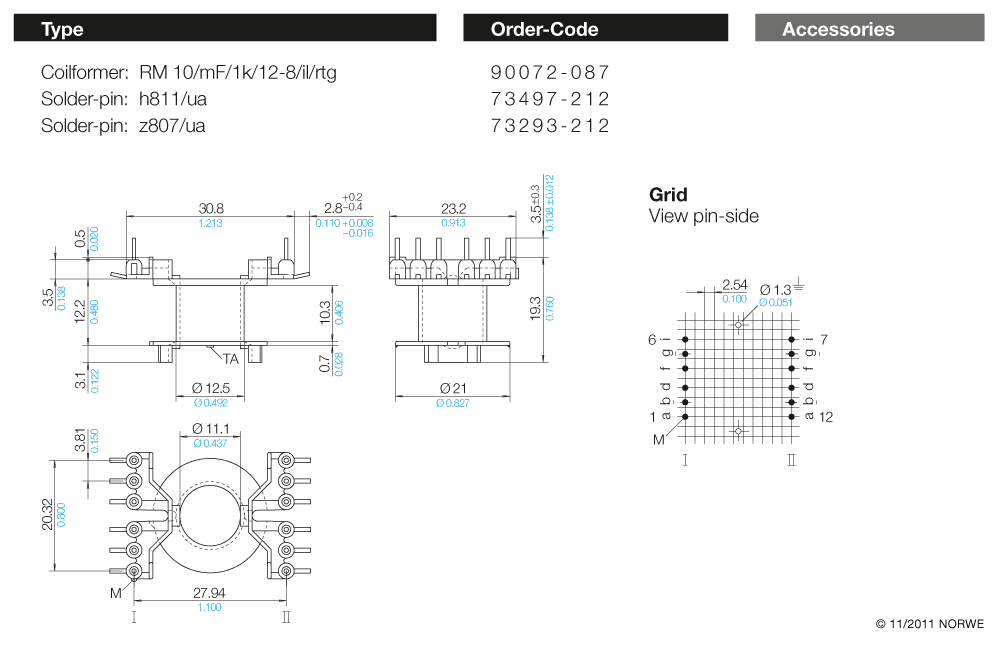

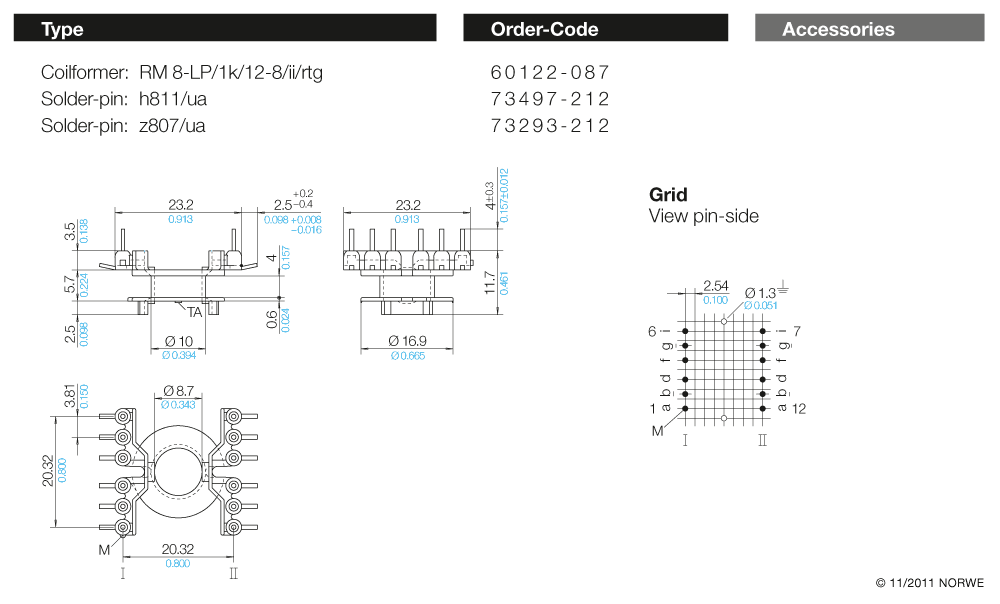

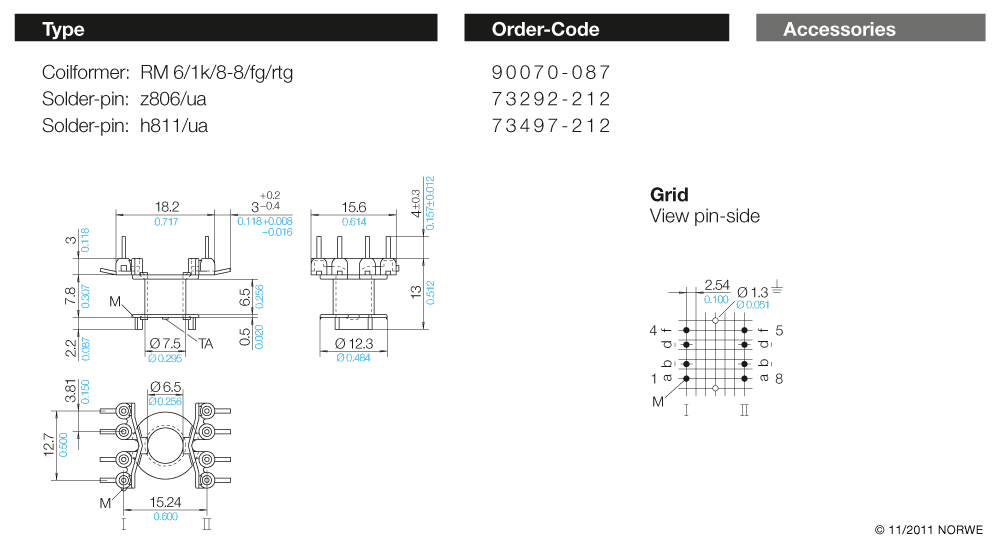

Available NORWE Types.

Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.
