RM Power Transformer 45° Special Design
RM Product Group
RM Power Transformer 45° Special Design
RM Special Design Coil Formers
Special RM 45° power transformer coil formers for bifilar winding concepts and automated winding and soldering processes.
Technical Group Data
Group Characteristics.
Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.
Connection
Solder pin arrangement on the lower flange
Materials
PA66 p6g
RTI
+125°C
Pin System
Tin bronze, tin-plated solder pins
Soldering Resistance
+350°C up to 2 seconds
Design Feature
The solder pin arrangement enables simultaneous winding and termination of two wires for bifilar windings
Benefit
Compared with standard coil formers, 12 to 32 connection contacts can be used and fully automatic winding and soldering is possible
Article Level
Available NORWE Types.
Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.
PreviewNORWE TypeOrder CodeStatusResources
NORWE Type

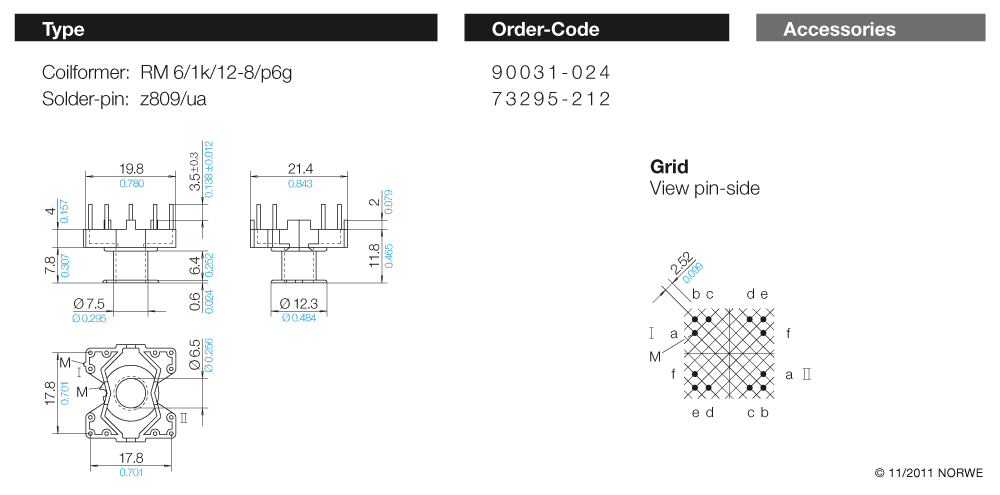

RM 6/1k/12-8/p6gOrder Code
90031-024Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type

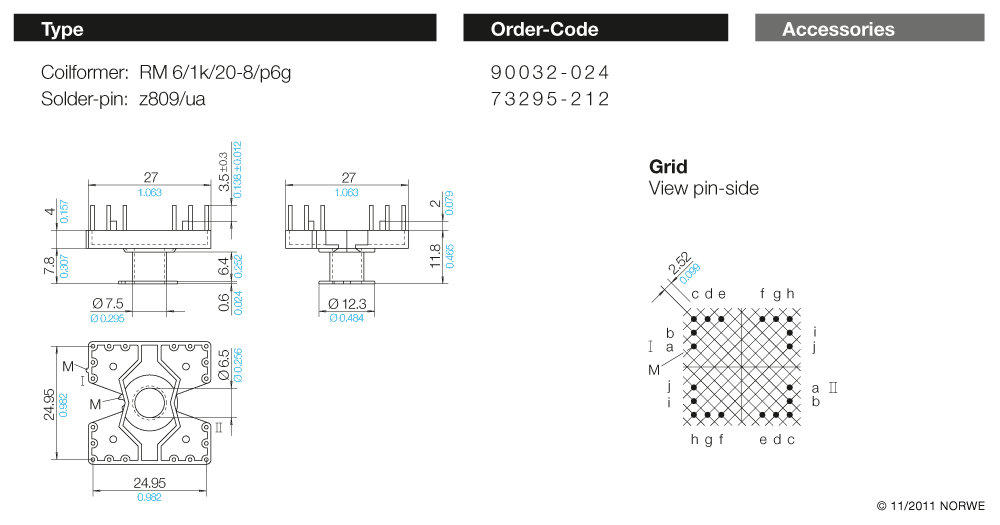

RM 6/1k/20-8/p6gOrder Code
90032-024Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type

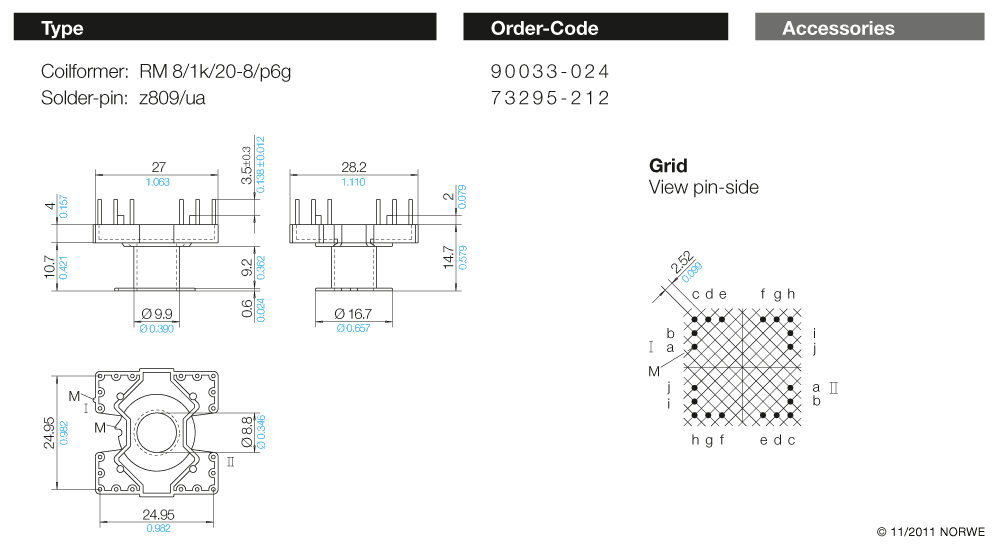

RM 8/1k/20-8/p6gOrder Code
90033-024Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type

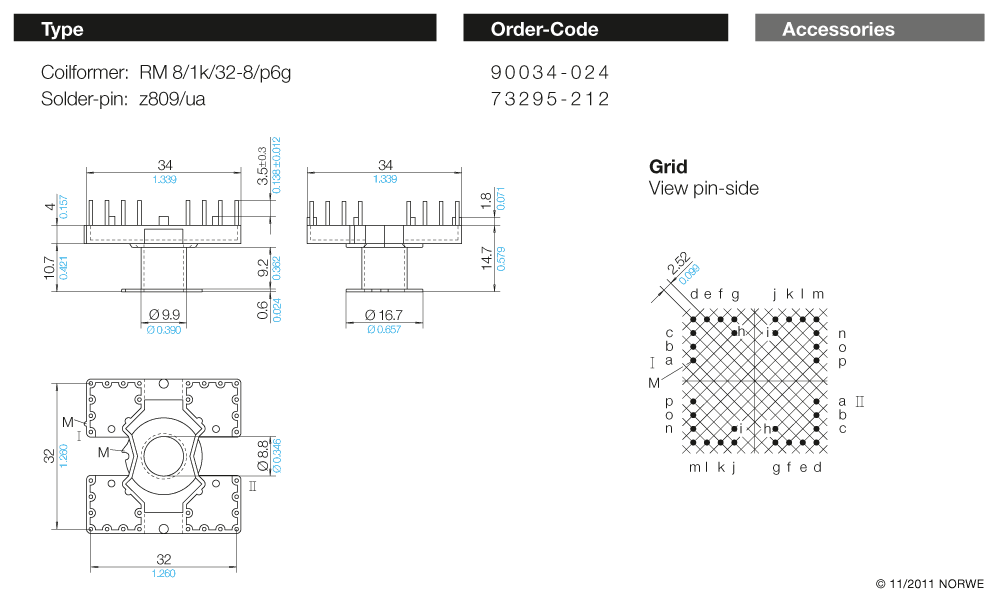

RM 8/1k/32-8/p6gOrder Code
90034-024Status
AvailableResources
2 downloads available
Article-level resource view
