Products/RM

RM Product Group

RM Power Transformer 45°

RM Power Transformer Coil Formers

RM 45° power transformer coil formers for demanding power transfer applications with axial winding connection concepts.

Request QuoteRequest Sample

Technical Group Data

Group Characteristics.

Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.

Series

RM Power Transformer 45°

Connection

Axially windable solder pins

Materials

PPS torA504

RTI

+130°C

Pin System

Tin bronze, tin-plated solder pins

Soldering Resistance

+300°C up to 2 seconds

Design Feature

Wire guidance openings in the lower central flange guide wires to and from the winding space

Benefit

Increased flange design reduces breakage risk during winding and supports secure seating of subsequently assembled solder pins

Technical product overview · 14 verified article entries

Article Level

Available NORWE Types.

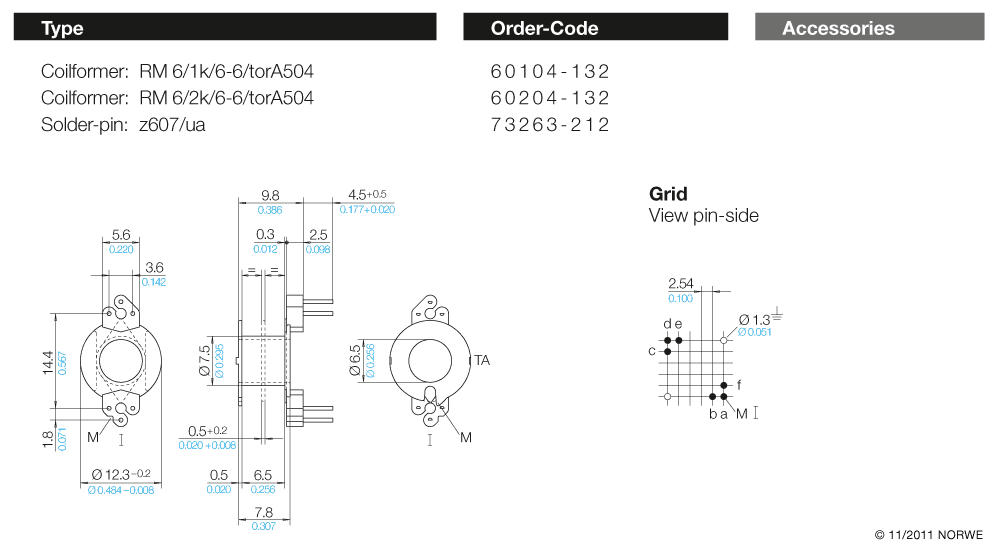

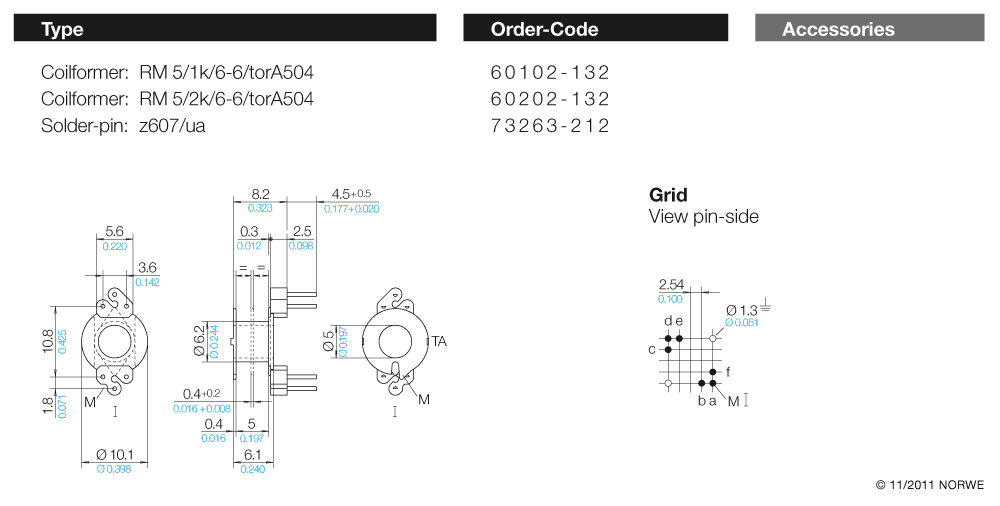

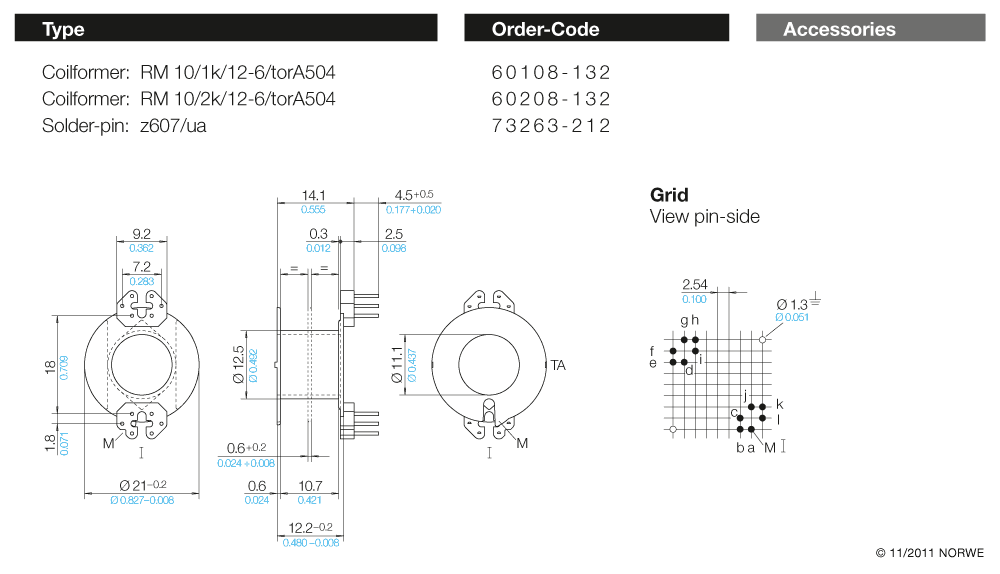

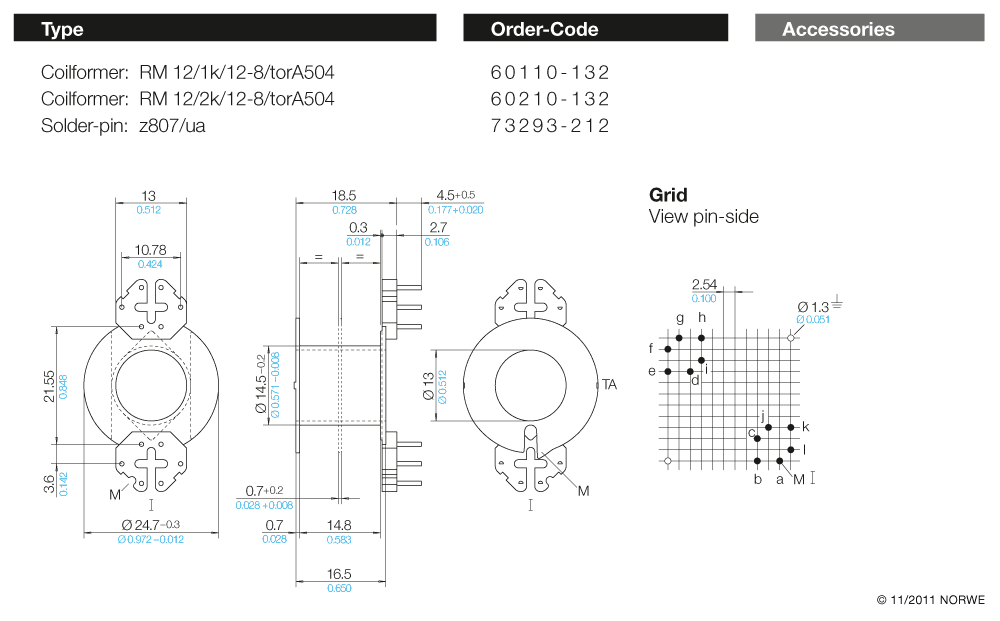

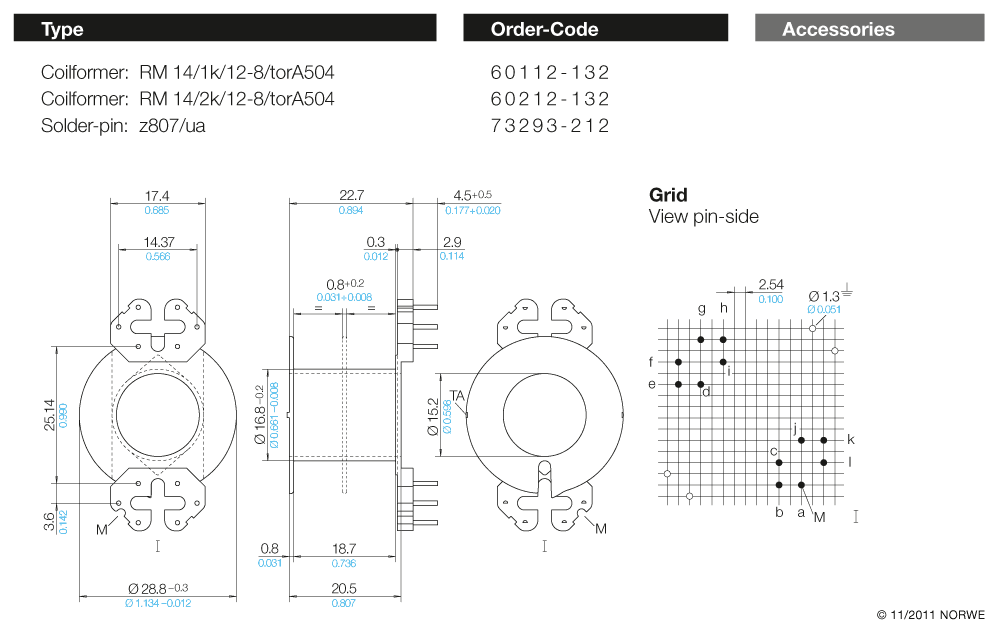

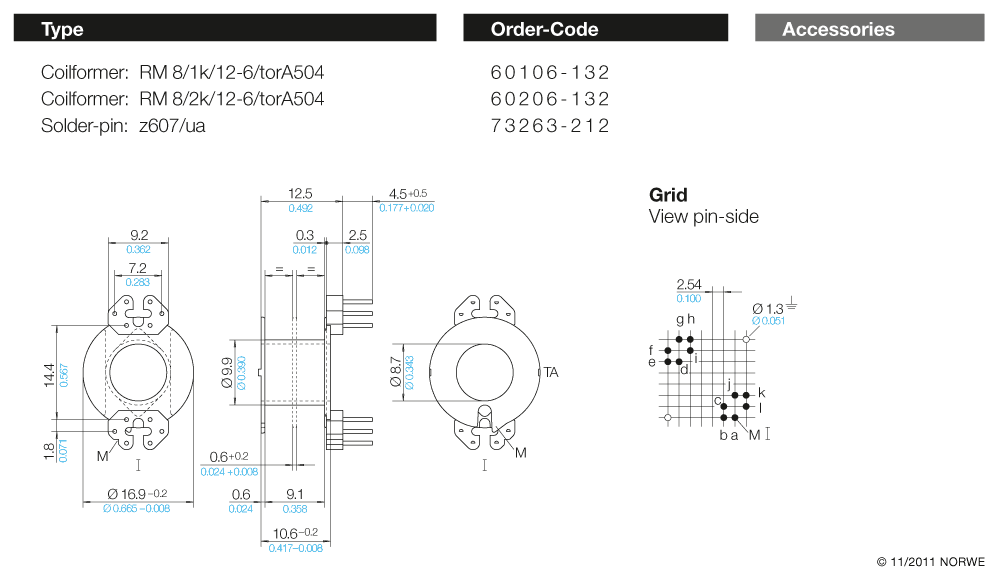

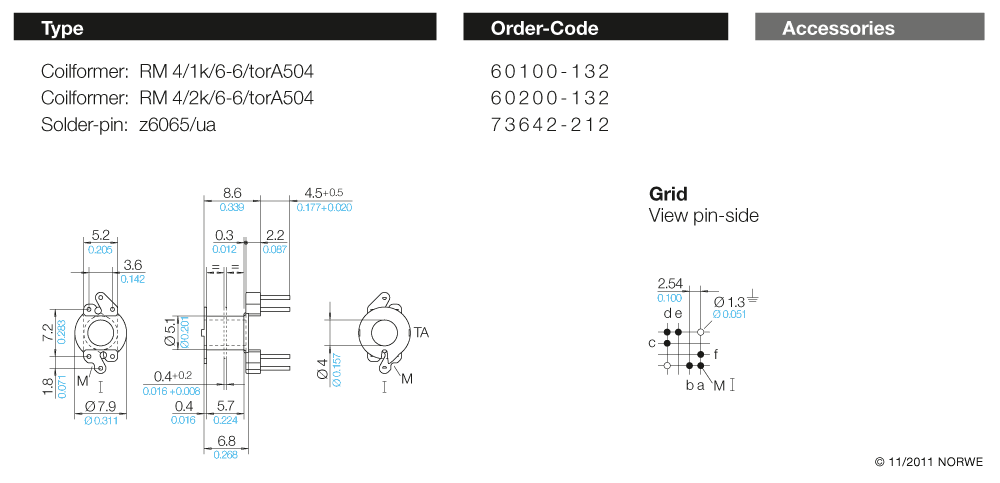

Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.

Need Support With This Product Group?

Talk to NORWE about RM Power Transformer 45°, article selection, drawings, samples or quotation preparation.

Start Technical Inquiry
