PC Product Group

C 14x8 - C 47x28 Three-Chamber Coil Formers

Three-Chamber Pot Core Coil Formers

Three-chamber pot core coil formers for multi-section winding concepts in low-stray-field magnetic assemblies.

Request QuoteRequest Sample

Technical Group Data

Group Characteristics.

Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.

Core Range

C 14x8 - C 47x28

Chamber Design

Three-chamber

Materials

PC pk3

RTI

+115°C

Standard Reference

Based on DIN 41294

Production Concept

Efficient production possible with terminal carrier, insulating cover and NORWE winding mandrel

Application

Multi-section low-stray-field inductor applications

Benefit

Three-chamber configuration supports multi-section winding concepts in compact pot core assemblies

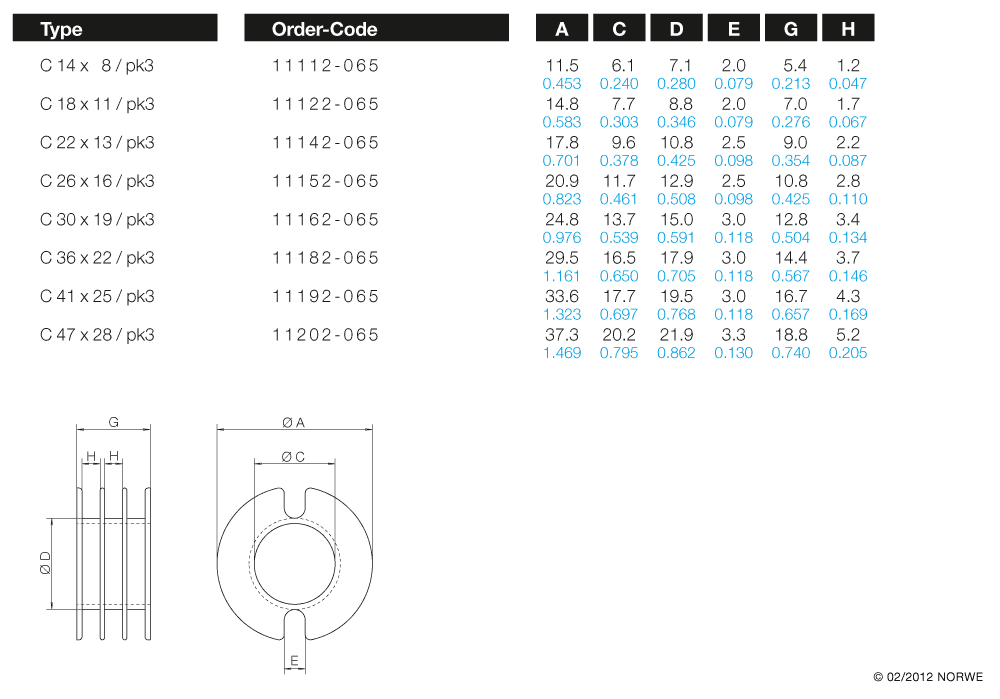

Technical product overview · 8 verified article entries

Article Level

Available NORWE Types.

Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.

Need Support With This Product Group?

Talk to NORWE about C 14x8 - C 47x28 Three-Chamber Coil Formers, article selection, drawings, samples or quotation preparation.

Start Technical Inquiry
