AT 9x5 - AT 36x22 Terminal Carriers
Terminal Carriers
Terminal carriers for pot core assemblies with defined solder pin connection and wire guidance concepts.
Technical Group Data
Group Characteristics.
Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.
Function
Terminal carrier with solder pins
Materials
PET rtg natural
RTI
+155°C
Pin System
Tin bronze, tin-plated solder pins
Soldering Resistance
+350°C up to 2 seconds
Processing Note
Wire ends can be wound directly onto the designated solder pins using the coil angle
Benefit
Special wire guidance slots allow connection wires to be routed insulated from the pot core, while locking lugs secure the insulating cover
Article Level
Available NORWE Types.
Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.
PreviewNORWE TypeOrder CodeStatusResources
NORWE Type

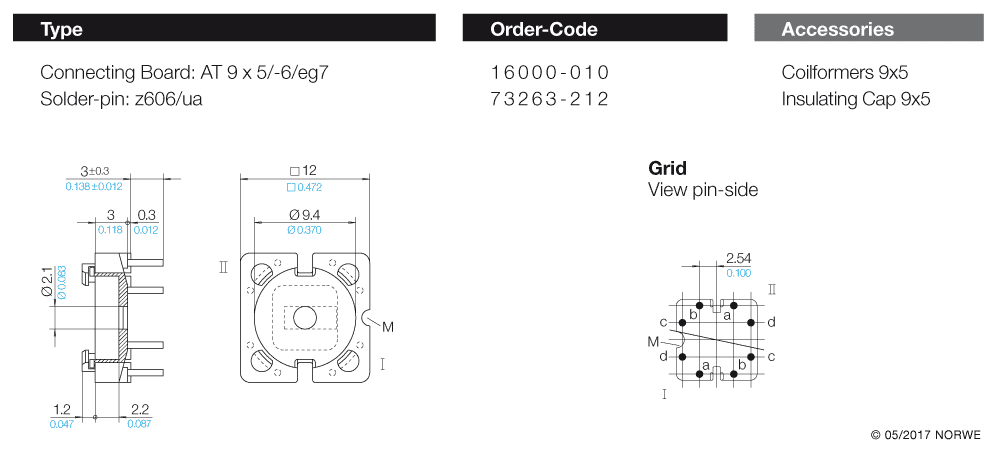

AT 9 x 5/-6/eg7Order Code
16000-010Status
AvailableResources
5 downloads available
Article-level resource view
NORWE Type

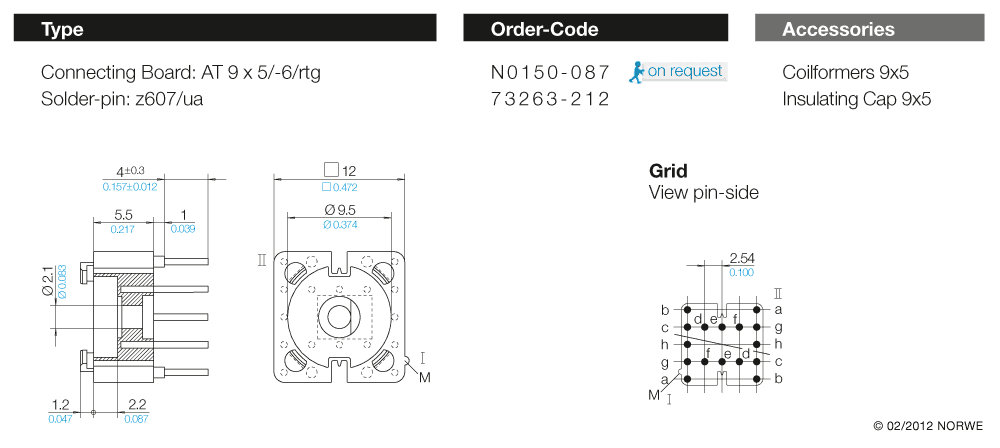

AT 9 x 5/-6/rtg nat.Order Code
N0150-087Status
on requestResources
5 downloads available
Article-level resource view
NORWE Type

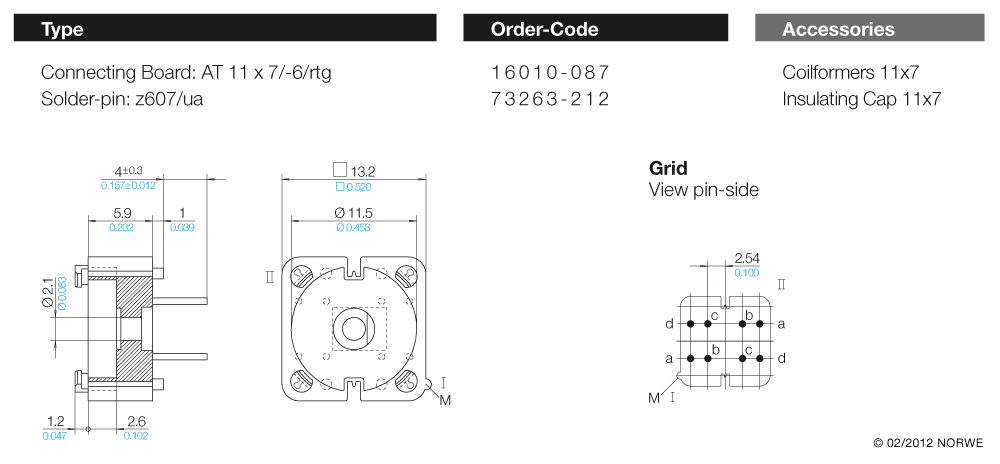

AT 11 x 7/-6/rtg nat.Order Code
16010-087Status
AvailableResources
5 downloads available
Article-level resource view
NORWE Type
AT 14 x 8/-6/rtg nat.Order Code
16020-087Status
AvailableResources
6 downloads available
Article-level resource view
NORWE Type

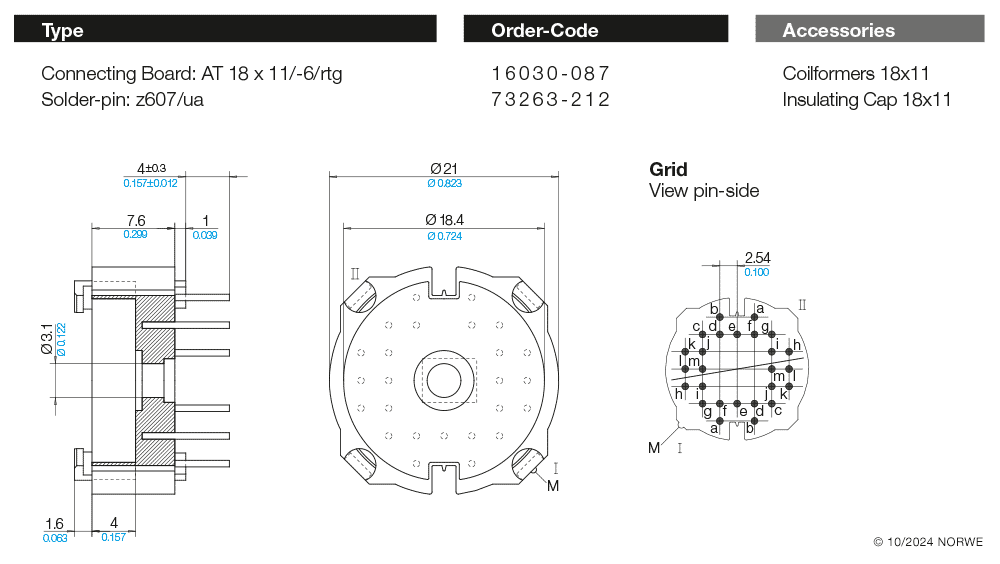

AT 18 x 11/-6/rtg nat.Order Code
16030-087Status
AvailableResources
6 downloads available
Article-level resource view
NORWE Type

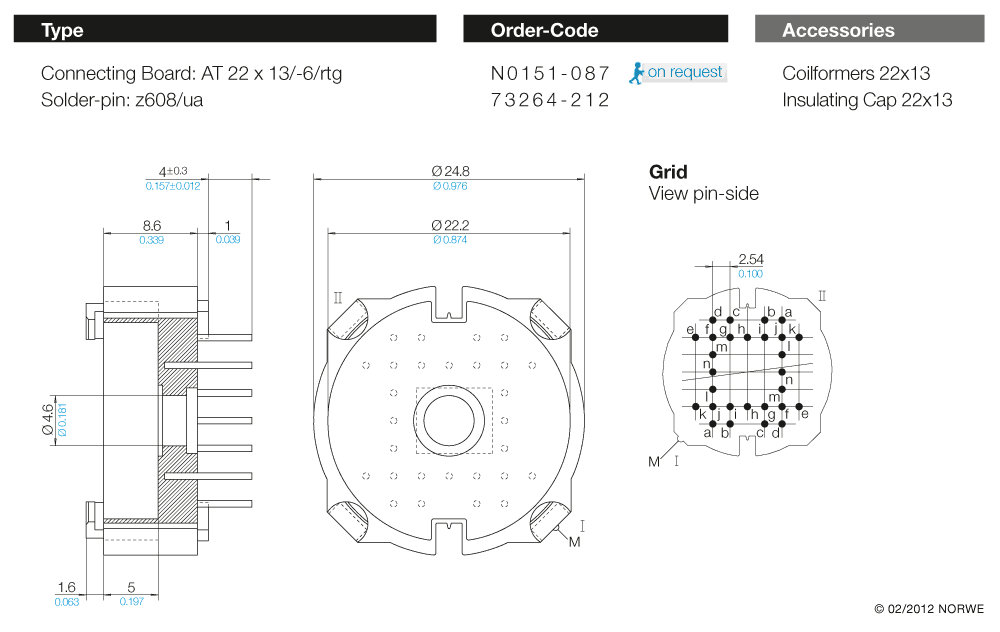

AT 22 x 13/-6/rtg nat.Order Code
N0151-087Status
on requestResources
6 downloads available
Article-level resource view
NORWE Type

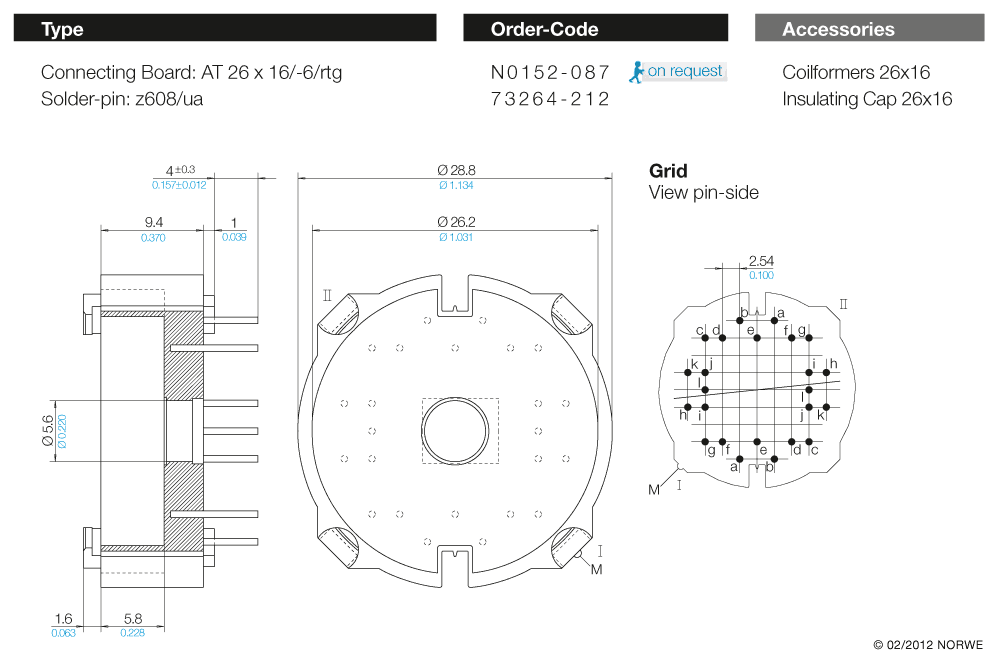

AT 26 x 16/-6/rtg nat.Order Code
N0152-087Status
on requestResources
6 downloads available
Article-level resource view
NORWE Type
AT 30 x 19/-6/rtg nat.Order Code
N0153-087Status
on requestResources
6 downloads available
Article-level resource view
NORWE Type

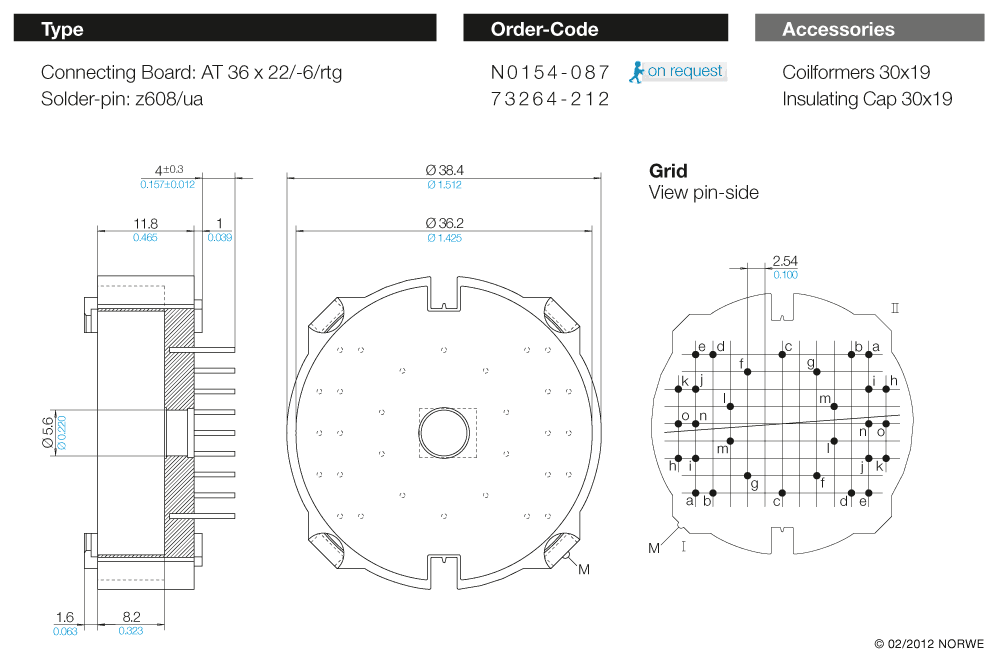

AT 36 x 22/-6/rtg nat.Order Code
N0154-087Status
on requestResources
6 downloads available
Article-level resource view
