PC Product Group

A 4.6x3.1 - A 70x42 One-Chamber Coil Formers

One-Chamber Pot Core Coil Formers

One-chamber pot core coil formers for low-stray-field inductors and compact magnetic assemblies.

Request QuoteRequest Sample

Technical Group Data

Group Characteristics.

Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.

Core Range

A 4.6x3.1 - A 70x42

Chamber Design

One-chamber

Materials

PC pk3

RTI

+115°C

Standard Reference

Based on DIN 41294

Production Concept

Efficient production possible with terminal carrier, insulating cover and NORWE winding mandrel

Application

Low-stray-field inductors and pot core magnetic assemblies

Benefit

Supports rational production of low-stray-field inductors with compatible system accessories

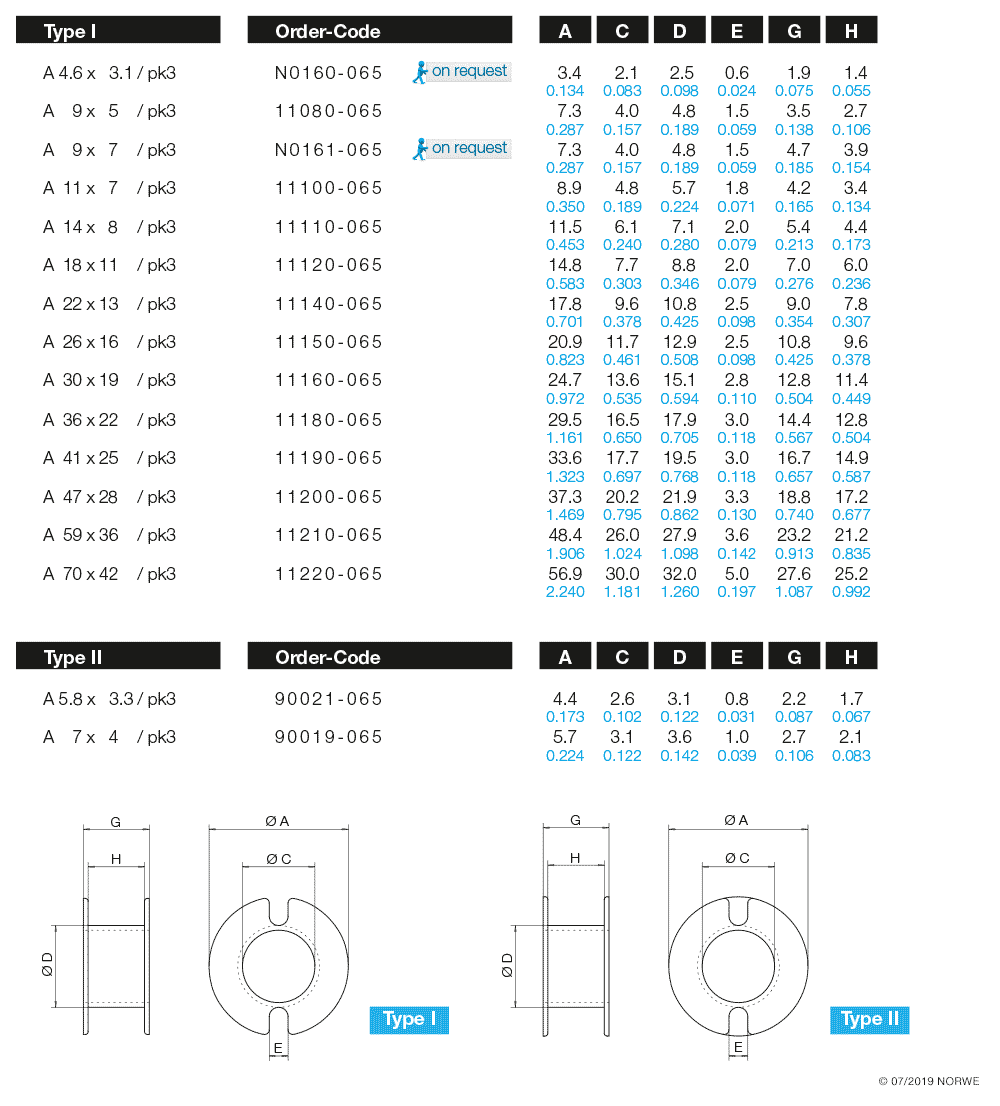

Technical product overview · 16 verified article entries

Article Level

Available NORWE Types.

Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.

Need Support With This Product Group?

Talk to NORWE about A 4.6x3.1 - A 70x42 One-Chamber Coil Formers, article selection, drawings, samples or quotation preparation.

Start Technical Inquiry
