PC Product Group

1/2 A 9x5 - 1/2 A 70x42 Half-Height Coil Formers

Half-Height Pot Core Coil Formers

Half-height pot core coil formers based on DIN 41294 geometry for compact sensor and proximity switch applications.

Request QuoteRequest Sample

Technical Group Data

Group Characteristics.

Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.

Core Range

1/2 A 9x5 - 1/2 A 70x42

Design

Half-height coil former

Materials

PC pk3

RTI

+115°C

Standard Reference

Based on DIN 41294

Dimensions

9x5 mm to 70x42 mm / 0.354x0.197 inch to 2.756x1.654 inch

Application

Especially suitable for proximity switch construction

Benefit

Supports compact half-height magnetic designs for sensor and proximity switch applications

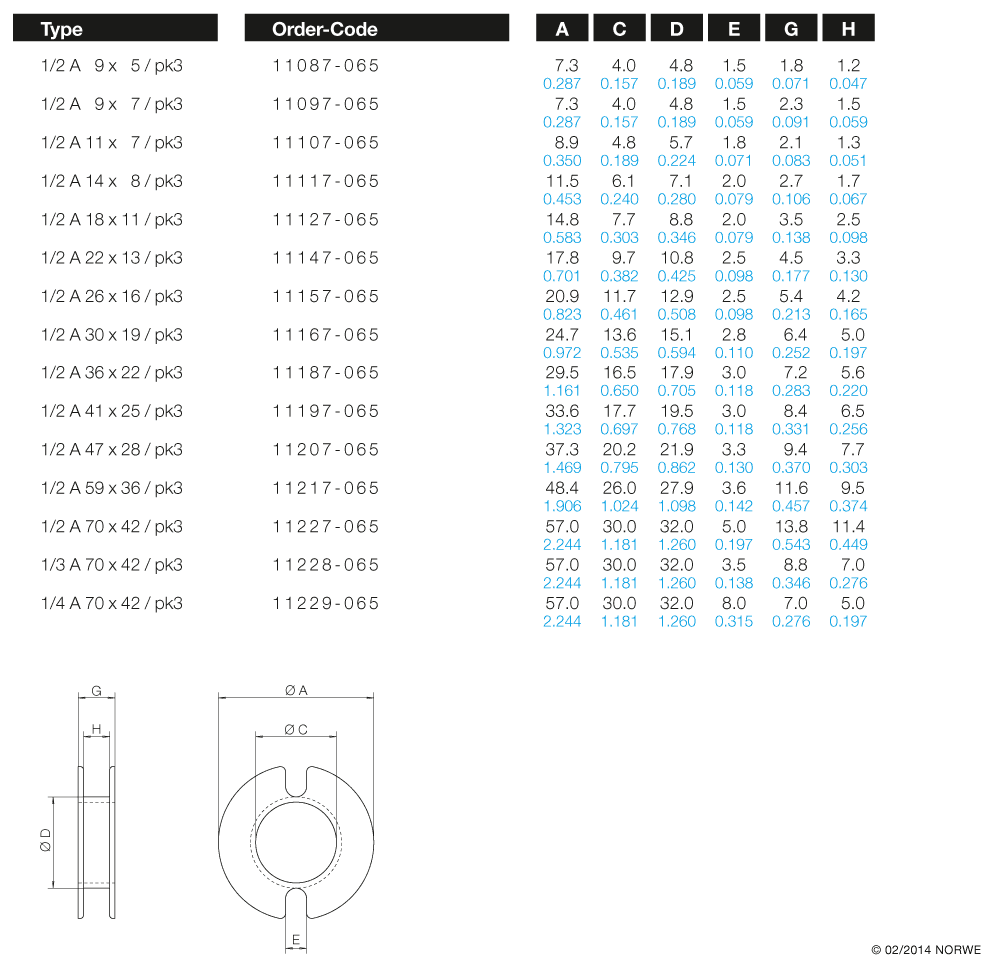

Technical product overview · 15 verified article entries

Article Level

Available NORWE Types.

Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.

Need Support With This Product Group?

Talk to NORWE about 1/2 A 9x5 - 1/2 A 70x42 Half-Height Coil Formers, article selection, drawings, samples or quotation preparation.

Start Technical Inquiry
