EE-SMD Coil Formers (LDS/SMD3)
EE-SMD Coil Formers LDS/SMD3
EE-SMD3 coil formers using LDS technology for compact surface-mount transformer assemblies.
Technical Group Data
Group Characteristics.
Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.
Core Range
EE 5 - EE 16
Technology
LDS / SMD3
Material
CRE/35/8LDS2
Product Count
14 articles
Article Level
Available NORWE Types.
Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.
PreviewNORWE TypeOrder CodeStatusResources
NORWE Type

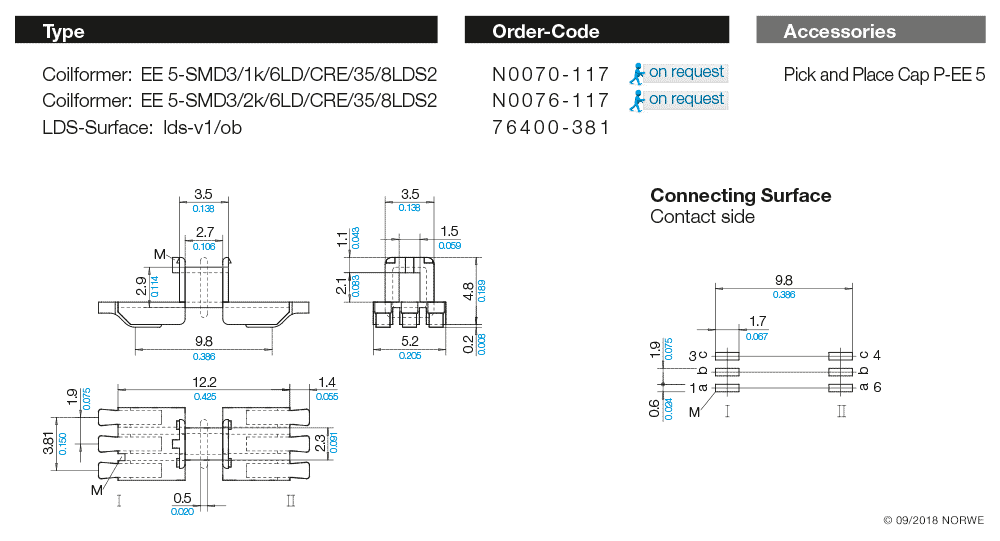

EE 5-SMD3/1k/6LD/1,9/CRE/35/8LDS2Order Code
N0070-117Status
on requestResources
3 downloads available
Article-level resource view
NORWE Type
EE 5-SMD3/2k/6LD/1,9/CRE/35/8LDS2Order Code
N0076-117Status
on requestResources
3 downloads available
Article-level resource view
NORWE Type
EE 6,3-SMD3/1k/6LD/2,54/CRE/35/8LDS2Order Code
N0071-117Status
on requestResources
3 downloads available
Article-level resource view
NORWE Type

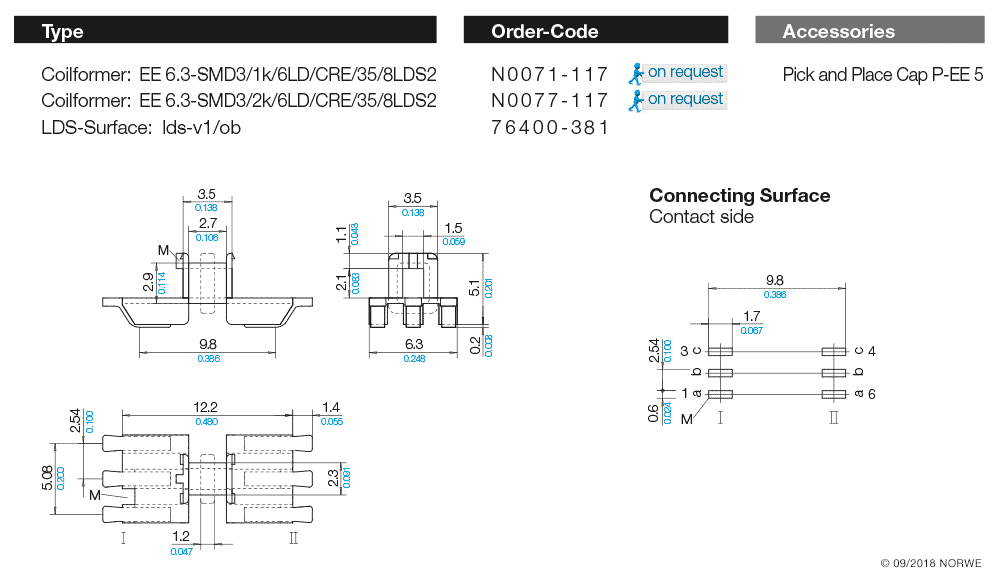

EE 6,3-SMD3/2k/6LD/2,54/CRE/35/8LDS2Order Code
N0077-117Status
on requestResources
3 downloads available
Article-level resource view
NORWE Type
EE 8,8-SMD3/1k/8LD/2,54/CRE/35/8LDS2Order Code
N0072-117Status
on requestResources
3 downloads available
Article-level resource view
NORWE Type

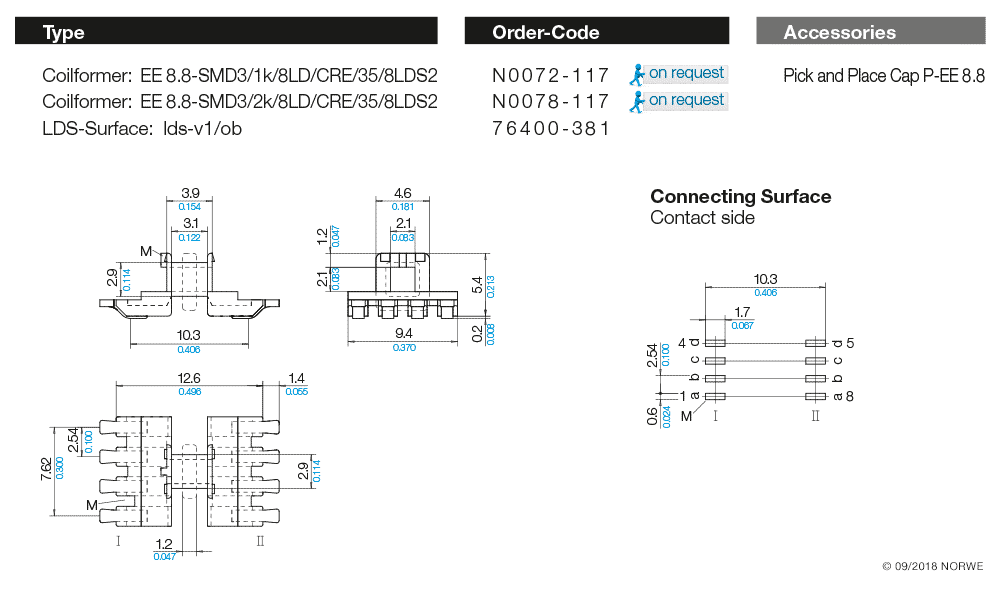

EE 8,8-SMD3/2k/8LD/2,54/CRE/35/8LDS2Order Code
N0078-117Status
on requestResources
3 downloads available
Article-level resource view
NORWE Type

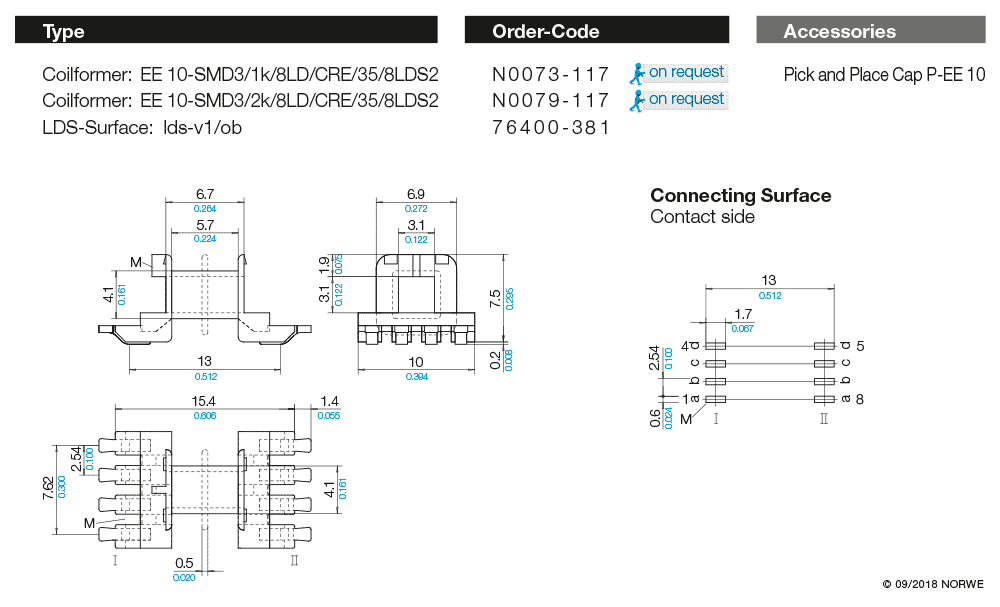

EE 10-SMD3/1k/8LD/2,54/CRE/35/8LDS2Order Code
N0073-117Status
on requestResources
3 downloads available
Article-level resource view
NORWE Type
EE 10-SMD3/2k/8LD/2,54/CRE/35/8LDS2Order Code
N0079-117Status
on requestResources
3 downloads available
Article-level resource view
NORWE Type

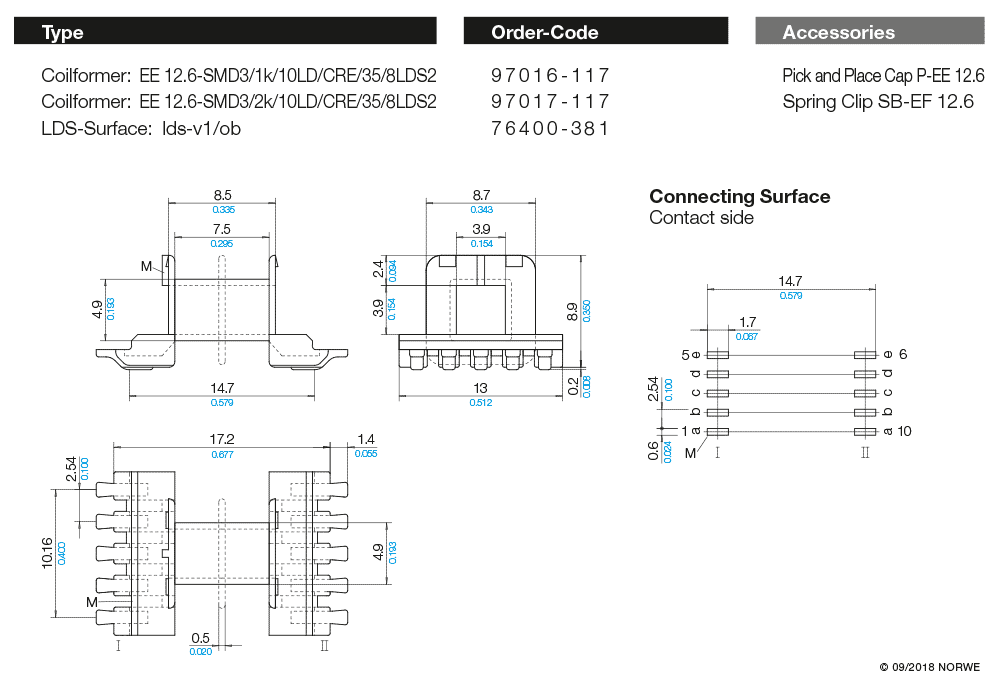

EE 12,6-SMD3/1k/10LD/2,54/CRE/35/8LDS2Order Code
97016-117Status
AvailableResources
4 downloads available
Article-level resource view
NORWE Type
EE 12,6-SMD3/2k/10LD/2,54/CRE/35/8LDS2Order Code
97017-117Status
AvailableResources
4 downloads available
Article-level resource view
NORWE Type
EE 16-SMD3/1k/10LD/2,54/CRE/35/8LDS2Order Code
N0075-117Status
on requestResources
4 downloads available
Article-level resource view
NORWE Type

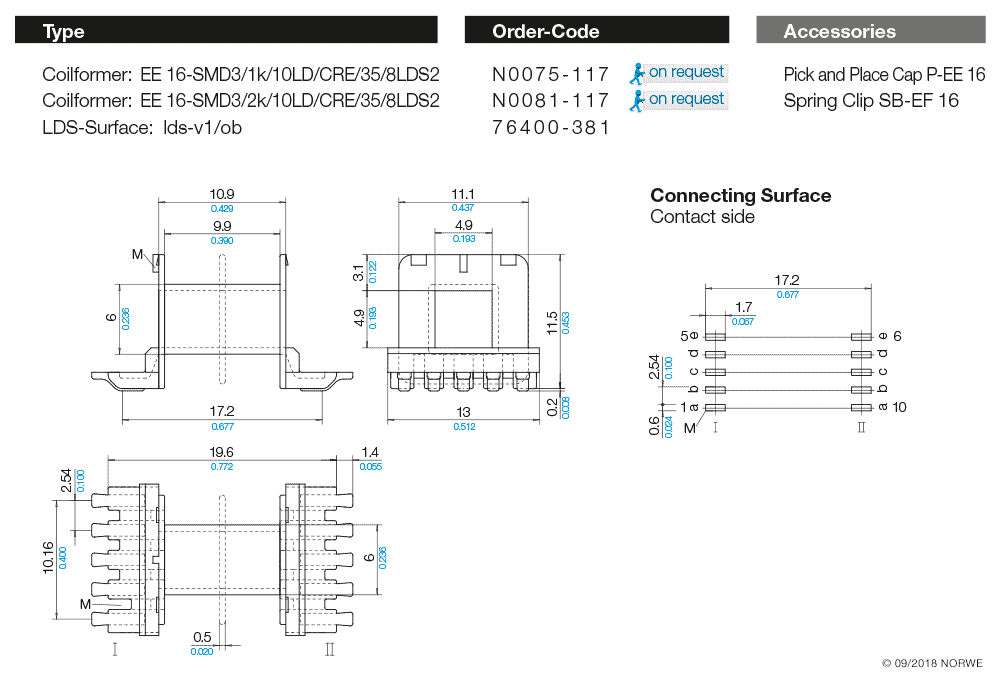

EE 16-SMD3/2k/10LD/2,54/CRE/35/8LDS2Order Code
N0081-117Status
on requestResources
4 downloads available
Article-level resource view
NORWE Type

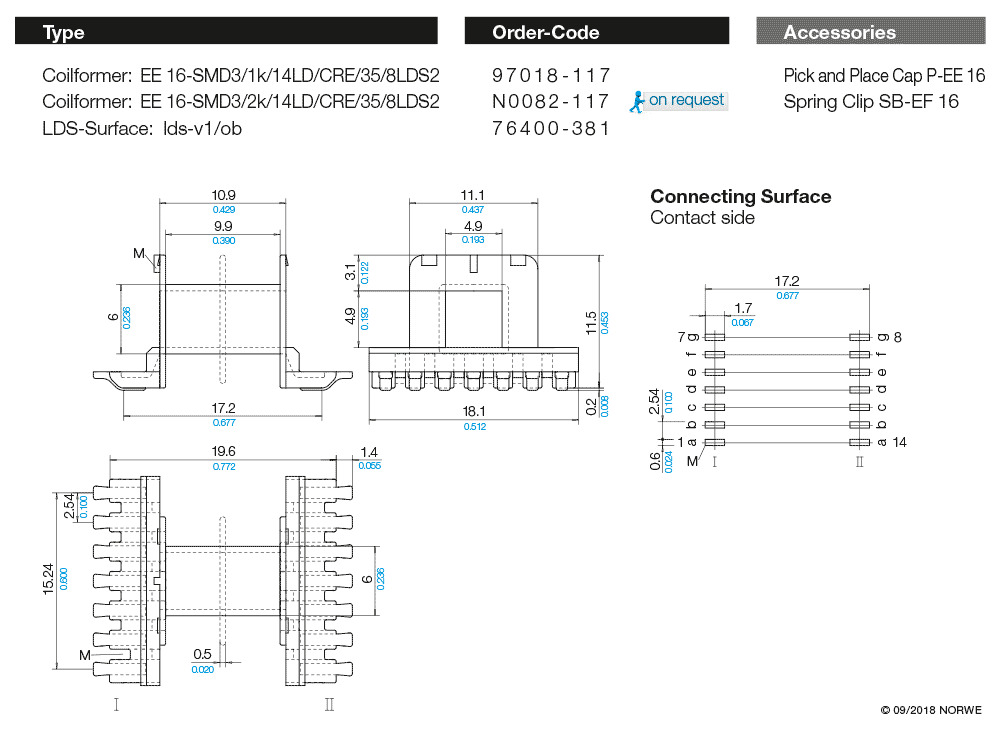

EE 16-SMD3/1k/14LD/2,54/CRE/35/8LDS2Order Code
97018-117Status
AvailableResources
4 downloads available
Article-level resource view
NORWE Type
EE 16-SMD3/2k/14LD/2,54/CRE/35/8LDS2Order Code
N0082-117Status
on requestResources
4 downloads available
Article-level resource view
