ETD / EER Product Group

ETD Coil Formers Horizontal

Horizontal ETD Coil Formers

Horizontal ETD coil formers for switch-mode power supplies, converters and high-frequency transformer applications.

Request QuoteRequest Sample

Technical Group Data

Group Characteristics.

Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.

Series

ETD Horizontal

Orientation

Horizontal

Materials

PET SKYT.5220FR

RTI

+155°C

Pin System

Tin bronze, tin-plated solder pins or brass, tin-plated solder blades

Soldering Resistance

+350°C up to 2 seconds

Versions

ETD lr, ETD Standard with solder pins, ETD Standard with solder blades

Benefit

Flexible ETD platform for different manufacturing and assembly requirements

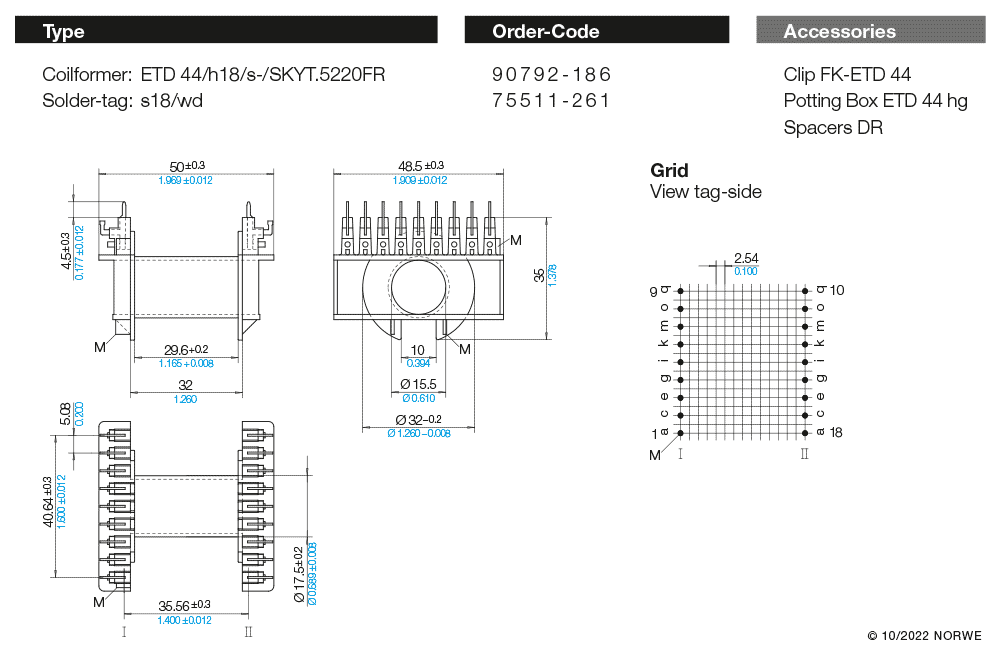

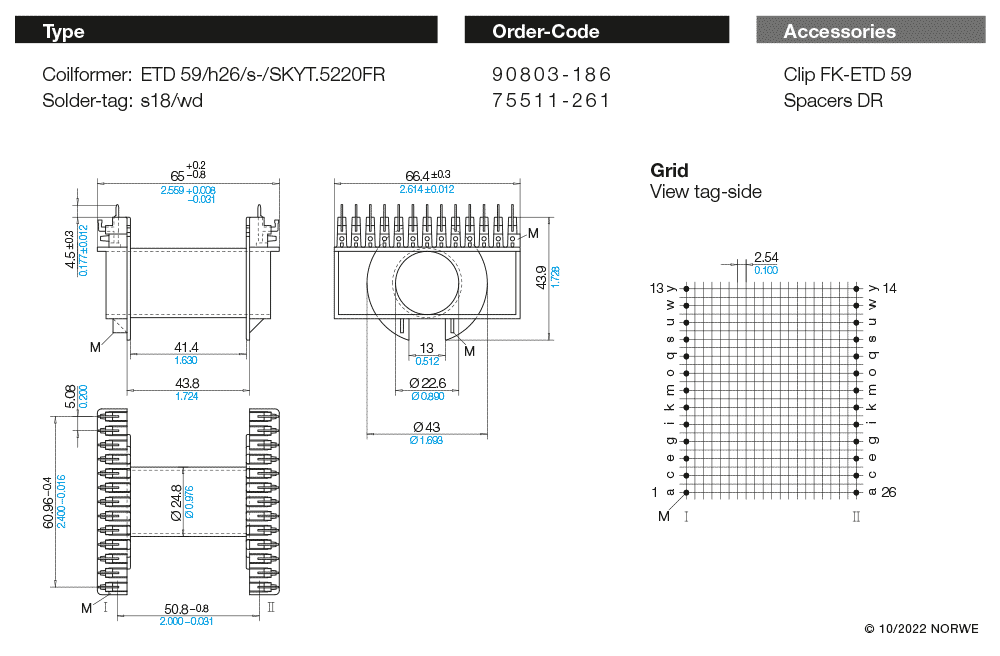

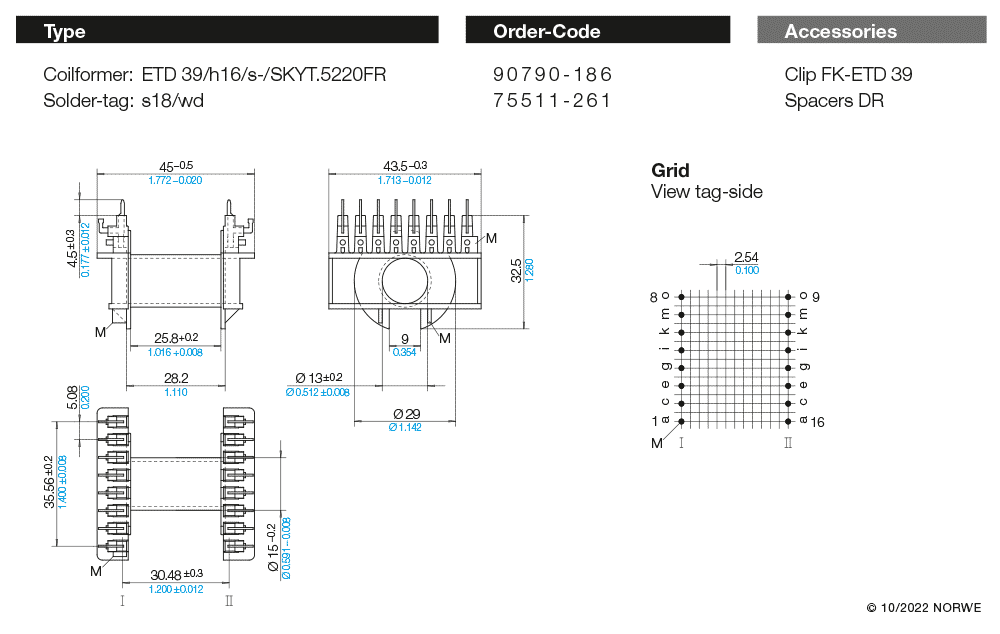

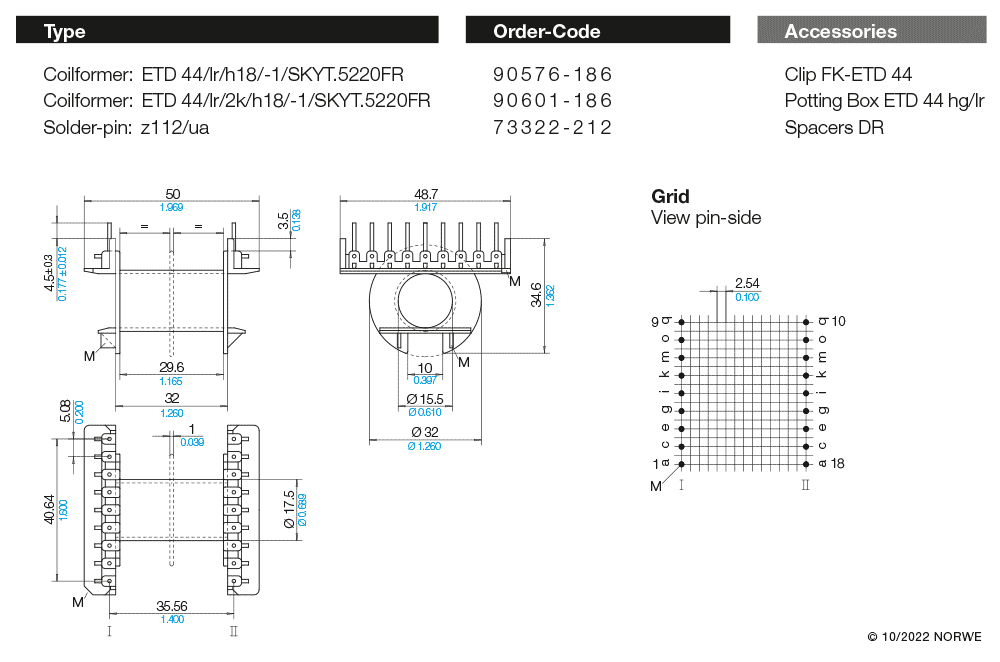

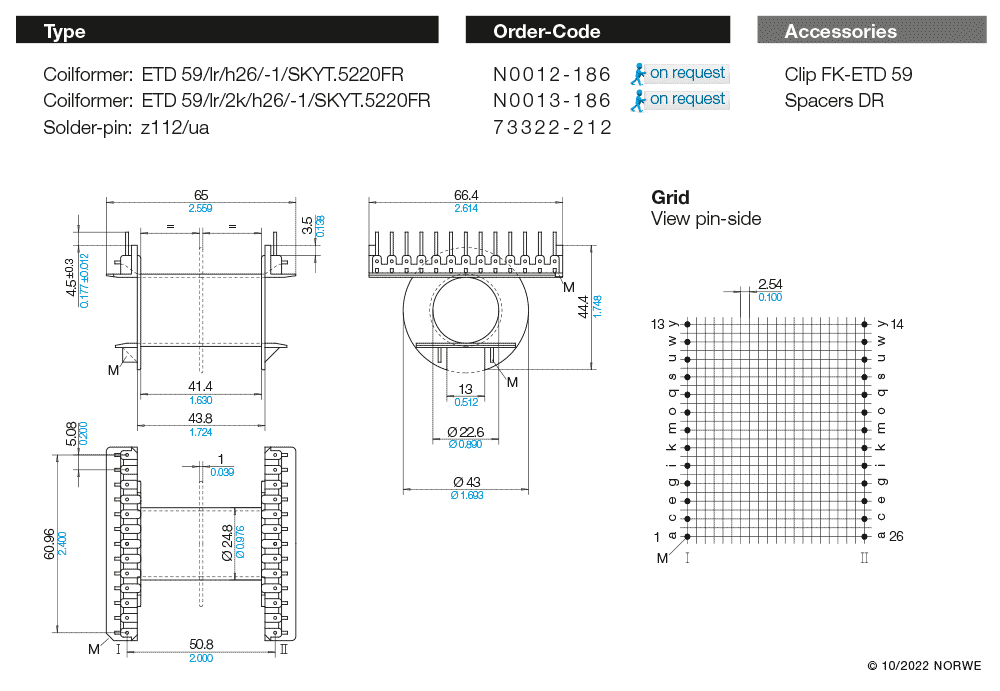

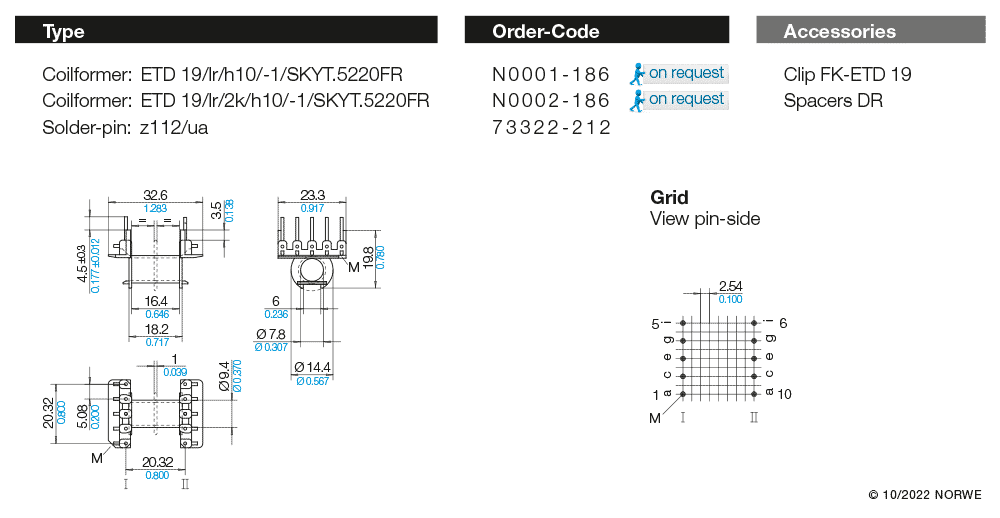

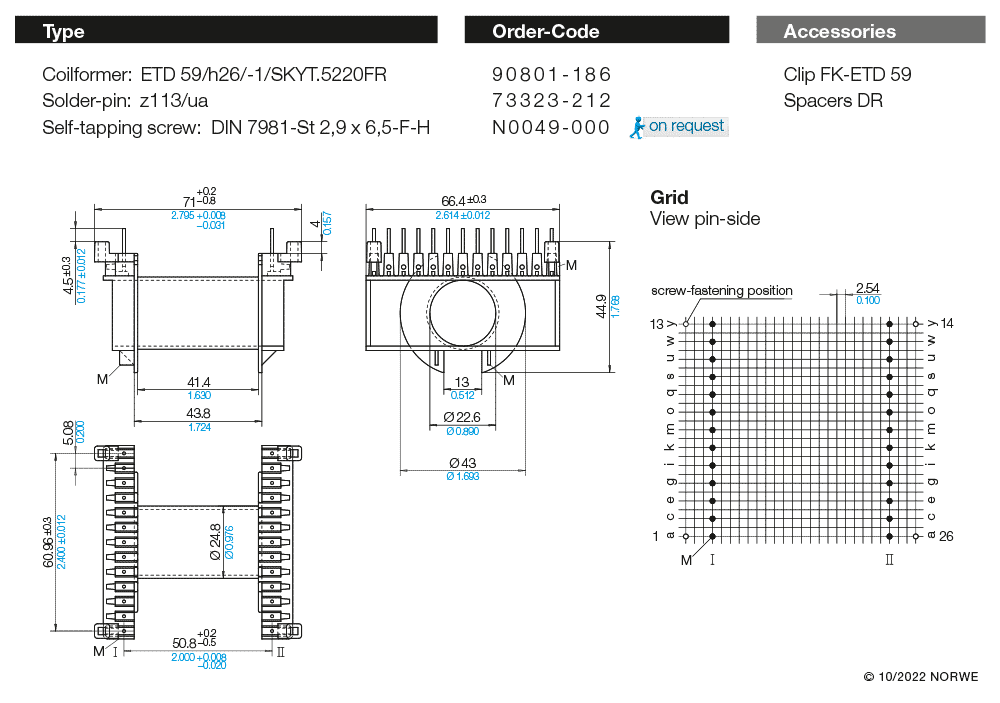

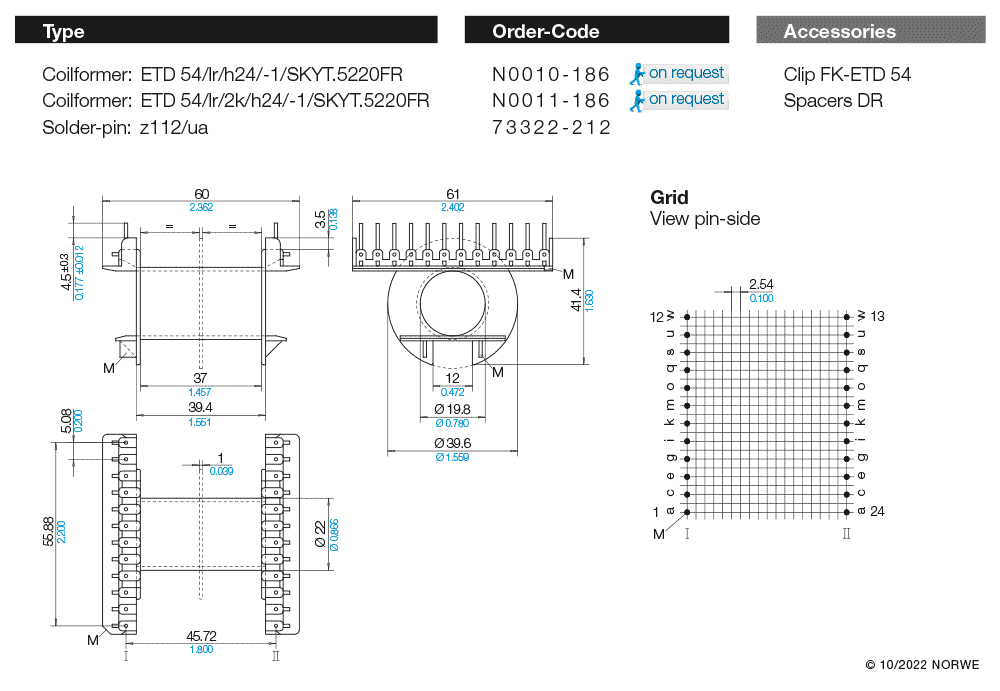

Technical product overview · 42 verified article entries

Article Level

Available NORWE Types.

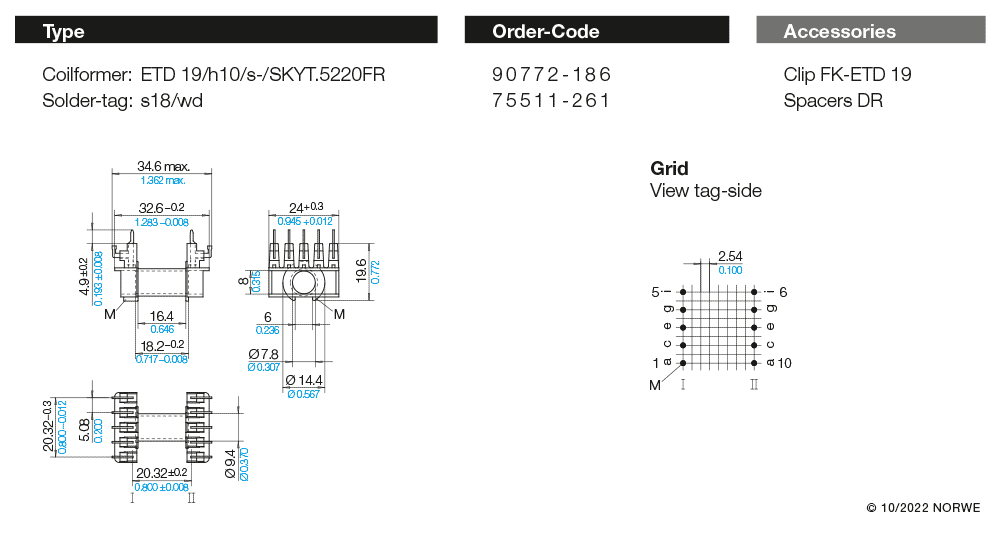

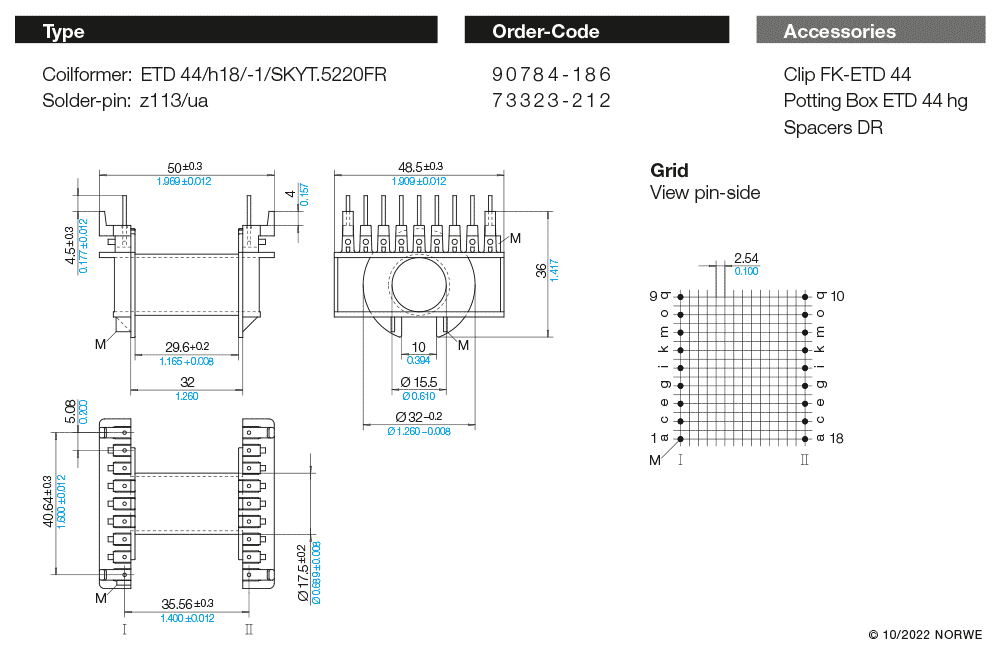

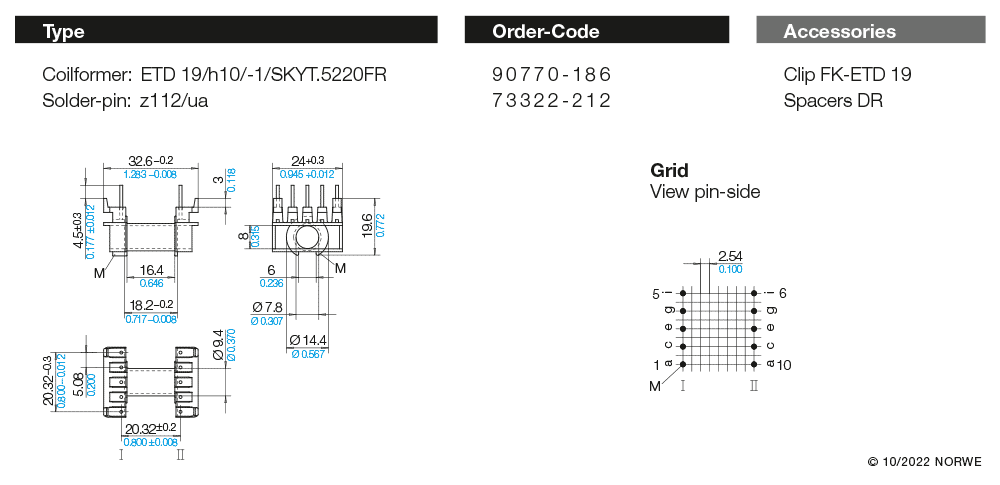

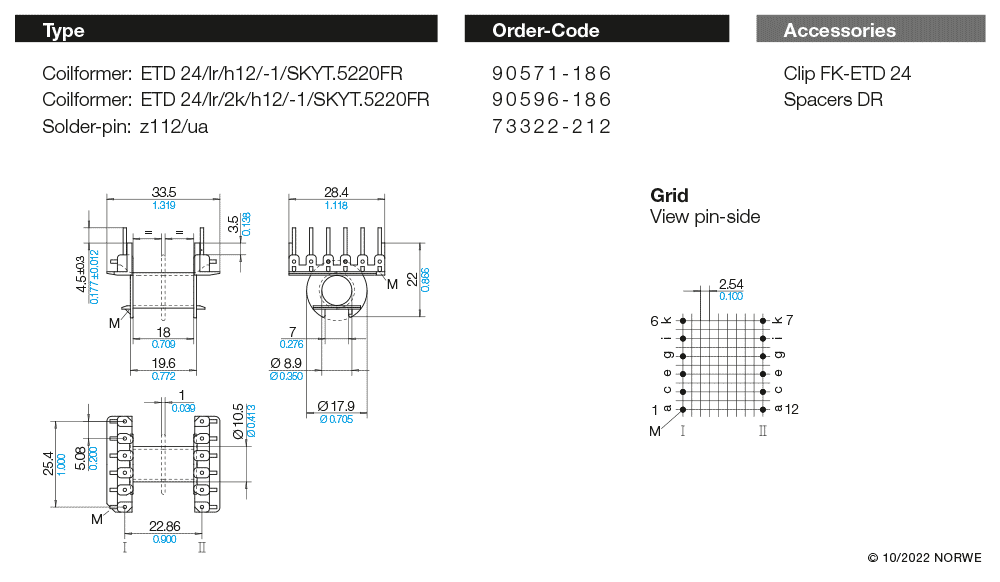

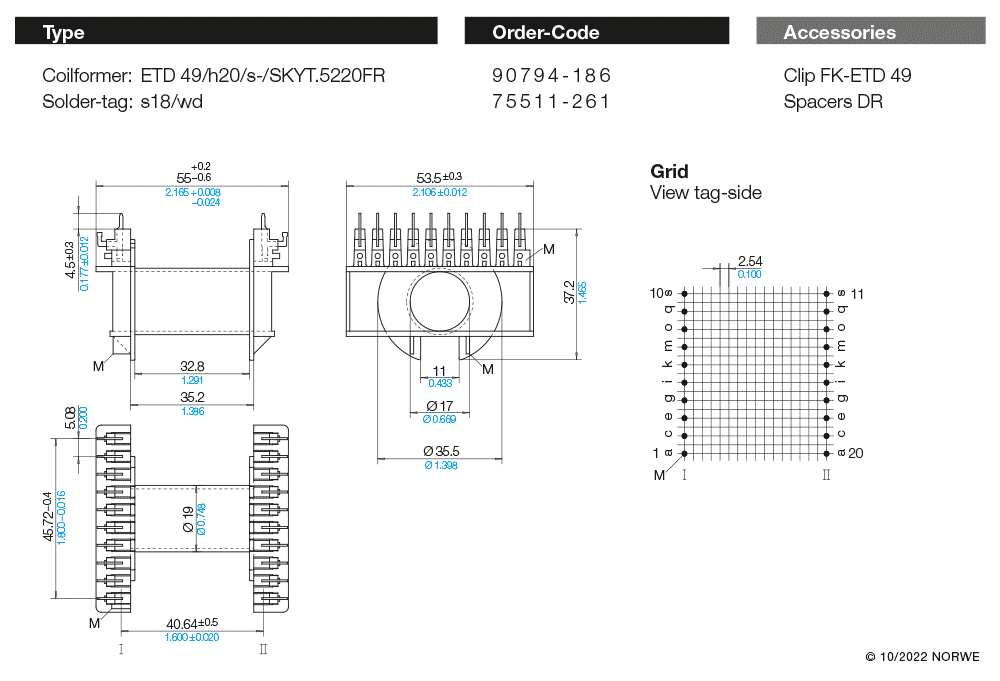

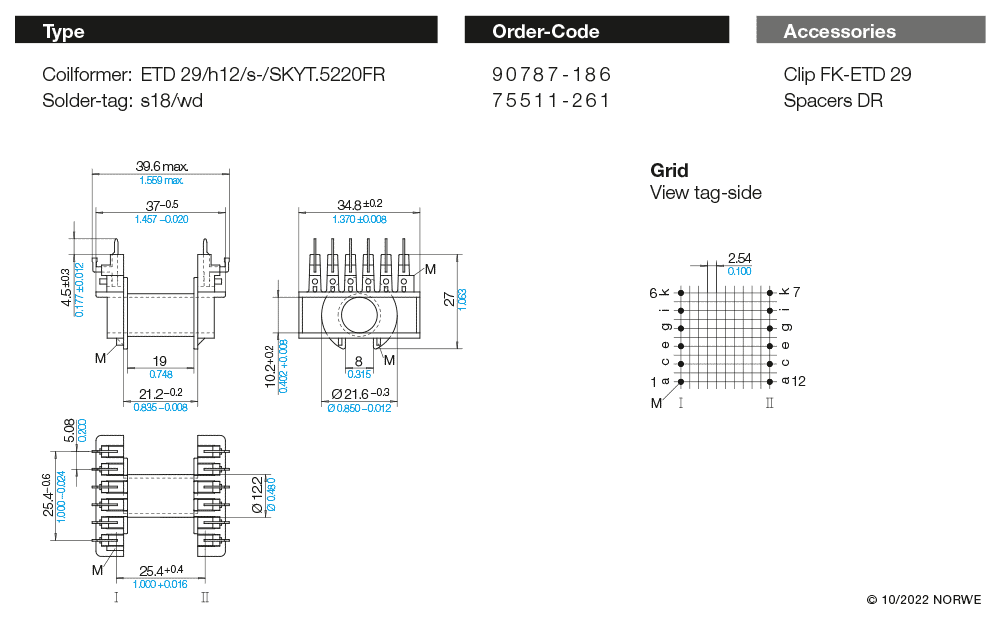

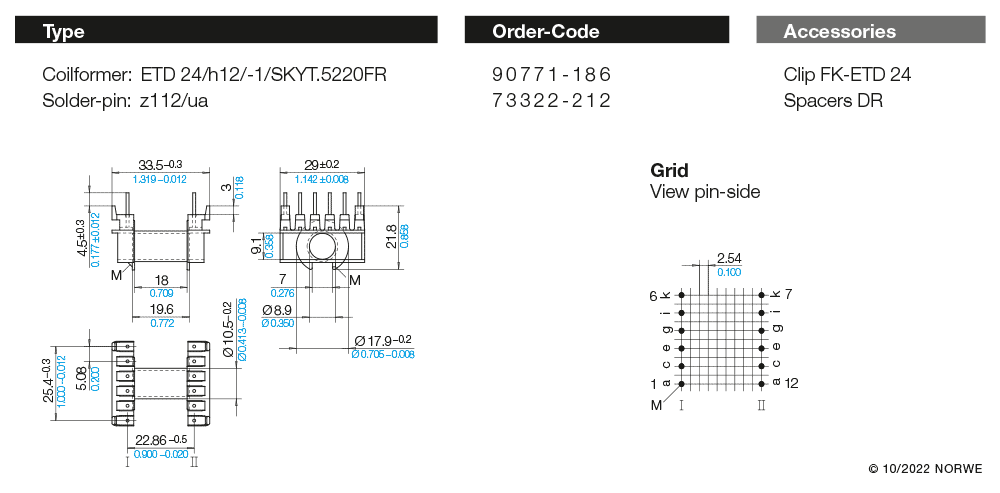

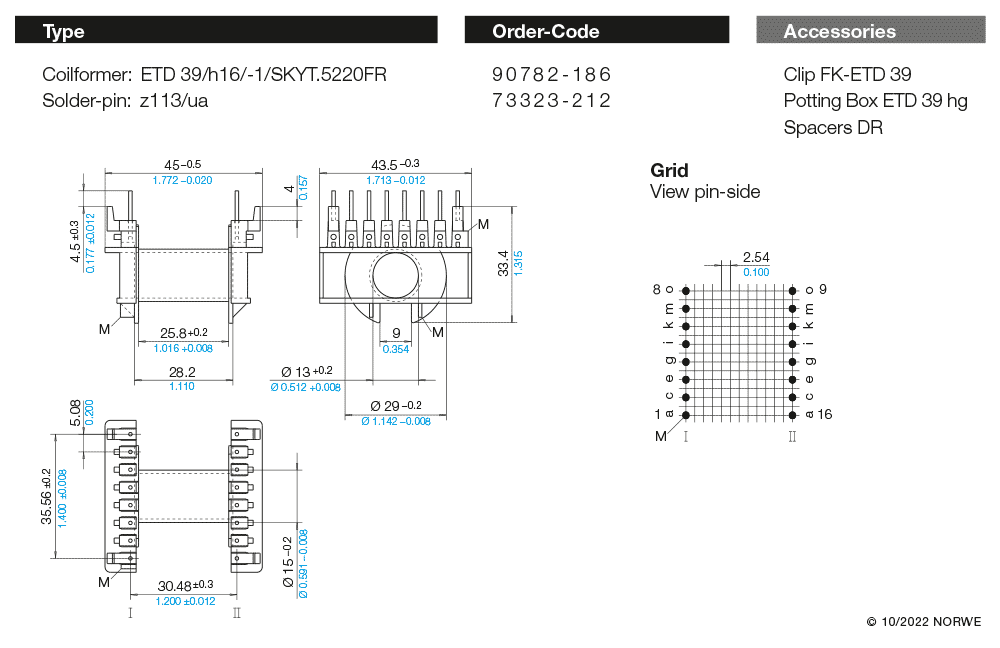

Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.

Need Support With This Product Group?

Talk to NORWE about ETD Coil Formers Horizontal, article selection, drawings, samples or quotation preparation.

Start Technical Inquiry
