EFD 15 - EFD 30 With z8 Solder Pins

EFD Coil Formers With z8 Solder Pins

EFD coil formers with stable z8 solder pins for radial wire termination and applications using thicker wires.

Request QuoteRequest Sample

Technical Group Data

Group Characteristics.

Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.

Core Range

EFD 15 - EFD 30

Pin Type

Straight press-fit z8 solder pins

Materials

PA66 A3X2G10

RTI

+115°C

Pin System

Tin bronze, tin-plated solder pins

Soldering Resistance

+350°C up to 2 seconds

Application

Low-profile transformers and compact assemblies with higher wire cross-sections

Benefit

Stable z8 solder pins allow the use of particularly thick wires while maintaining reliable radial termination

Technical product overview · 10 verified article entries

Article Level

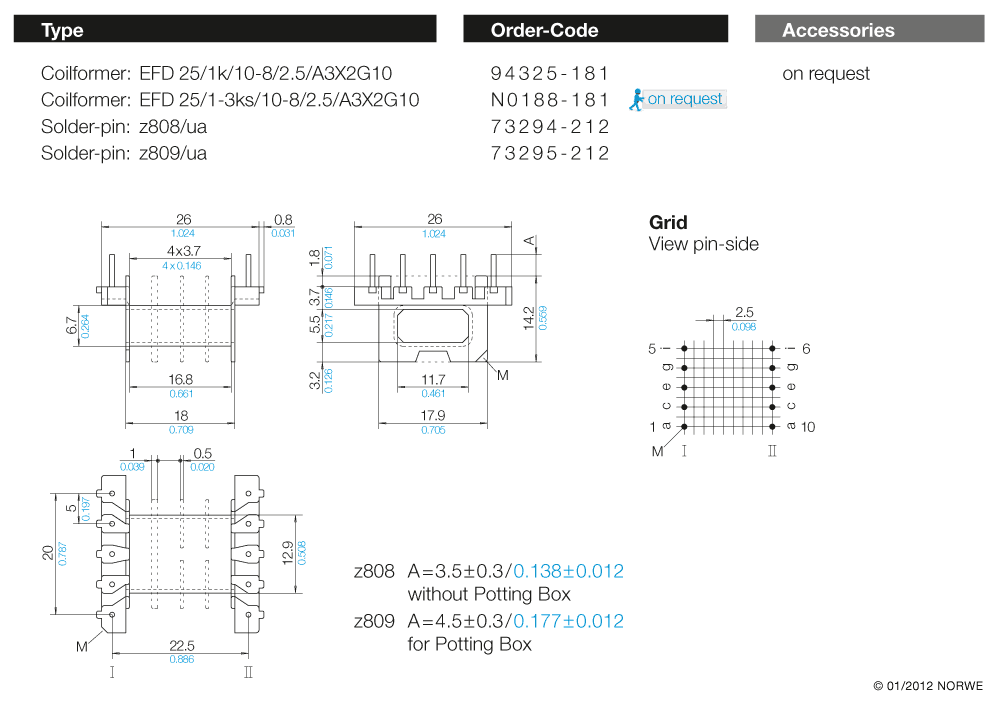

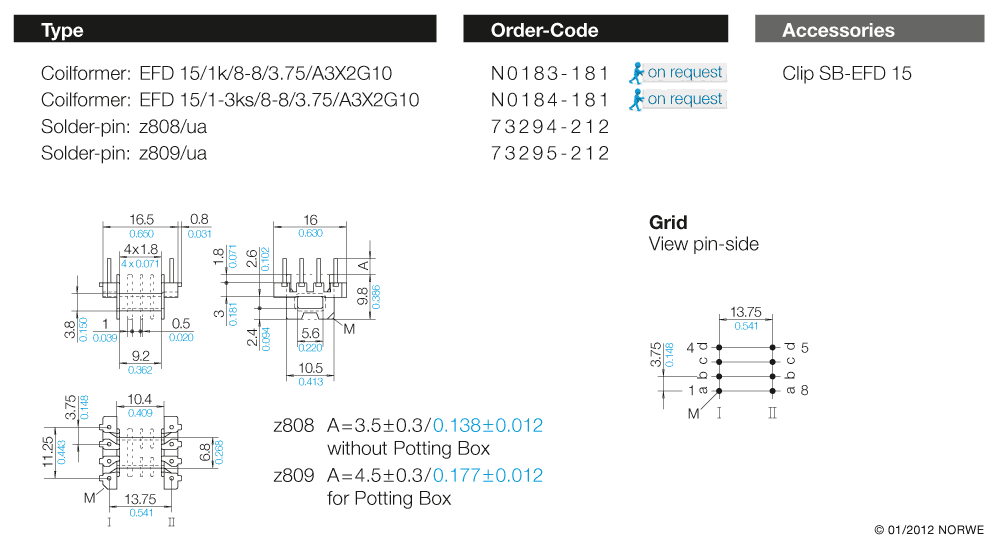

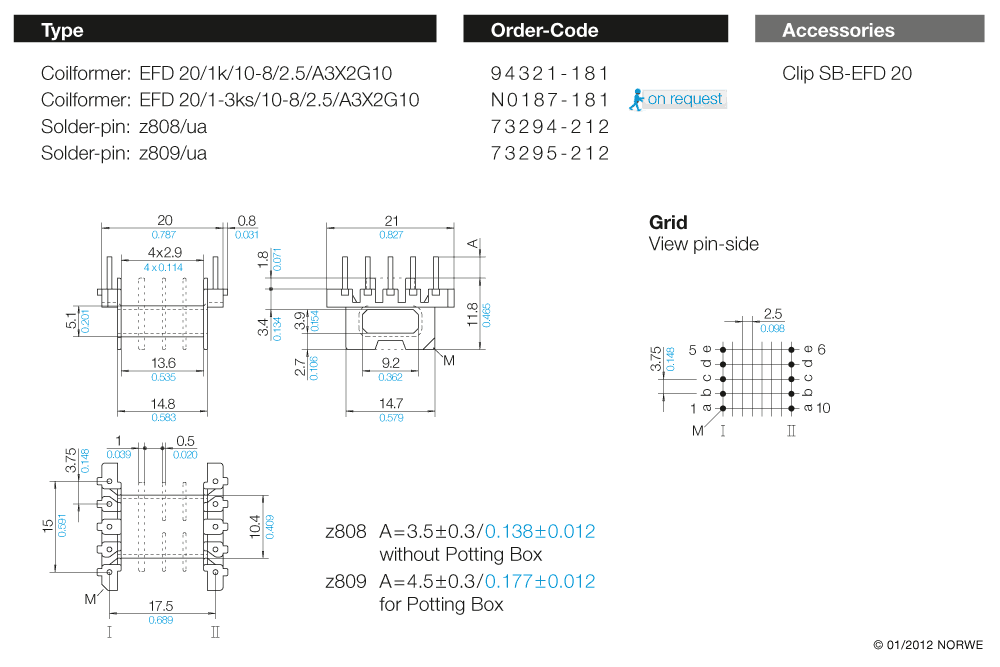

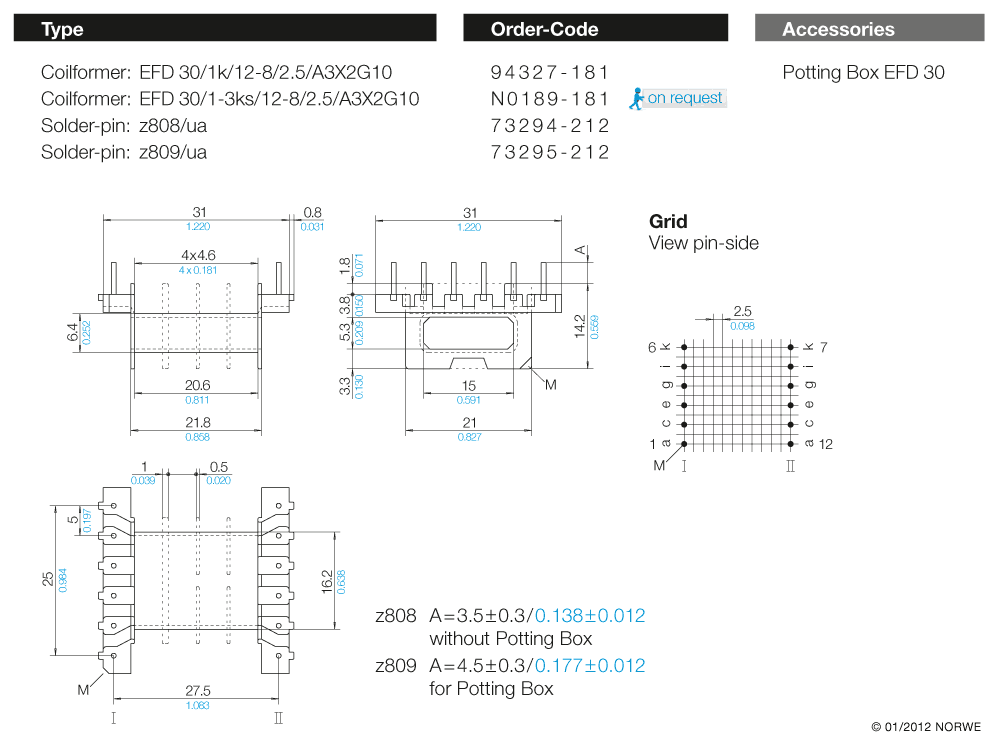

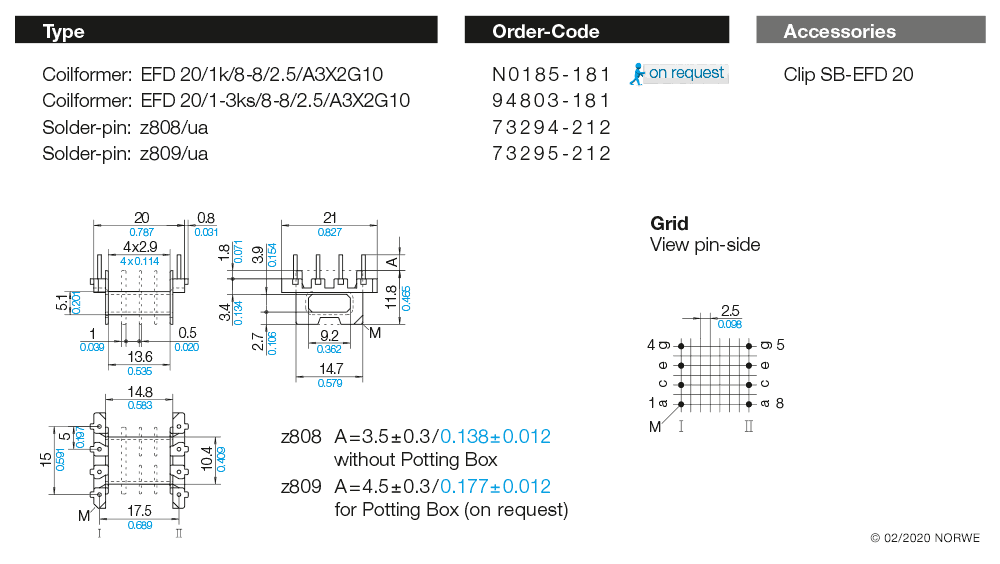

Available NORWE Types.

Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.
