Core Range
EFD 15 - EFD 30
EFD Product Group
EFD 15 - EFD 30 With z6 Solder Pins
EFD Coil Formers With z6 Solder Pins
EFD coil formers with straight press-fit z6 solder pins for radial wire termination and low-profile transformer applications.
Technical Group Data
Group Characteristics.
Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.
Pin Type
Straight press-fit z6 solder pins
Materials
PET rtg natural
RTI
+155°C
Pin System
Tin bronze, tin-plated solder pins
Soldering Resistance
300/350°C up to 2 seconds
Application
Low-profile transformers, compact power supplies and SMPS applications
Benefit
Supports radial wire termination with very short soldering times for thin wires
Article Level
Available NORWE Types.
Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.
PreviewNORWE TypeOrder CodeStatusResources
NORWE Type
EFD 15/1k/8-6/3,75/rtg nat.Order Code
94320-087Status
AvailableResources
3 downloads available
Article-level resource view
NORWE Type
EFD 15/1-3ks/8-6/3,75/rtg nat.Order Code
N0180-087Status
on requestResources
3 downloads available
Article-level resource view
NORWE Type

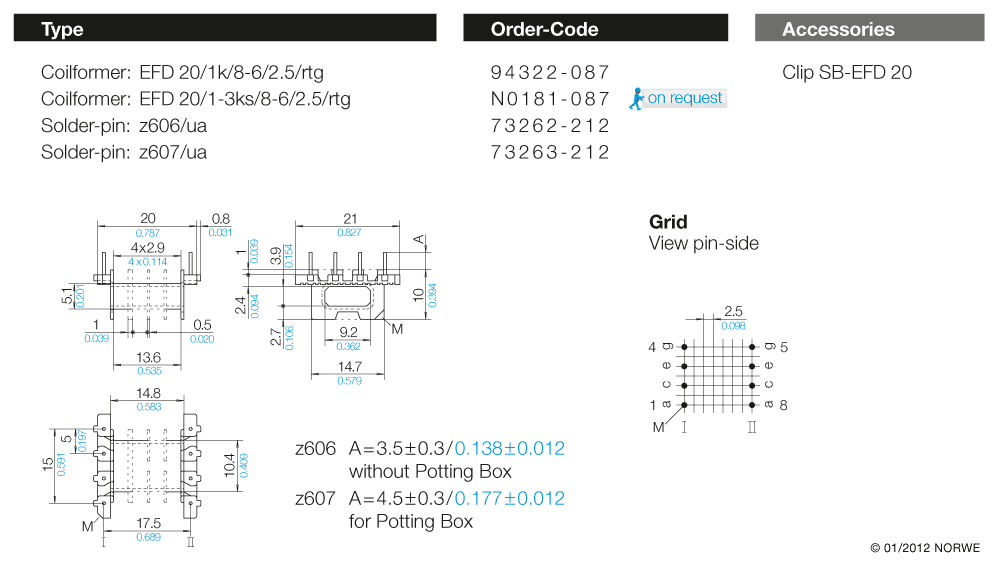

EFD 20/1k/8-6/2,5/rtg nat.Order Code
94322-087Status
AvailableResources
3 downloads available
Article-level resource view
NORWE Type
EFD 20/1-3ks/8-6/2,5/rtg nat.Order Code
N0181-087Status
on requestResources
3 downloads available
Article-level resource view
NORWE Type

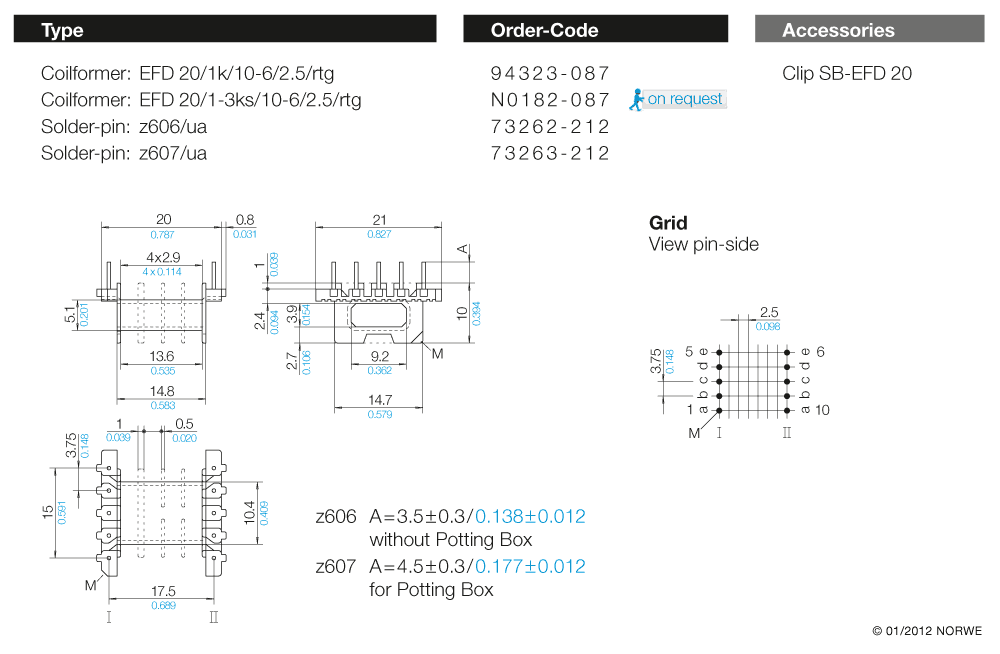

EFD 20/1k/10-6/2,5/rtg nat.Order Code
94323-087Status
AvailableResources
3 downloads available
Article-level resource view
NORWE Type
EFD 20/1-3ks/10-6/2,5/rtg nat.Order Code
N0182-087Status
on requestResources
3 downloads available
Article-level resource view
NORWE Type

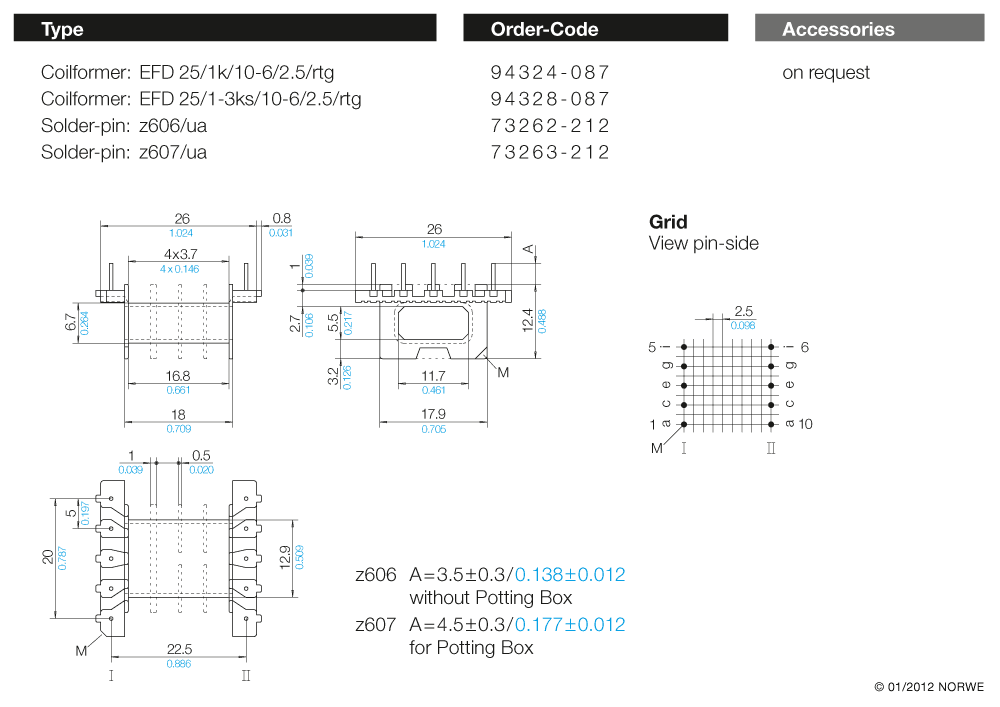

EFD 25/1k/10-6/2,5/rtg nat.Order Code
94324-087Status
AvailableResources
3 downloads available
Article-level resource view
NORWE Type
EFD 25/1-3ks/10-6/2,5/rtg nat.Order Code
94328-087Status
AvailableResources
3 downloads available
Article-level resource view
NORWE Type

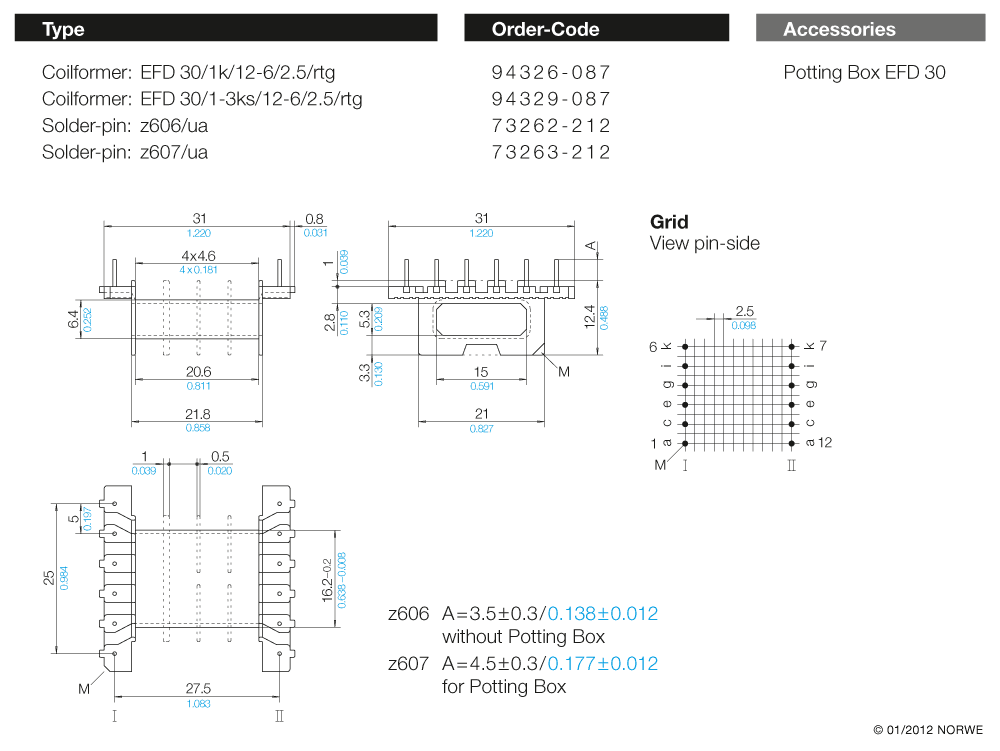

EFD 30/1k/12-6/2,5/rtg nat.Order Code
94326-087Status
AvailableResources
4 downloads available
Article-level resource view
NORWE Type
EFD 30/1-3ks/12-6/2,5/rtg nat.Order Code
94329-087Status
AvailableResources
4 downloads available
Article-level resource view
Need Support With This Product Group?
Talk to NORWE about EFD 15 - EFD 30 With z6 Solder Pins, article selection, drawings, samples or quotation preparation.
