Products/EE / M

EE / M Product Group

M 20 - M 55 Vertical

M-Core Coil Formers

Vertical M-core coil formers for transformer and power applications.

Request QuoteRequest Sample

Technical Group Data

Group Characteristics.

Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.

Core Range

M 20 - M 55

Orientation

Vertical

Materials

Material selection depending on variant and requirement

RTI

Depending on selected material

Pin System

Pins or solder blades depending on configuration

Soldering Resistance

+350°C up to 2 seconds depending on configuration

Application

Transformer and power applications

Benefit

Vertical M-core assembly for demanding transformer designs

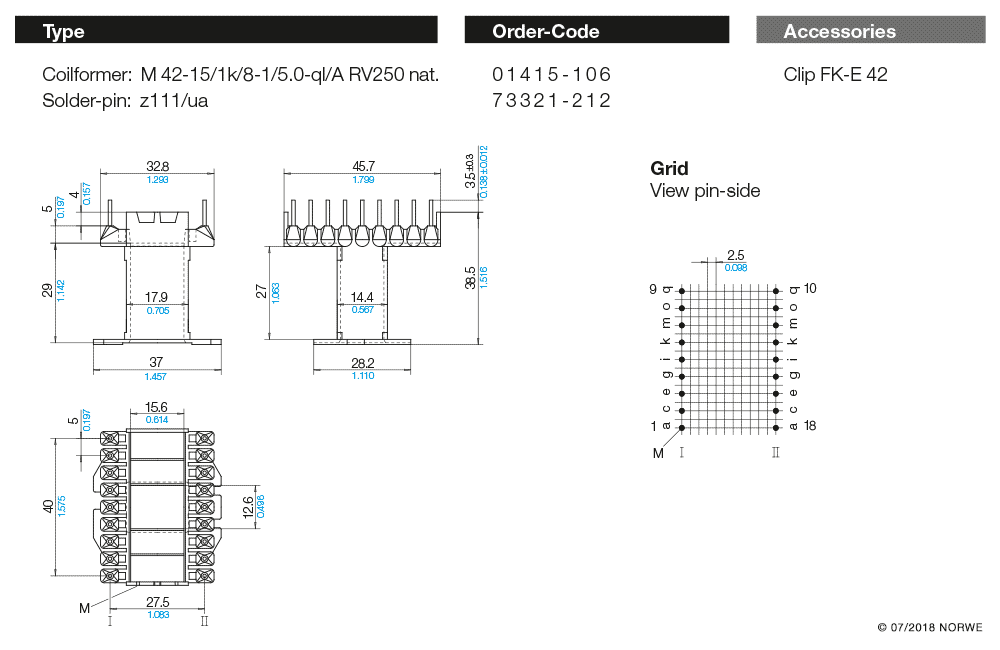

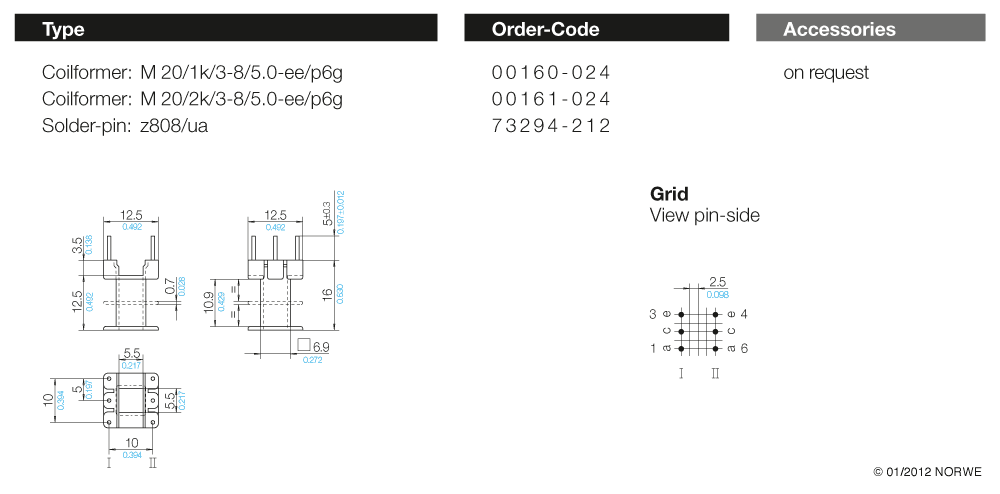

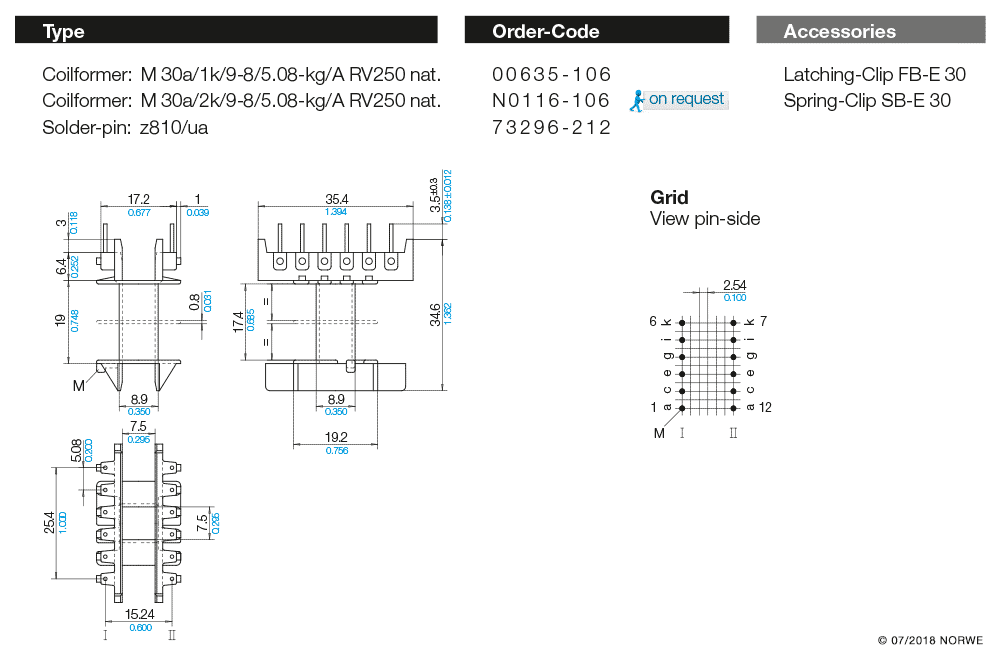

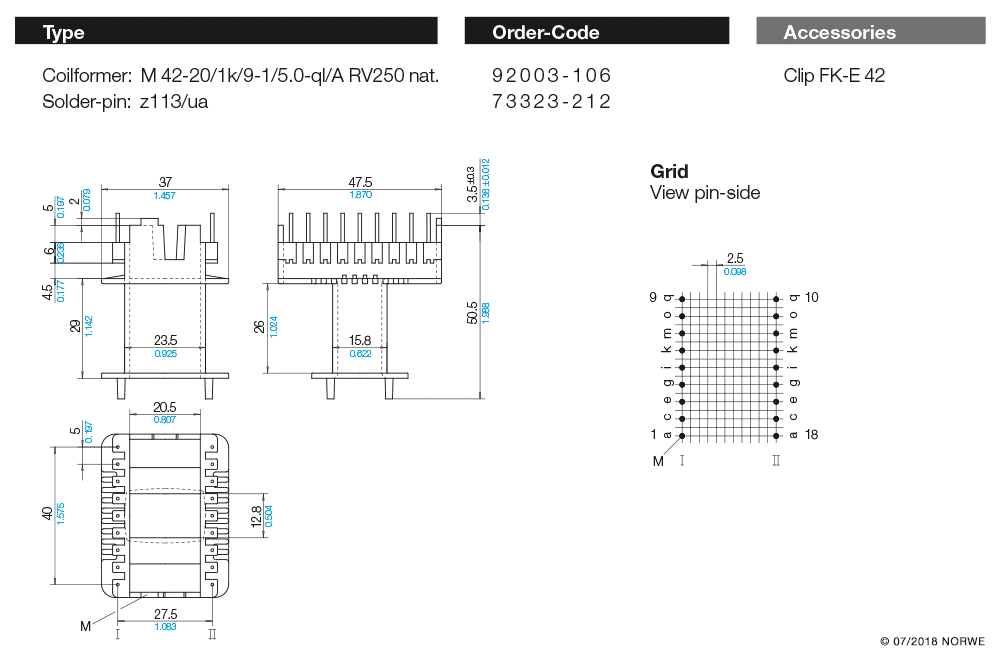

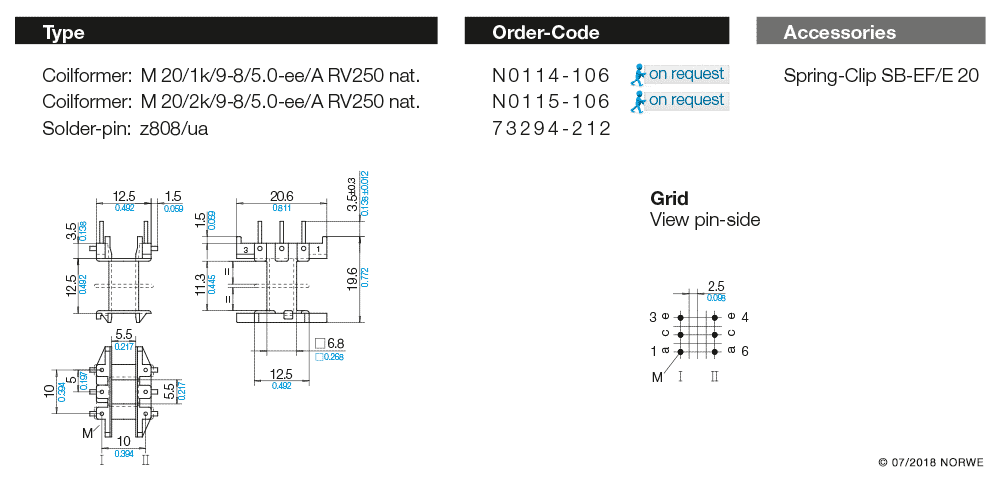

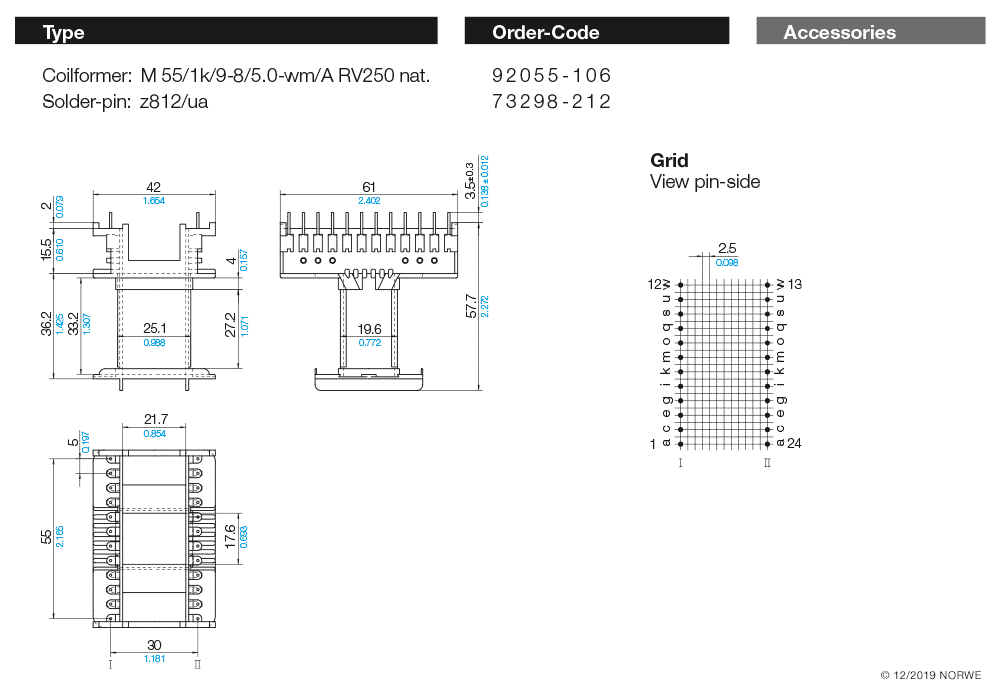

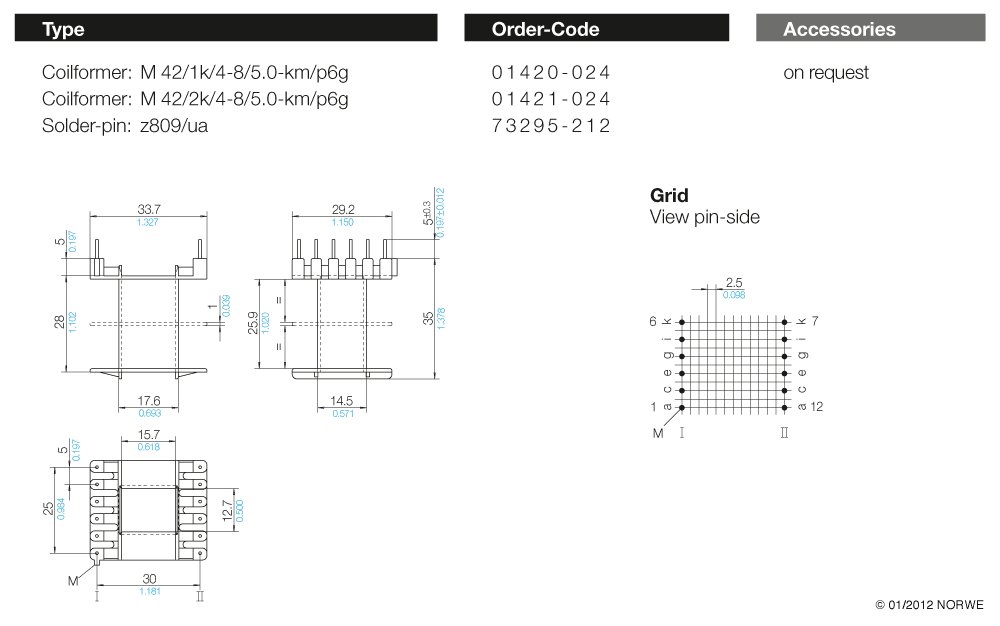

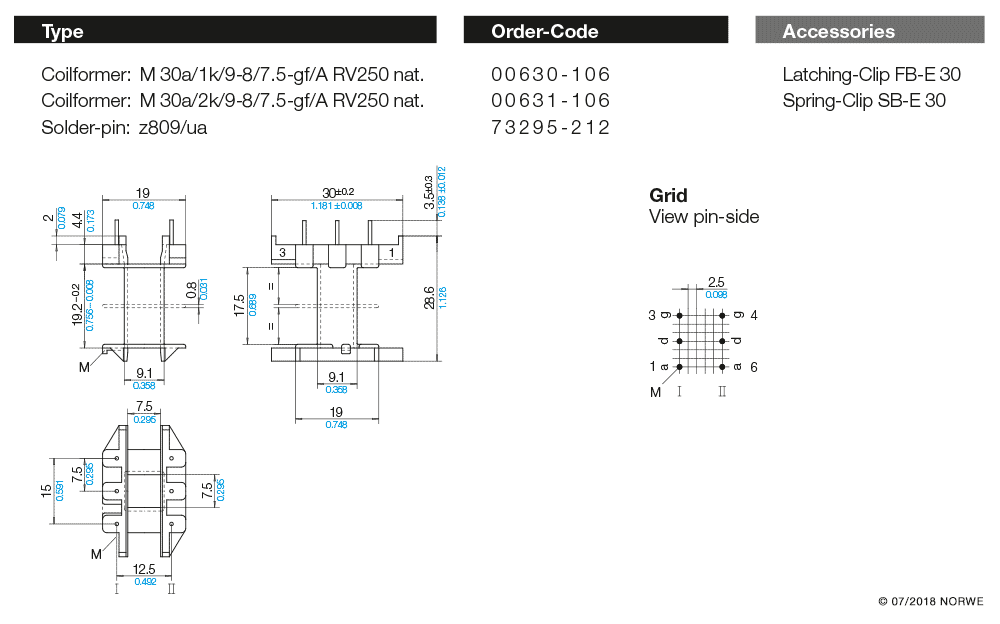

Technical product overview · 15 verified article entries

Article Level

Available NORWE Types.

Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.

Need Support With This Product Group?

Talk to NORWE about M 20 - M 55 Vertical, article selection, drawings, samples or quotation preparation.

Start Technical Inquiry
