Products/EE / M

EE / M Product Group

EE 12.6 - EE 25 Vertical / Extended Creepage Distance

Vertical EE Coil Formers

Vertical EE versions with extended creepage distance for demanding insulation requirements.

Request QuoteRequest Sample

Technical Group Data

Group Characteristics.

Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.

Core Range

EE 12.6 - EE 25

Orientation

Vertical

Materials

PA66 A RV250 natural

RTI

+100°C

Feature

Extended creepage distance

Soldering Resistance

+350°C up to 2 seconds

Application

Applications requiring increased insulation distance

Benefit

Improved insulation performance in vertical designs

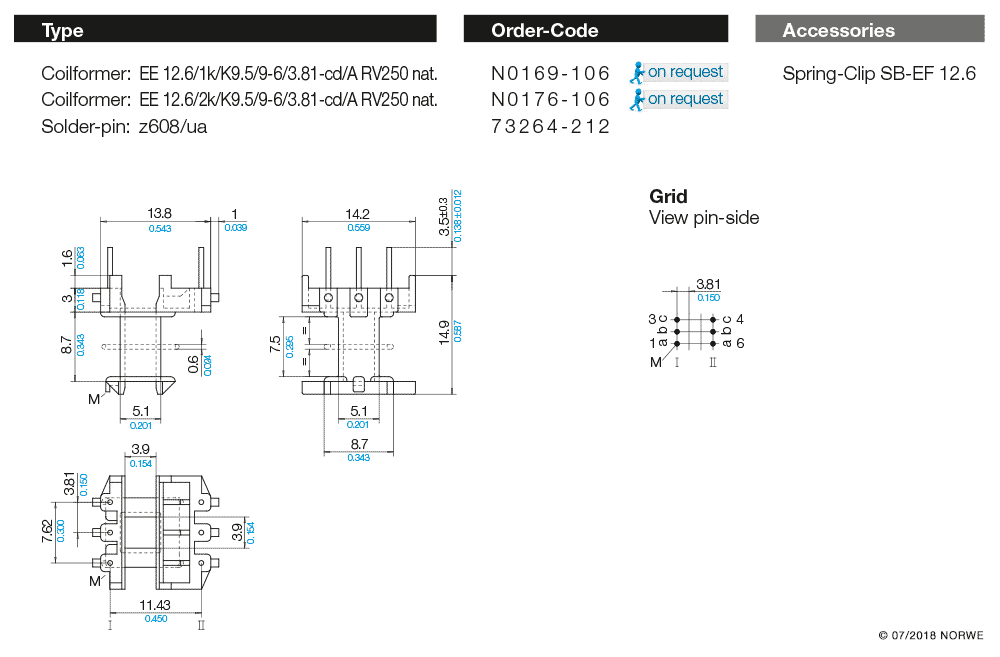

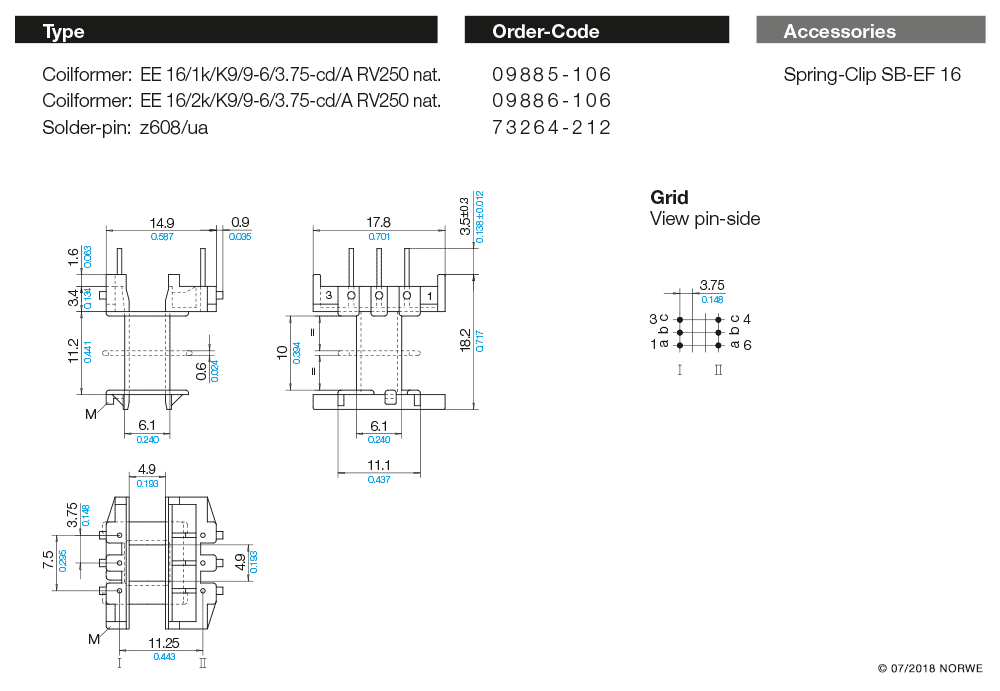

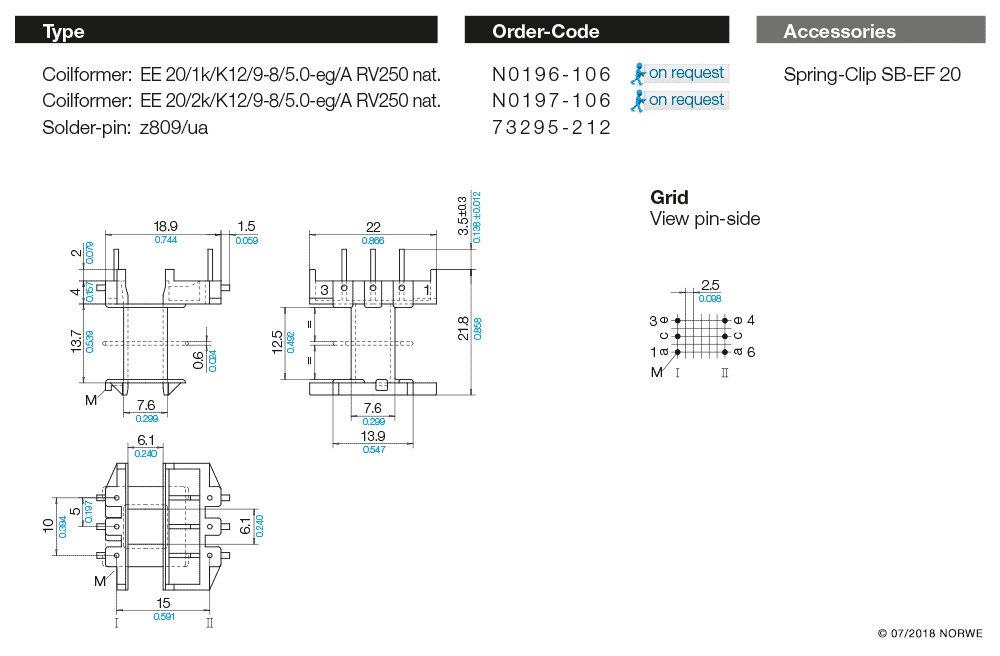

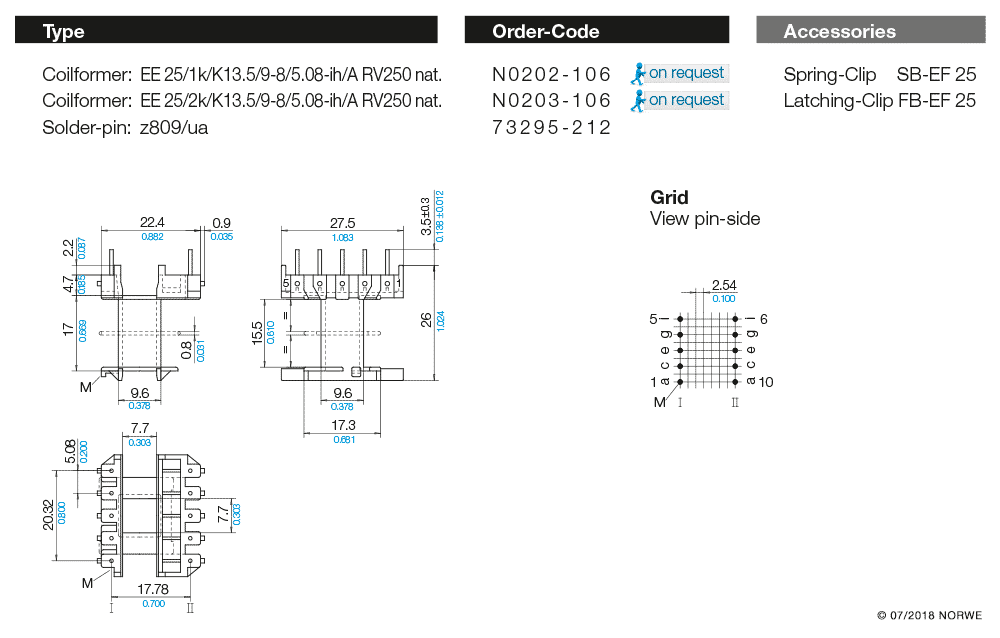

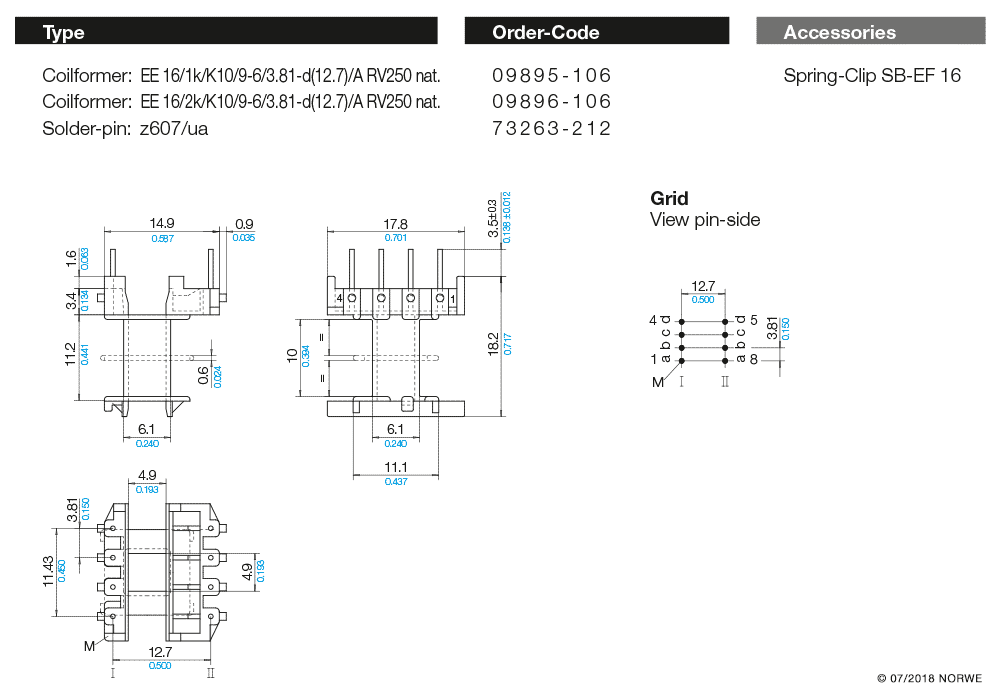

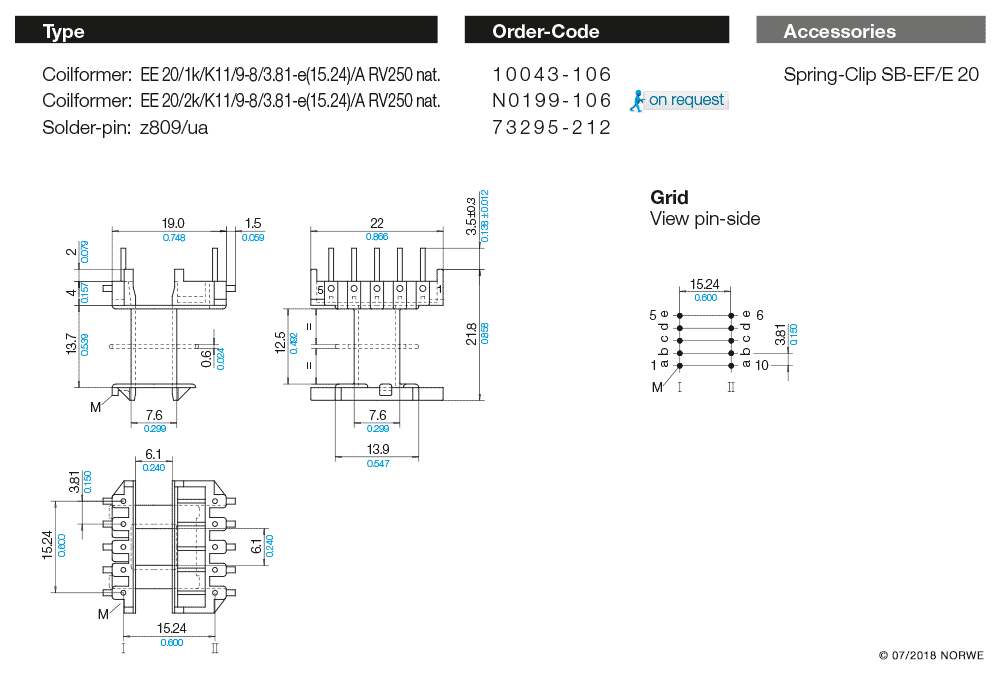

Technical product overview · 12 verified article entries

Article Level

Available NORWE Types.

Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.

Need Support With This Product Group?

Talk to NORWE about EE 12.6 - EE 25 Vertical / Extended Creepage Distance, article selection, drawings, samples or quotation preparation.

Start Technical Inquiry
