Function
Mechanical clamping
EE / M Product Group
Clamping Brackets
Assembly Component
Clamping brackets for secure mechanical integration of EE/M coil former assemblies.
Technical Group Data
Group Characteristics.
Technical characteristics, article variants and verified product resources are consolidated at group level for fast engineering and procurement access.
Application
Assembly and fixation of core sets and coil formers
Material
Steel
Configuration
One clamping bracket per core set and coil former
Benefit
Stable clamping pressure is maintained even with temperature changes
Article Level
Available NORWE Types.
Select the required NORWE type by order code. Verified technical resources are linked to the article context so drawings, samples and quotations can be handled without losing product identity.
PreviewNORWE TypeOrder CodeStatusResources
NORWE Type

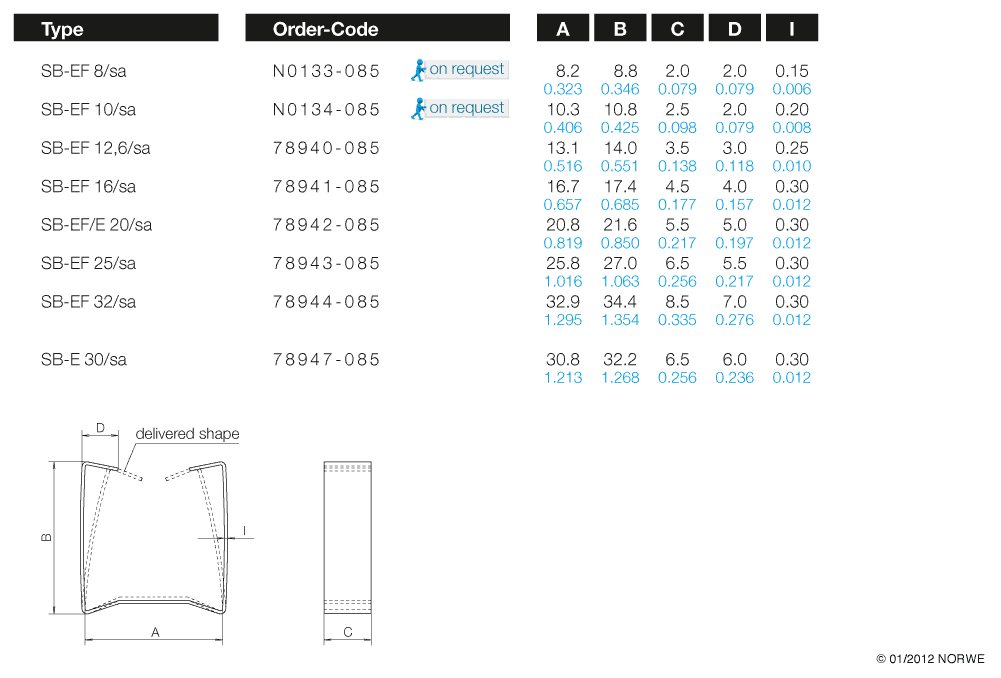

SB-EF 8/saOrder Code
N0133-085Status
on requestResources
2 downloads available
Article-level resource view
NORWE Type
SB-EF 10/saOrder Code
N0134-085Status
on requestResources
2 downloads available
Article-level resource view
NORWE Type
SB-EF 12,6/saOrder Code
78940-085Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type
SB-EF 16/saOrder Code
78941-085Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type
SB-EF/E 20/saOrder Code
78942-085Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type
SB-EF 25/saOrder Code
78943-085Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type
SB-EF 32/saOrder Code
78944-085Status
AvailableResources
2 downloads available
Article-level resource view
NORWE Type
SB-E 30/saOrder Code
78947-085Status
AvailableResources
2 downloads available
Article-level resource view
